Getting Started with OpenVCAD

This tutorial will guide you through designing basic 3D objects using OpenVCAD. We will cover how to create objects with both single and multiple materials using Python and the pyvcad library. All code is accessible in the examples directory.

Note

This guide assumes you have OpenVCAD installed. See the Installation page if you haven’t set things up yet.

Hello World

Let’s start with the simplest possible OpenVCAD script. Going line by line:

  • import pyvcad as pv imports the pyvcad library with the alias pv.

  • import pyvcad_rendering as viz imports the rendering module for visualization.

  • pv.default_materials loads material configurations that map material names and colors for visualization, converting named materials like “red” or “blue” into integer IDs that OpenVCAD understands.

  • pv.RectPrism(...) creates a 10mm cube centered at the origin with the “red” material.

import pyvcad as pv
import pyvcad_rendering as viz

materials = pv.default_materials

center_point = pv.Vec3(0, 0, 0)
dimensions = pv.Vec3(10, 10, 10)

root = pv.RectPrism(center_point, dimensions, materials.id("red"))

viz.Render(root, materials)

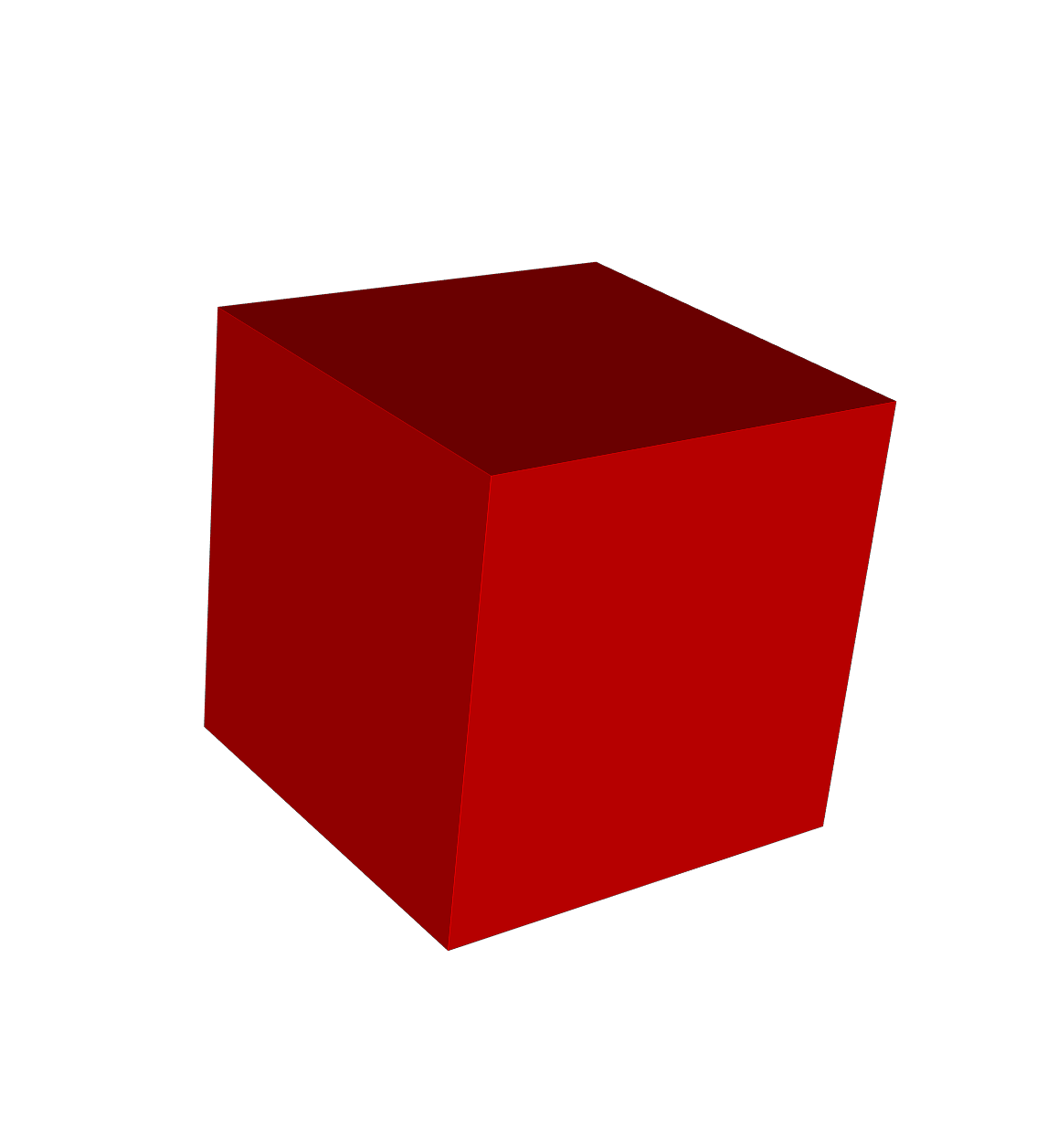

OpenVCAD starter example render

Composition

OpenVCAD constructs objects using tree structures based on Constructive Solid Geometry (CSG). Nodes are classified by how many children they accept:

  • Leaf nodes define basic geometry (no children).

  • Unary nodes accept one child (.set_child()).

  • Binary nodes accept exactly two children (.set_left() / .set_right()).

  • N-ary nodes accept many children (.add_child()).

Union

Two overlapping spheres combined into a single object:

import pyvcad as pv
import pyvcad_rendering as viz

materials = pv.default_materials

radius = 5
left_sphere  = pv.Sphere(pv.Vec3(-radius/2, 0, 0), radius, materials.id("red"))
right_sphere = pv.Sphere(pv.Vec3(+radius/2, 0, 0), radius, materials.id("red"))

root = pv.Union()
root.add_child(left_sphere)
root.add_child(right_sphere)

viz.Render(root, materials)

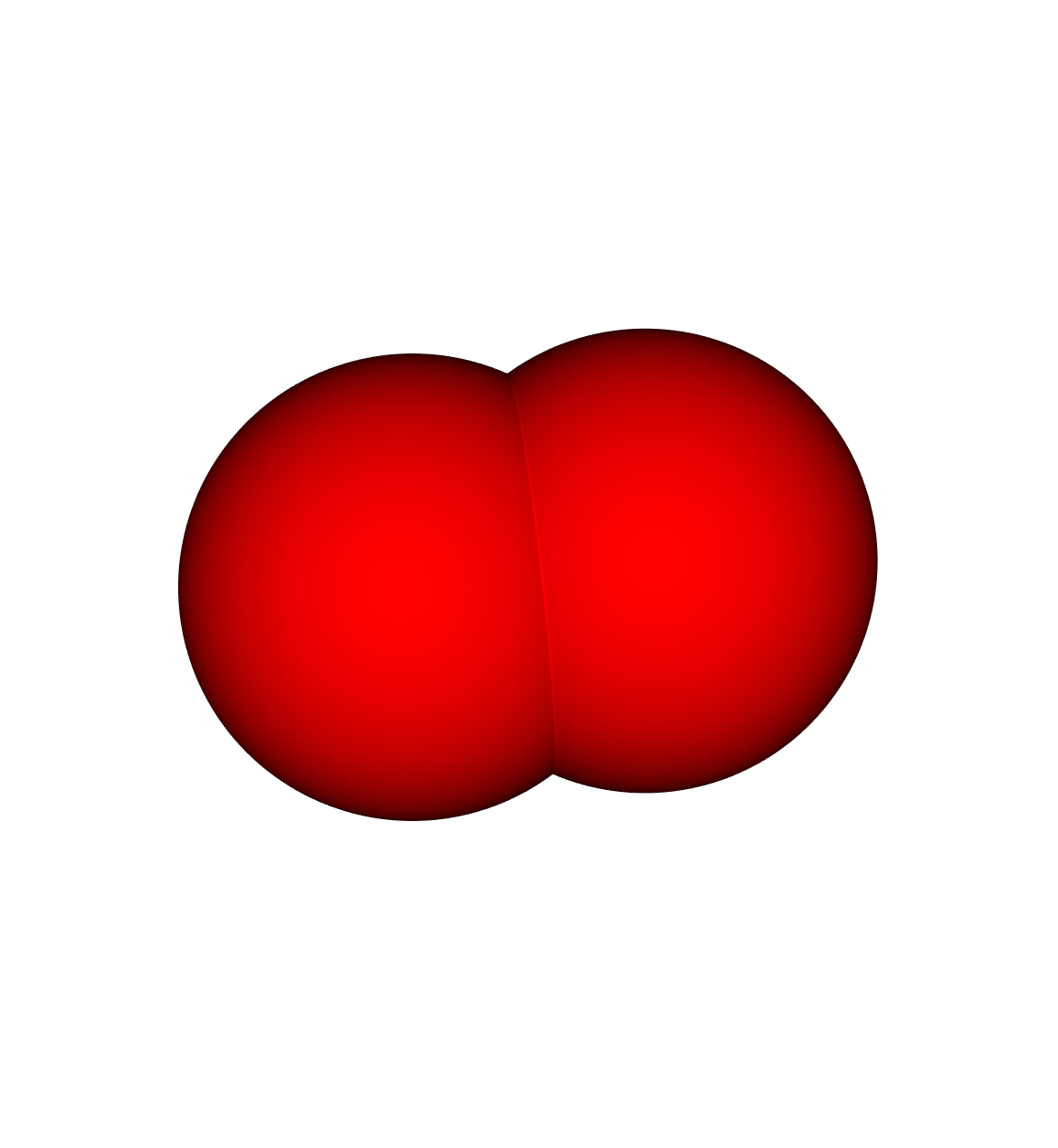

Union example render

Intersection

The same overlapping spheres, intersected to keep only the shared volume:

import pyvcad as pv
import pyvcad_rendering as viz

materials = pv.default_materials

radius = 5
left_sphere  = pv.Sphere(pv.Vec3(-radius/2, 0, 0), radius, materials.id("red"))
right_sphere = pv.Sphere(pv.Vec3(+radius/2, 0, 0), radius, materials.id("red"))

root = pv.Intersection(False, [left_sphere, right_sphere])

viz.Render(root, materials)

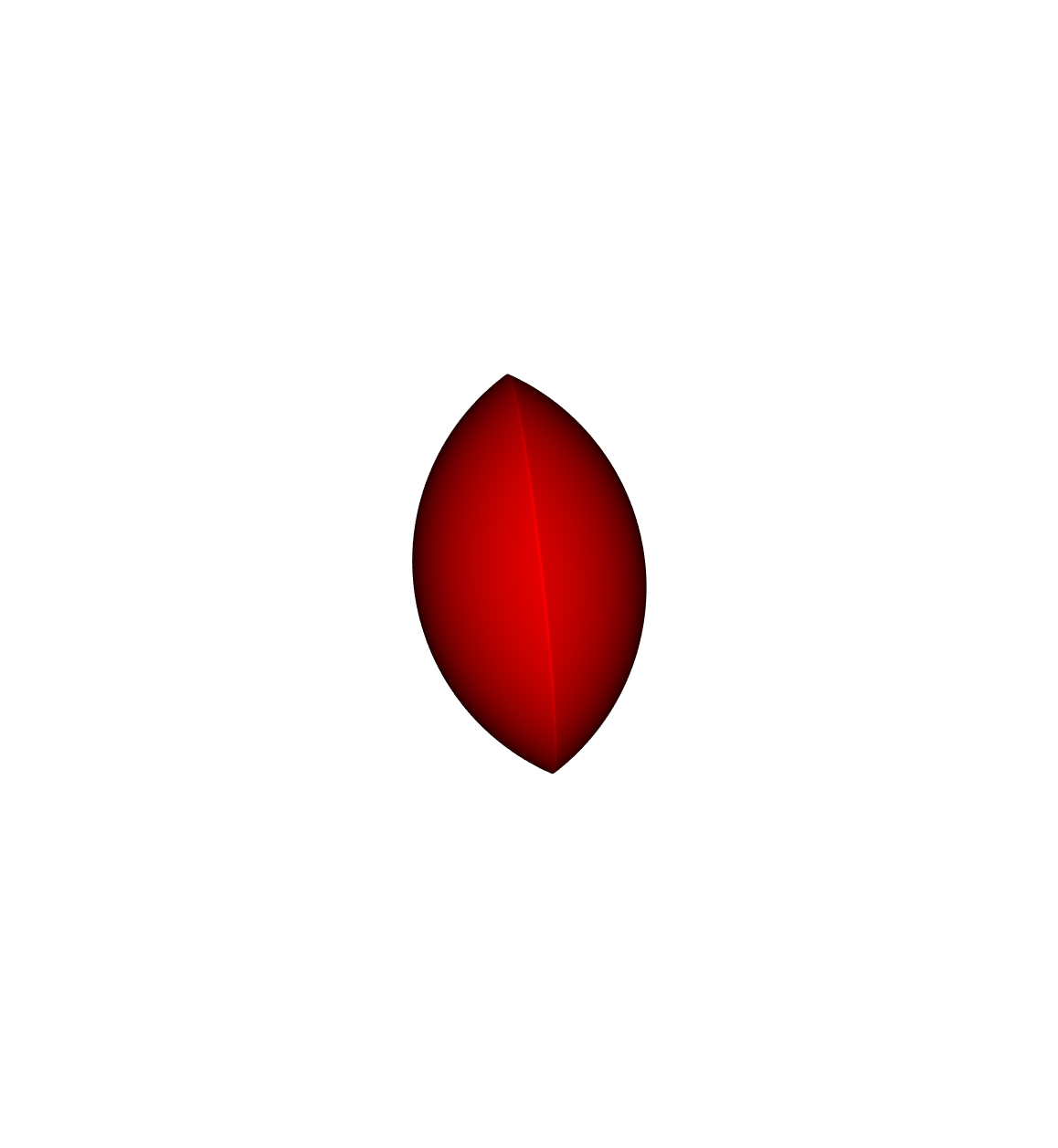

Intersection example render

Difference

Subtract the right sphere from the left:

import pyvcad as pv
import pyvcad_rendering as viz

materials = pv.default_materials

radius = 5
left_sphere  = pv.Sphere(pv.Vec3(-radius/2, 0, 0), radius, materials.id("red"))
right_sphere = pv.Sphere(pv.Vec3(+radius/2, 0, 0), radius, materials.id("red"))

root = pv.Difference(left_sphere, right_sphere)

viz.Render(root, materials)

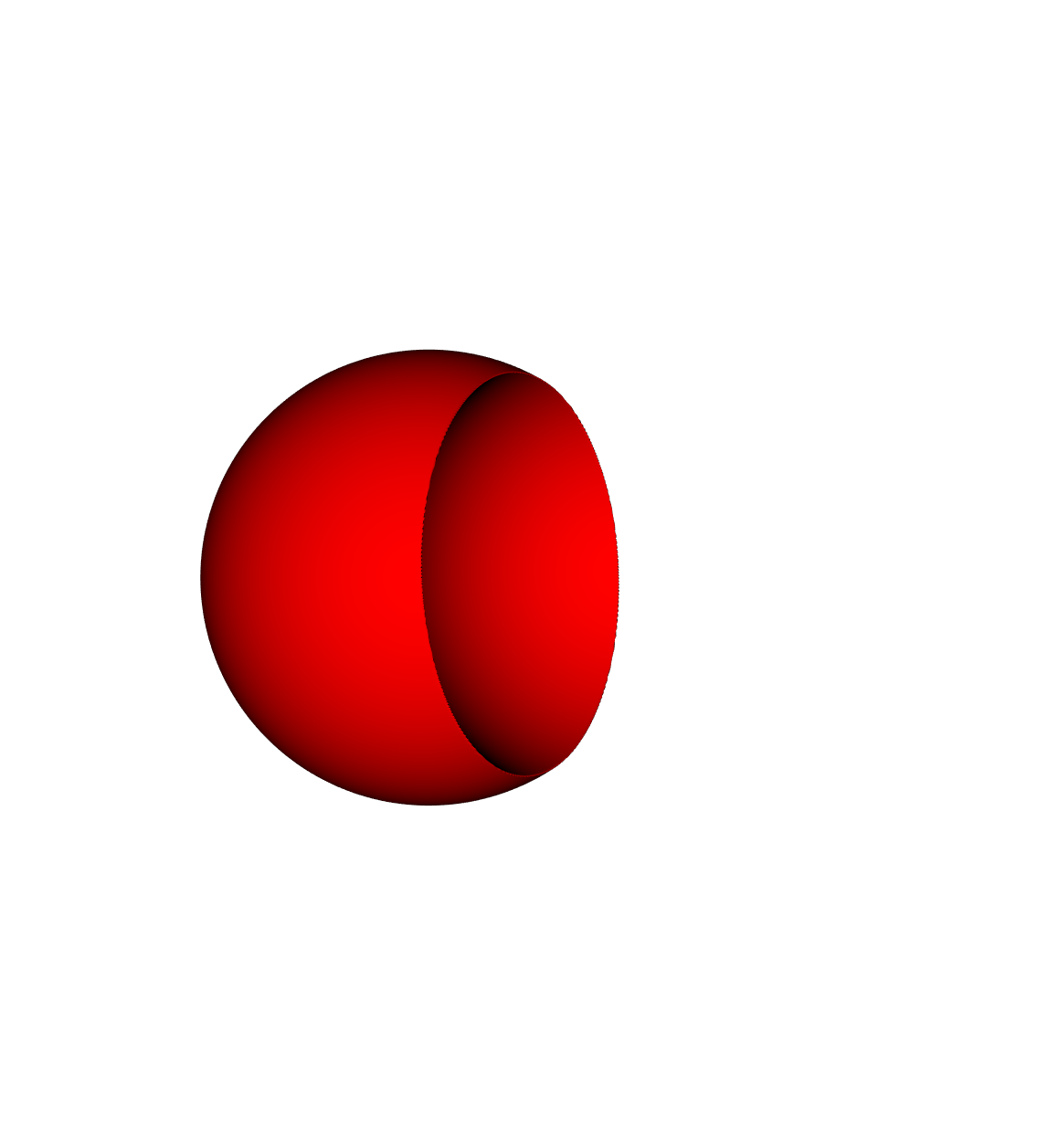

Difference example render

Complex CSG Example

Combining multiple operations to create a rounded cube with cylindrical holes:

import pyvcad as pv
import pyvcad_rendering as viz

materials = pv.default_materials

base_cylinder = pv.Cylinder(pv.Vec3(0,0,0), 2, 9, materials.id("gray"))

root = pv.Difference(
    pv.Intersection(False, [
        pv.RectPrism(pv.Vec3(0,0,0), pv.Vec3(8,8,8), materials.id("gray")),
        pv.Sphere(pv.Vec3(0,0,0), 5.5, materials.id("gray"))
    ]),
    pv.Union(False, [
        base_cylinder,
        pv.Rotate(90,0,0, pv.Vec3(0,0,0), base_cylinder),
        pv.Rotate(0,90,0, pv.Vec3(0,0,0), base_cylinder)
    ])
)

viz.Render(root, materials)

CSG composition example render

Multi-material Design

OpenVCAD’s true power lies in its multi-material design capabilities. Using the same tree structure, we can define objects with multiple materials.

Basic Multi-material

Two overlapping spheres with different materials. In the overlapping region, the first child’s material takes priority by default:

import pyvcad as pv
import pyvcad_rendering as viz

materials = pv.default_materials

radius = 5
left_sphere  = pv.Sphere(pv.Vec3(-radius/2, 0, 0), radius, materials.id("red"))
right_sphere = pv.Sphere(pv.Vec3(+radius/2, 0, 0), radius, materials.id("blue"))

root = pv.Union()
root.add_child(left_sphere)
root.add_child(right_sphere)

viz.Render(root, materials)

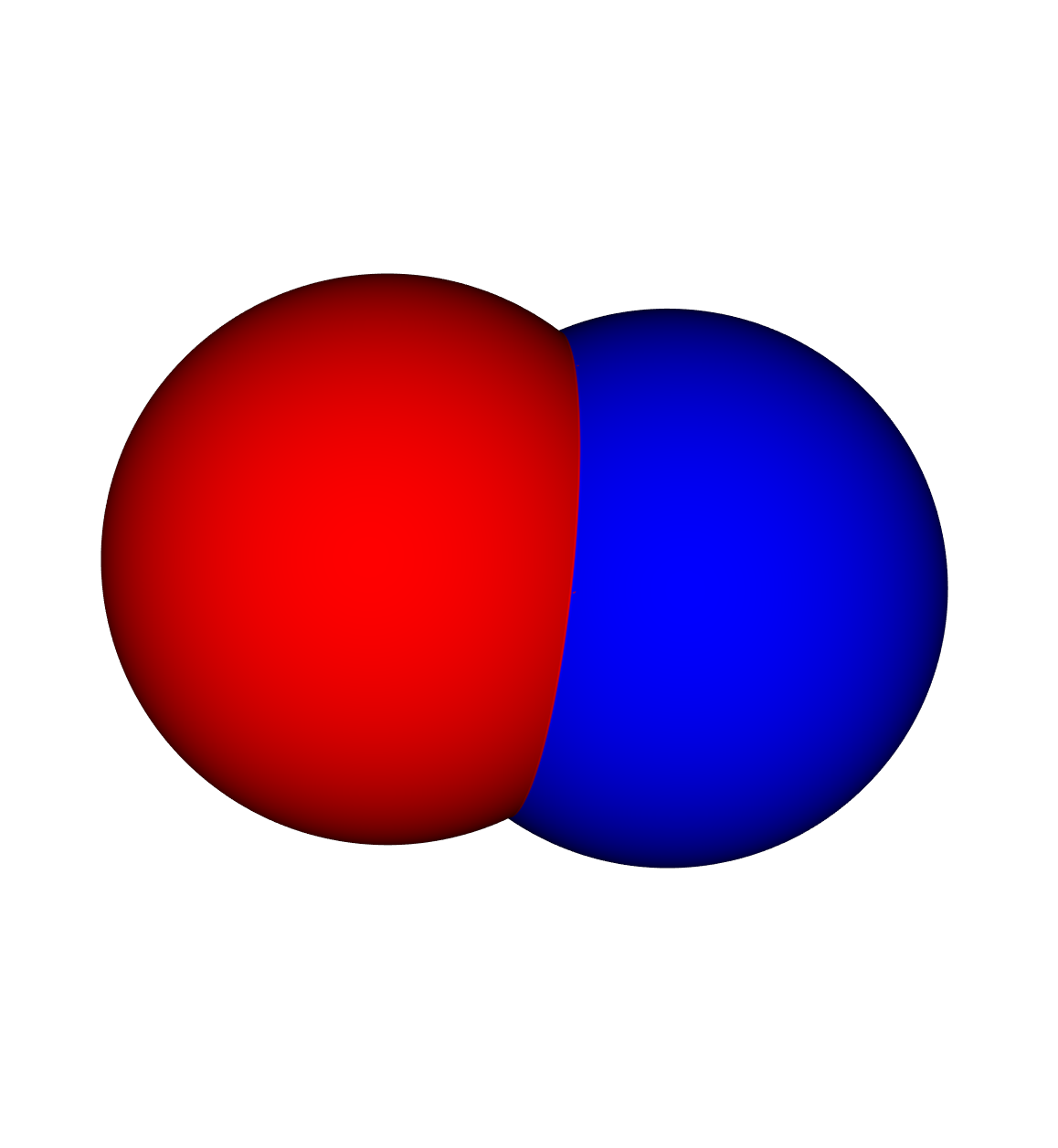

Basic multi-material example render

Blended Intersection

Set the first parameter of Intersection to True to combine and normalize all child material distributions. The overlapping region becomes an equal blend of red and blue:

import pyvcad as pv
import pyvcad_rendering as viz

materials = pv.default_materials

radius = 5
left_sphere  = pv.Sphere(pv.Vec3(-radius/2, 0, 0), radius, materials.id("red"))
right_sphere = pv.Sphere(pv.Vec3(+radius/2, 0, 0), radius, materials.id("blue"))

root = pv.Intersection(True, [left_sphere, right_sphere])

viz.Render(root, materials)

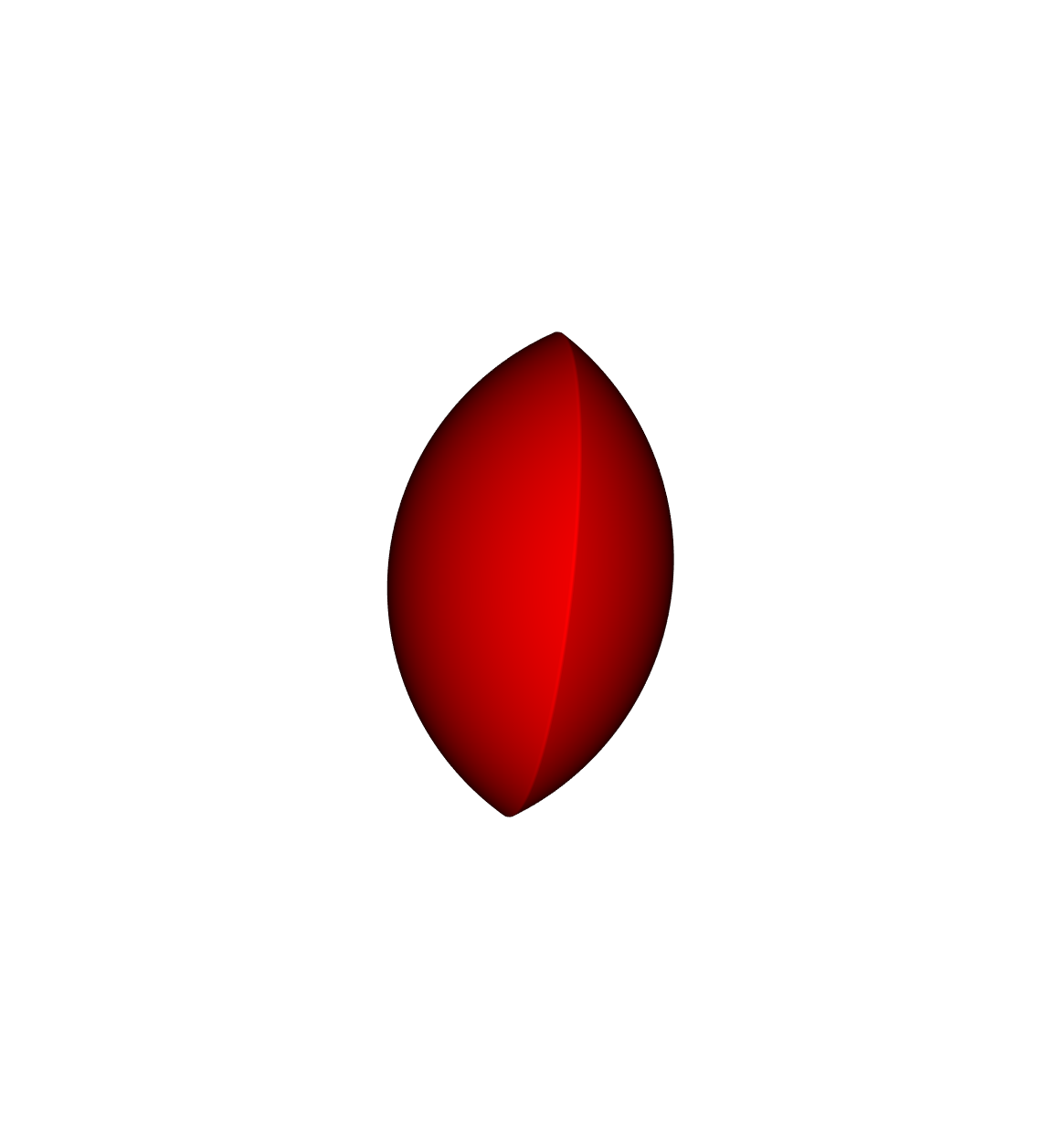

Blended intersection example render

Functional Grading with FGrade

The FGrade node creates multi-material spatial gradients using overlapping probability density functions (PDFs). Each material gets a PDF that defines its volume fraction at every point. At any location, all PDFs must sum to 1.

This example creates a linear gradient from blue to red across a rectangular bar:

import pyvcad as pv
import pyvcad_rendering as viz

materials = pv.default_materials

bar = pv.RectPrism(pv.Vec3(0,0,0), pv.Vec3(100,50,10), materials.id("gray"))

root = pv.FGrade(["x/100 + 0.5", "-x/100 + 0.5"],
                 [materials.id("red"), materials.id("blue")], False)
root.set_child(bar)

viz.Render(root, materials)

# Export the object for 3D printing or simulation
viz.Export(root, materials)

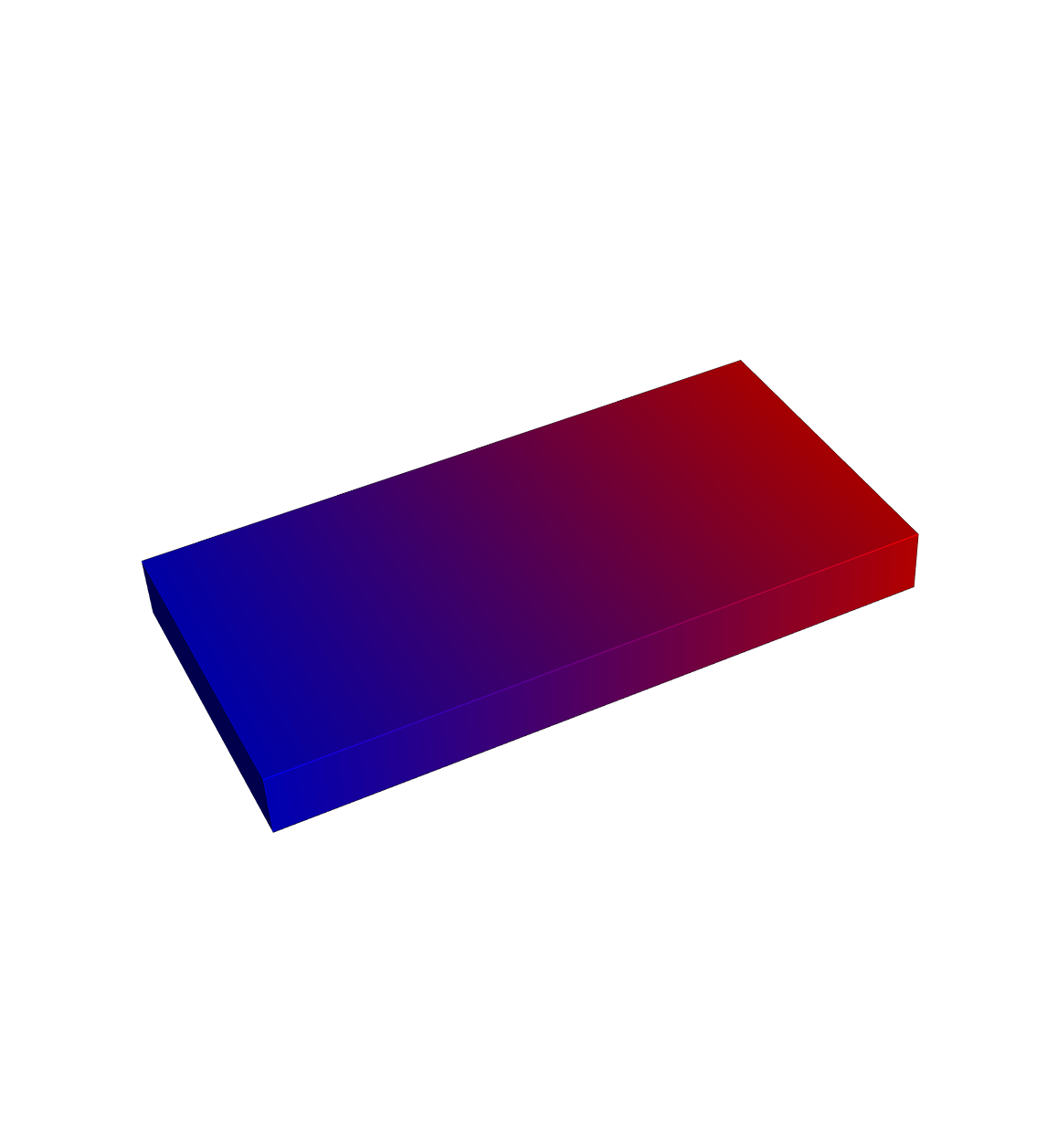

Functionally graded material transition

Several spatial variables are available in the math expressions, including x, y, z coordinates as well as spherical and cylindrical coordinates. See the Math Expression Documentation for the full reference.

Next Steps

  1. Explore the examples

  2. Read the Python API Reference

  3. Read our publications
