Attribute Conflict Resolution#

This guide covers Attribute Conflict Resolution, a powerful feature for managing overlapping implicit geometries that possess conflicting attribute assignments.

Prerequisites: Before proceeding, you must ensure you have completed the following guides. You must be deeply familiar with these concepts before trying to manage conflicts:

The Problem#

As you learned in Lesson 7 of the Getting Started Guide, when two objects overlap during Constructive Solid Geometry (CSG) operations like pv.Union, OpenVCAD enforces a system of priority rules. Without an explicit parent override, the first child (often the left-hand argument) dominates the resulting overlap zone.

While this default behavior is predictable, it prevents actual material blending, composite density distribution, or additive coloring inside the intersecting volume. To correct this, we use the set_attribute_conflict_resolver() API.

Below are 6 concrete lessons demonstrating the various built-in and customizable conflict resolvers designed to combine continuous field functions gracefully within structural nodes.

Lesson 1: Averaging Resolvers#

The most straightforward way to tackle conflicting fields (e.g., merging a Red color and a Blue color) is to take their mean across the boundary.

In this example, we apply the pv.resolvers.AverageConflictResolver to the pv.DefaultAttributes.COLOR_RGBA attribute of an Intersection node. Unlike the default priority, the returned lens shape averages out to a perfect purple core!

import pyvcad as pv
import pyvcad_rendering as viz

materials = pv.default_materials

left_sphere = pv.Sphere(pv.Vec3(-4, 0, 0), 10.0)
right_sphere = pv.Sphere(pv.Vec3(4, 0, 0), 10.0)

# Red
left_sphere.set_attribute(pv.DefaultAttributes.COLOR_RGBA, pv.Vec4Attribute("1.0", "0.0", "0.0", "1.0"))
# Blue
right_sphere.set_attribute(pv.DefaultAttributes.COLOR_RGBA, pv.Vec4Attribute("0.0", "0.0", "1.0", "1.0"))

root = pv.Intersection(left_sphere, right_sphere)

# Instead of the default behavior, we average them.
# The entire resulting intersection lens will be purple instead or red or blue!
root.set_attribute_conflict_resolver(pv.DefaultAttributes.COLOR_RGBA, pv.resolvers.AverageConflictResolver())

viz.Render(root, materials)

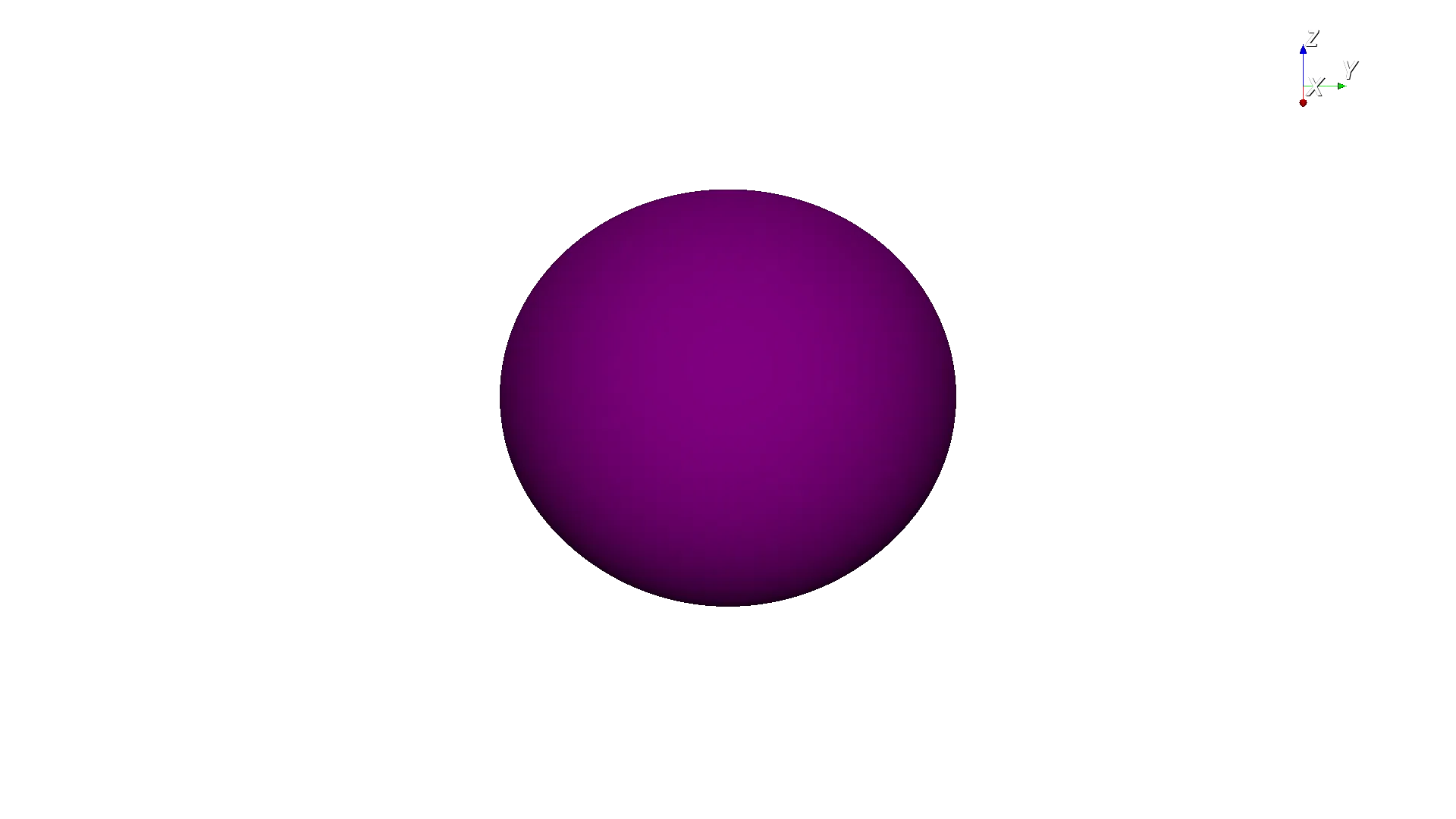

Render (color)

Lesson 2: Min/Max and Mode Selection#

Some workflows require conservative or aggressive attribute bounds. You can construct a MinConflictResolver or a MaxConflictResolver.

For arrays like Vec4, these resolvers utilize an operational pv.resolvers.Vec4Mode. You can resolve conflicts based on total Magnitude, or resolve them PerChannel. In this example, intersecting horizontal (Cyan) and vertical (Yellow) components use Vec4Mode.PerChannel. The maximum of both results in a bright White crossing section.

import pyvcad as pv
import pyvcad_rendering as viz

materials = pv.default_materials

# Two intersecting rectangular prisms forming a cross (+)
cube_x = pv.RectPrism(pv.Vec3(0, 0, 0), pv.Vec3(20, 6, 6))
cube_y = pv.RectPrism(pv.Vec3(0, 0, 0), pv.Vec3(6, 20, 6))

# Horizontal prism is Cyan (R=0, G=1, B=1)
cube_x.set_attribute(pv.DefaultAttributes.COLOR_RGBA, pv.Vec4Attribute("0.0", "1.0", "1.0", "1.0"))
# Vertical prism is Yellow (R=1, G=1, B=0)
cube_y.set_attribute(pv.DefaultAttributes.COLOR_RGBA, pv.Vec4Attribute("1.0", "1.0", "0.0", "1.0"))

root = pv.Union(cube_x, cube_y)

# We use MaxConflictResolver with PerChannel mode.
# The intersection takes the maximum of each color channel:
# Max(R=0, R=1) -> R=1
# Max(G=1, G=1) -> G=1
# Max(B=1, B=0) -> B=1
# The result in the center will be White (1, 1, 1).
resolver = pv.resolvers.MaxConflictResolver(pv.resolvers.Vec4Mode.PerChannel)
root.set_attribute_conflict_resolver(pv.DefaultAttributes.COLOR_RGBA, resolver)

viz.Render(root, materials)

Render (color)

Lesson 3: Volume Fractions Handling#

Resolving discrete materials correctly requires extreme precision: the total component distribution percentage must always cleanly equal 1.0.

The AverageConflictResolver integrates natively with pv.DefaultAttributes.VOLUME_FRACTIONS. It tracks the distinct components inside each volume and automatically re-normalizes the distribution upon evaluation, yielding a physically valid composite material across the blend zone.

import pyvcad as pv
import pyvcad_rendering as viz

materials = pv.default_materials

# Crossing rectangular prisms
cube_x = pv.RectPrism(pv.Vec3(0, 0, 0), pv.Vec3(20, 6, 6))
cube_y = pv.RectPrism(pv.Vec3(0, 0, 0), pv.Vec3(6, 20, 6))

# Horizontal prism is 100% blue
frac_blue = pv.VolumeFractionsAttribute([("1.0", materials.id("blue"))])
cube_x.set_attribute(pv.DefaultAttributes.VOLUME_FRACTIONS, frac_blue)

# Vertical prism is 100% red
frac_red = pv.VolumeFractionsAttribute([("1.0", materials.id("red"))])
cube_y.set_attribute(pv.DefaultAttributes.VOLUME_FRACTIONS, frac_red)

root = pv.Union(cube_x, cube_y)

# The AverageConflictResolver automatically handles normalized material distributions.
# Where the cubes intersect, it will average the distributions and re-normalize,
# creating a perfect 50/50 mix of Red and Blue material.
root.set_attribute_conflict_resolver(pv.DefaultAttributes.VOLUME_FRACTIONS, pv.resolvers.AverageConflictResolver())

viz.Render(root, materials)

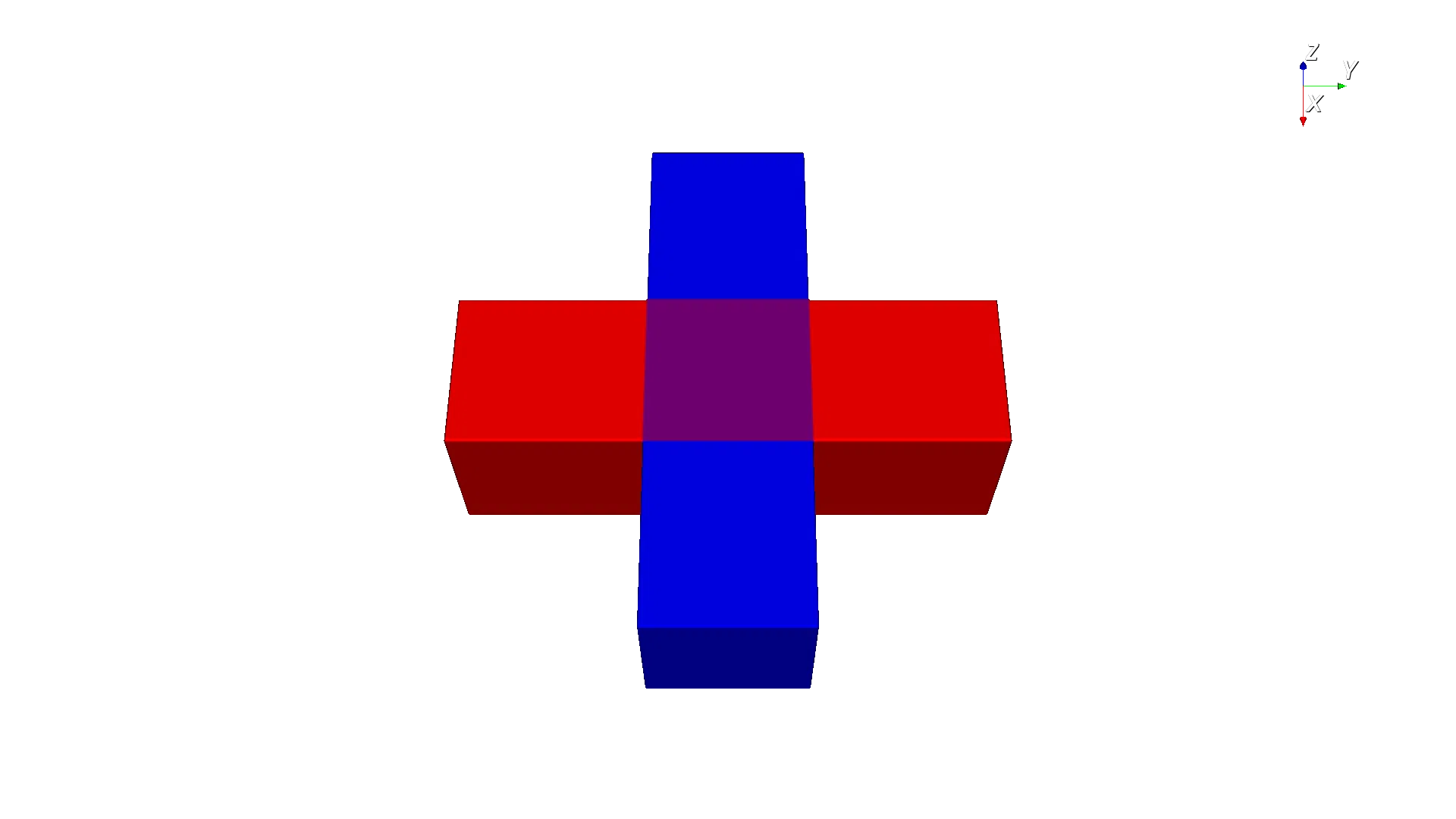

Render (volume fractions)

Lesson 4: Custom Scalar Logistics via Numba#

If the native averaging or max/min thresholds aren’t appropriate for your application, you can inject highly performant C++ callbacks directly into the engine’s compilation loop using Numba.

The CustomFloatConflictResolver allows you to define a cfunc that takes two float64 properties and returns a computed answer. In this example, overlapping spheres multiply their independent baseline densities.

import pyvcad as pv
import pyvcad_rendering as viz
from numba import cfunc, types

materials = pv.default_materials

left_sphere = pv.Sphere(pv.Vec3(-4.0, 0, 0), 10.0)
right_sphere = pv.Sphere(pv.Vec3(4.0, 0, 0), 10.0)

# Left sphere has density 2.0
left_sphere.set_attribute("density", pv.FloatAttribute("2.0"))
# Right sphere has density 3.0
right_sphere.set_attribute("density", pv.FloatAttribute("3.0"))

root = pv.Intersection(left_sphere, right_sphere)

# We define a custom Numba C-callback for fast, compiled evaluation
# during the geometry sampling loop. Let's multiply the densities.
@cfunc(types.float64(types.float64, types.float64))
def multiply_densities(a, b):
    return a * b

# Apply the custom float resolver
root.set_attribute_conflict_resolver("density", pv.resolvers.CustomFloatConflictResolver(multiply_densities))

viz.Render(root, materials)

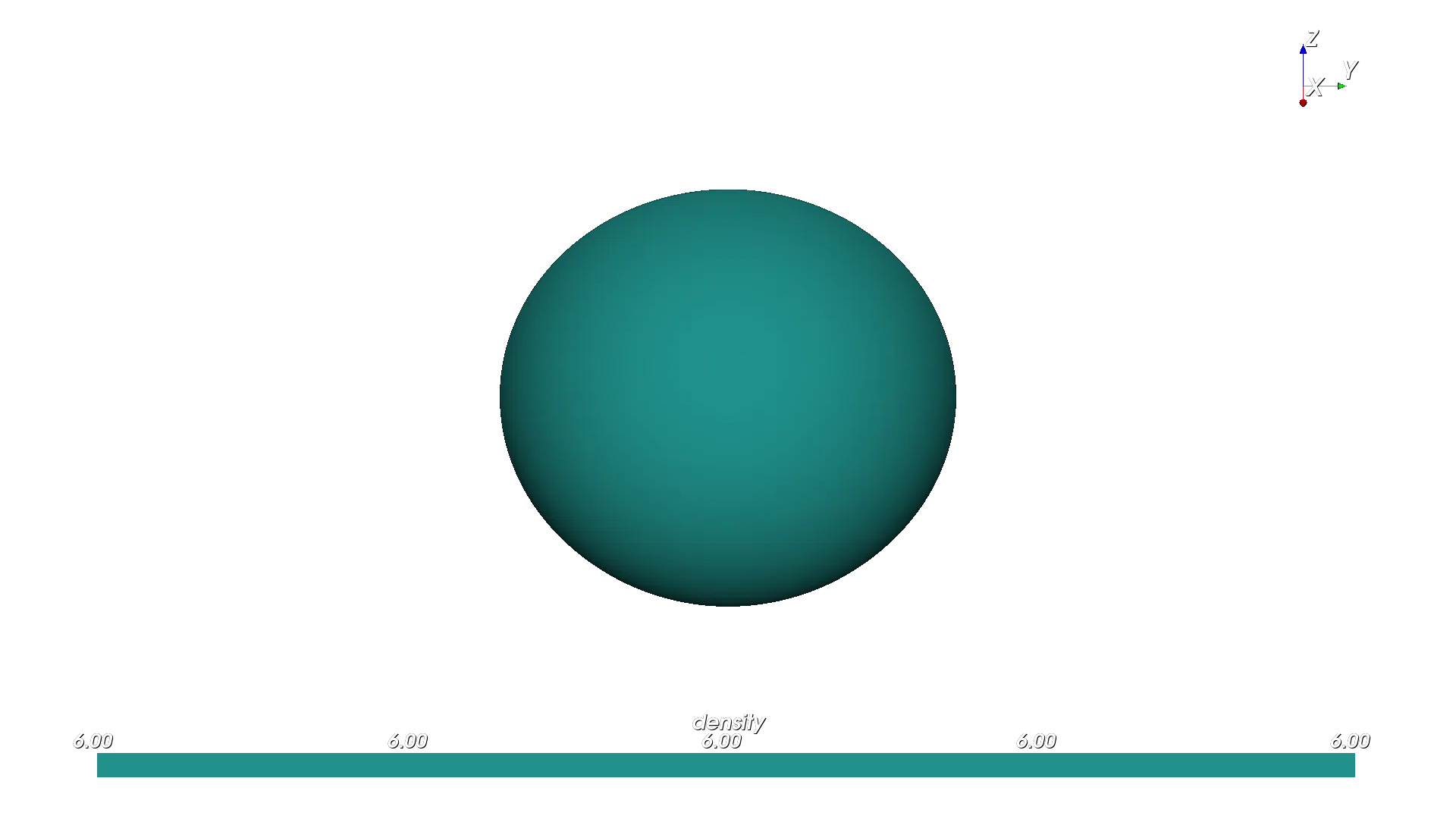

Render (density)

Lesson 5: Granular Vector Customization#

For extreme customization involving complex vector datasets (like pv.Vec4Attribute), you can attach independent arithmetic functions to individual geometric dimensions or individual color channels via CustomVec4ConflictResolver.

Below, a bespoke solver dictates that Red resolves through max(), Green through min(), Blue via summation (a+b), and Alpha locks itself to an immutable baseline of 1.0. The solver operates over overlapping orthogonal prisms.

import pyvcad as pv
import pyvcad_rendering as viz
from numba import cfunc, types

materials = pv.default_materials

cube_x = pv.RectPrism(pv.Vec3(0, 0, 0), pv.Vec3(20, 6, 6))
cube_y = pv.RectPrism(pv.Vec3(0, 0, 0), pv.Vec3(6, 20, 6))

# Horizontal prism is mostly Cyan
cube_x.set_attribute(pv.DefaultAttributes.COLOR_RGBA, pv.Vec4Attribute("0.2", "0.8", "0.8", "1.0"))
# Vertical prism is mostly Yellow
cube_y.set_attribute(pv.DefaultAttributes.COLOR_RGBA, pv.Vec4Attribute("0.8", "0.8", "0.2", "1.0"))

root = pv.Union(cube_x, cube_y)

# With CustomVec4ConflictResolver, we can configure completely different
# logic for Red, Green, Blue, and Alpha channels in the overlap region.

@cfunc(types.float64(types.float64, types.float64))
def logic_r(a, b):
    return max(a, b) # Take maximum Red

@cfunc(types.float64(types.float64, types.float64))
def logic_g(a, b):
    return min(a, b) # Take minimum Green

@cfunc(types.float64(types.float64, types.float64))
def logic_b(a, b):
    return a + b     # Add Blue components

@cfunc(types.float64(types.float64, types.float64))
def logic_a(a, b):
    return 1.0       # Always solid alpha

resolver = pv.resolvers.CustomVec4ConflictResolver(logic_r, logic_g, logic_b, logic_a)
root.set_attribute_conflict_resolver(pv.DefaultAttributes.COLOR_RGBA, resolver)

viz.Render(root, materials)

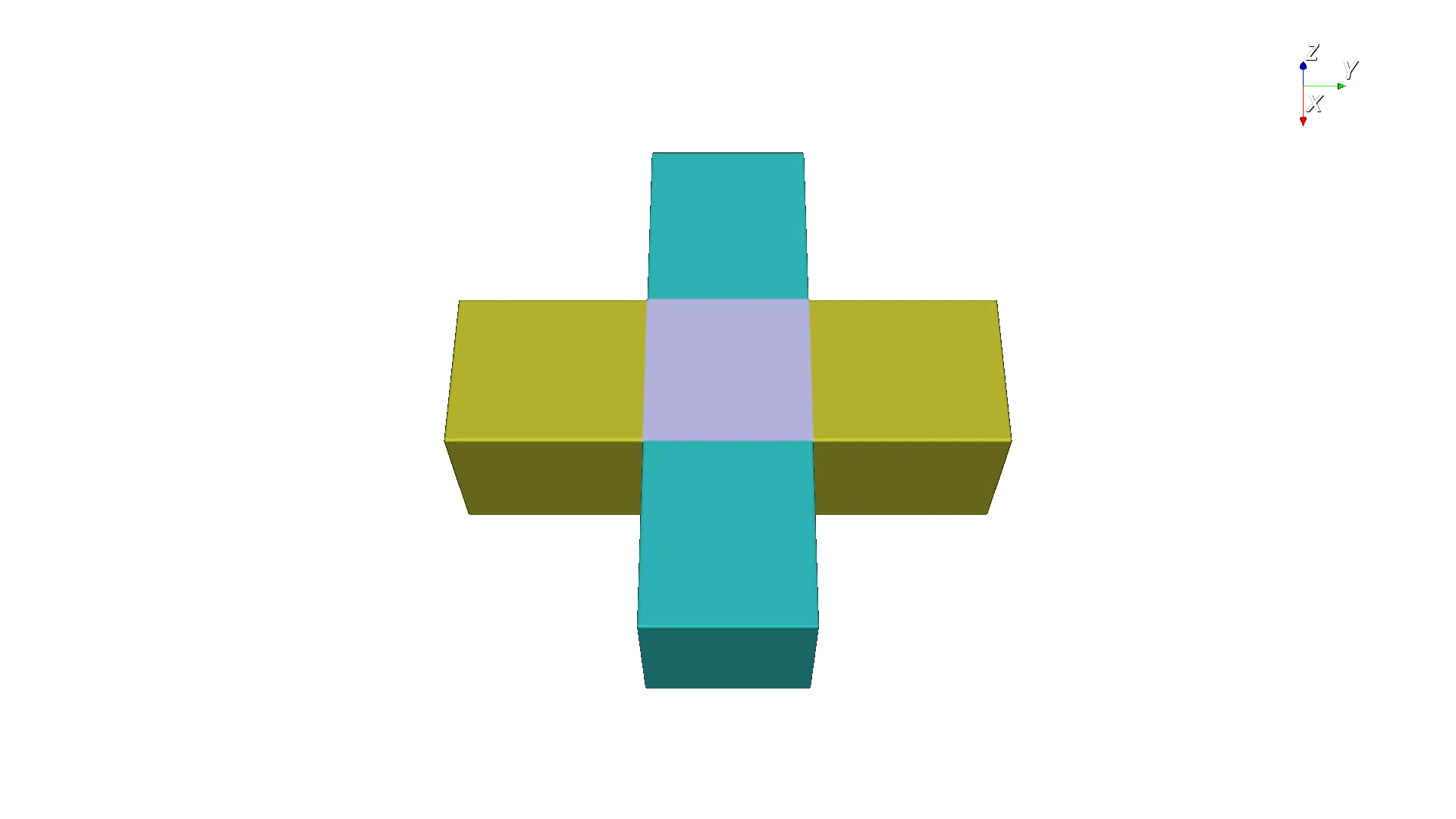

Render (color)

Lesson 6: N-ary Conflict Reductions#

While pv.Union and pv.Intersection are standard binary boolean operations that process exactly two geometries, the pv.BBoxUnion and pv.BBoxIntersection are highly optimized N-ary nodes that can take any number of children (e.g., thousands of lattice struts).

So how does our custom conflict resolution function—which only takes two parameters (left_val, right_val)—handle an overlap of four, five, or fifty objects?

It uses Binary Reduction. A binary reduction simply resolves the array of conflicts two at a time sequentially. The node compares the first two intersecting objects, evaluates their localized attribute fields, and resolves them using your custom function. The resulting “virtual” attribute field is then fed into the left side of the custom function against the third overlapping object on the right side. The result is fed against the fourth object, and so on until the entire spatial stack is resolved into a single value for that discrete coordinate.

In this example, we union four rectangular prisms arranged in a 2×2 grid (pv.BBoxUnion), one in each quadrant of the XY plane, with their edges deliberately overlapping by a few units. Each prism carries a DENSITY attribute of 1.0. We then attach an additive custom resolver (left_val + right_val). Because of binary reduction, any 3D coordinate that lies inside only one prism keeps its density of 1.0. Along the shared edges where exactly two prisms overlap, the reduction yields 2.0. At the very center of the grid where all four prisms meet, the reduction cascades through all four children: (1.0 + 1.0) + 1.0 + 1.0 = 4.0.

import pyvcad as pv
import pyvcad_rendering as viz
from numba import cfunc, types

materials = pv.default_materials

# 1. Define four rectangular prisms, one in each quadrant of the XY plane.
#    Each prism is 12x12x6 but offset so they overlap by 2 units along
#    each shared edge, creating a cross-shaped overlap region in the center.
q1 = pv.RectPrism(pv.Vec3( 5.0,  5.0, 0.0), pv.Vec3(12.0, 12.0, 6.0))
q2 = pv.RectPrism(pv.Vec3(-5.0,  5.0, 0.0), pv.Vec3(12.0, 12.0, 6.0))
q3 = pv.RectPrism(pv.Vec3(-5.0, -5.0, 0.0), pv.Vec3(12.0, 12.0, 6.0))
q4 = pv.RectPrism(pv.Vec3( 5.0, -5.0, 0.0), pv.Vec3(12.0, 12.0, 6.0))

# 2. Assign identical density scalars to each prism
q1.set_attribute("density", pv.FloatAttribute("1.0"))
q2.set_attribute("density", pv.FloatAttribute("1.0"))
q3.set_attribute("density", pv.FloatAttribute("1.0"))
q4.set_attribute("density", pv.FloatAttribute("1.0"))

# 3. Use BBoxUnion - an N-ary union node.
#    Conflicts in overlapping regions are resolved via Binary Reduction.
root = pv.BBoxUnion([q1, q2, q3, q4])

# 4. Define an additive custom resolver using a Numba cfunc.
#    The same binary function signature (left_val, right_val) is reused
#    for every pair during the reduction across all overlapping children.
@cfunc(types.float64(types.float64, types.float64))
def additive_density(left_val, right_val):
    return left_val + right_val

root.set_attribute_conflict_resolver(
    "density",
    pv.resolvers.CustomFloatConflictResolver(additive_density)
)

viz.Render(root, materials)

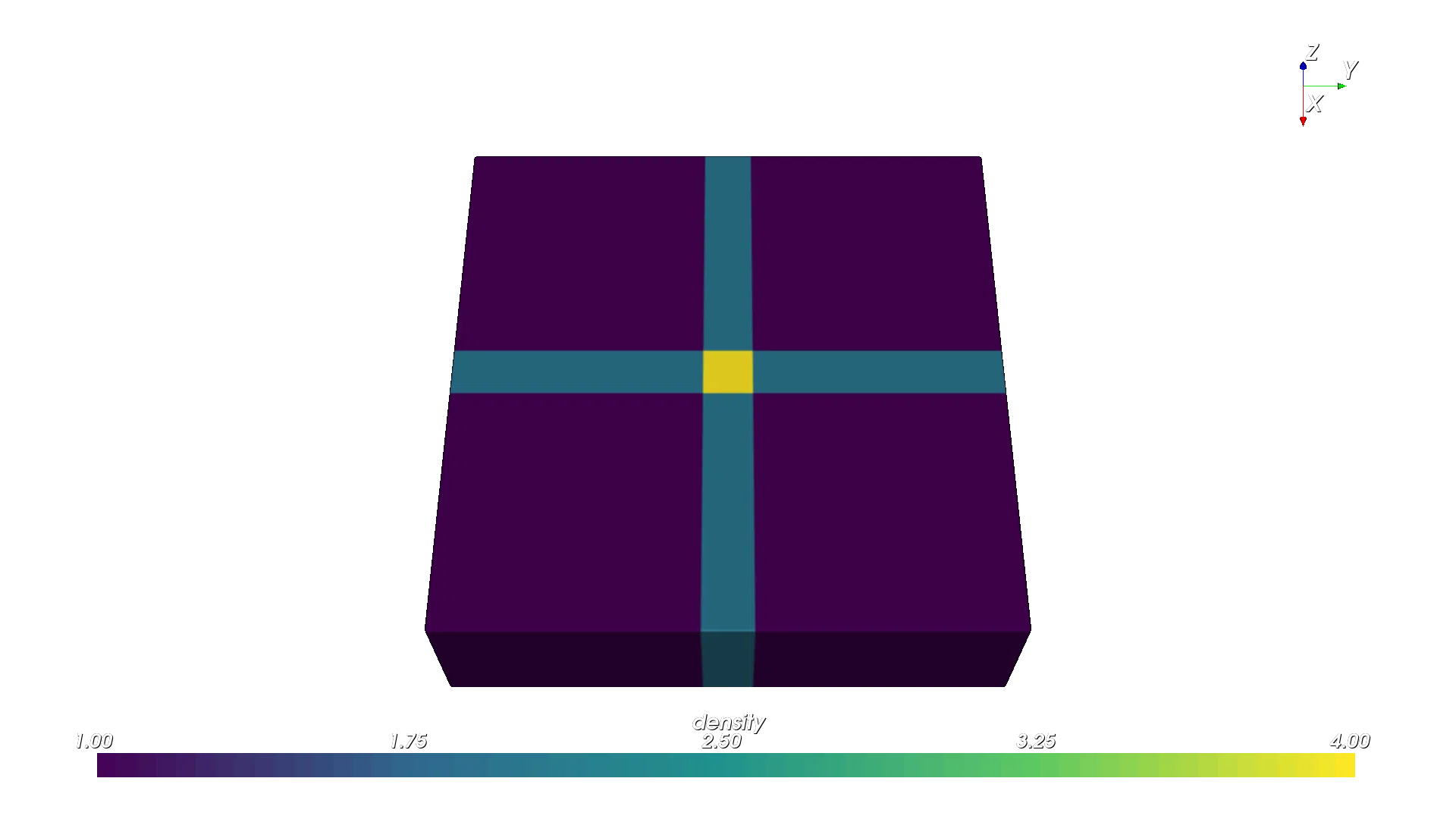

Render (density)

The outer regions of each prism show a density of 1.0. Along the shared edges, density rises to 2.0. At the very center where all four prisms meet, the additive binary reduction yields a peak density of 4.0.
