Simulation Compiler

The SimulationCompiler turns an OpenVCAD design into a finite-element mesh plus cell-wise simulation data. The supported backends in this guide are:

• FENICSX_XDMF for .xdmf + .h5 mesh/data bundles

• ABAQUS_INP for .inp mesh export

This page is a hands-on guide to the exporter workflow. It is organized as three lessons: a volume-fractions export, an export-only direct-mechanical beam, and a self-contained OpenVCAD-to-FEniCSx beam solve. It focuses on the tetrahedral XDMF/H5 path, shows the matching hexahedral Abaqus calls, and explains the two export modes that matter most:

• volume_fractions exported as both a stochastic material_id field and raw volume_fraction_* fields

• direct scalar fields such as modulus, poissons_ratio, and density exported directly per element

Prerequisites

• OpenVCAD installed with pip install OpenVCAD

• Familiarity with the Getting Started guide and the Functional Grading Guide

The guide example files live under examples/compilers/simulation/:

• 01_volume_fractions_export.py

• 02_direct_mechanical_properties_export.py

• 03_fenicsx_load_exported_design.py

What this compiler exports

The simulation compiler always starts from the same ingredients:

1. a prepared OpenVCAD design

2. a target mesh type

3. one export backend

4. the attributes you want carried into the simulation mesh

The mesh itself can be:

• hexahedral using a regular voxel-style grid

• tetrahedral using a tet mesh with variable sized elements

The attribute path depends on what you attach to the model:

• volume_fractions is treated as a multi-material mixture. The compiler samples the continuous mixture, performs a deterministic weighted stochastic draw per element, and writes the resulting material_id field. It also writes the raw volume_fraction_* cell fields for convenience.

• direct scalar attributes such as modulus, poissons_ratio, and density are sampled directly as cell-wise values. There is no stochastic material draw in this path.

Why XDMF comes with an H5 file

The .xdmf file is the lightweight descriptor that tells downstream tools where the mesh and cell datasets live. The bulk numeric arrays live in the paired .h5 file. In practice:

• .xdmf describes the topology, geometry, and named attributes

• .h5 stores the actual node coordinates, element connectivity, and cell-data arrays

That pairing is the normal way to move simulation-sized meshes into tools such as DOLFINx/FEniCSx and viewers such as ParaView.

Lesson 1: Volume fractions

The script examples/compilers/simulation/01_volume_fractions_export.py builds a centered rectangular bar with a left-to-right material blend. It exports the same design three ways:

• hex + Abaqus

• tet + XDMF/H5 (high resolution)

• tet + XDMF/H5 (low resolution)

import os
import shutil

import pyvcad as pv
import pyvcad_compilers as pvc
import pyvcad_rendering as viz

materials = pv.default_materials

bar_length = 30.0
bar_width = 10.0
bar_height = 10.0
half_length = 0.5 * bar_length

bar = pv.RectPrism(pv.Vec3(0, 0, 0), pv.Vec3(bar_length, bar_width, bar_height))
fractions = pv.VolumeFractionsAttribute(
    [
        (f"1 - clamp((x + {half_length}) / {bar_length}, 0, 1)", materials.id("red")),
        (f"clamp((x + {half_length}) / {bar_length}, 0, 1)", materials.id("blue")),
    ]
)
bar.set_attribute(pv.DefaultAttributes.VOLUME_FRACTIONS, fractions)
root = bar

output_dir = os.path.join(os.path.dirname(__file__), "output", "volume_fractions")

hex_settings = pvc.SimulationHexMeshSettings()
hex_settings.voxel_size = pv.Vec3(0.25, 0.25, 0.25)

abaqus_settings = pvc.SimulationCompilerSettings()
abaqus_settings.output_directory = output_dir
abaqus_settings.file_prefix = "volume_fractions_hex"
abaqus_settings.backend = pvc.SimulationBackend.ABAQUS_INP
abaqus_settings.mesh_kind = pvc.SimulationMeshKind.HEX
abaqus_settings.hex_settings = hex_settings
abaqus_settings.random_seed = 42
abaqus_settings.material_defs = materials

high_fenics_settings = pvc.SimulationCompilerSettings()
high_fenics_settings.output_directory = output_dir
high_fenics_settings.file_prefix = "volume_fractions_tet_high"
high_fenics_settings.backend = pvc.SimulationBackend.FENICSX_XDMF
high_fenics_settings.mesh_kind = pvc.SimulationMeshKind.TET
high_fenics_settings.random_seed = 42
high_fenics_settings.material_defs = materials

high_tet_settings = pvc.SimulationTetFixedMeshSettings()
high_tet_settings.facet_size = 0.75
high_tet_settings.facet_distance = 0.5
high_tet_settings.cell_size = 0.75
high_fenics_settings.tet_fixed_settings = high_tet_settings

low_fenics_settings = pvc.SimulationCompilerSettings()
low_fenics_settings.output_directory = output_dir
low_fenics_settings.file_prefix = "volume_fractions_tet_low"
low_fenics_settings.backend = pvc.SimulationBackend.FENICSX_XDMF
low_fenics_settings.mesh_kind = pvc.SimulationMeshKind.TET
low_fenics_settings.random_seed = 42
low_fenics_settings.material_defs = materials

low_tet_settings = pvc.SimulationTetFixedMeshSettings()
low_tet_settings.facet_size = 2.25
low_tet_settings.facet_distance = 1.5
low_tet_settings.cell_size = 2.25
low_fenics_settings.tet_fixed_settings = low_tet_settings

pvc.SimulationCompiler(root, abaqus_settings).compile()
pvc.SimulationCompiler(root, high_fenics_settings).compile()
pvc.SimulationCompiler(root, low_fenics_settings).compile()

viz.Render(root, materials)

From the repository root, with the project virtual environment activated:

python examples/compilers/simulation/01_volume_fractions_export.py

This example highlights the settings you will change most often:

• backend selects the output family

• mesh_kind selects hex or tet

• material_defs provides the base material ids used by the sampled material_id field

• random_seed makes the weighted stochastic element selection repeatable

• tet mesh sizing controls the amount of element-level mixing you can resolve

OpenVCAD preview

This is the original continuous volume_fractions field before any stochastic element assignment:

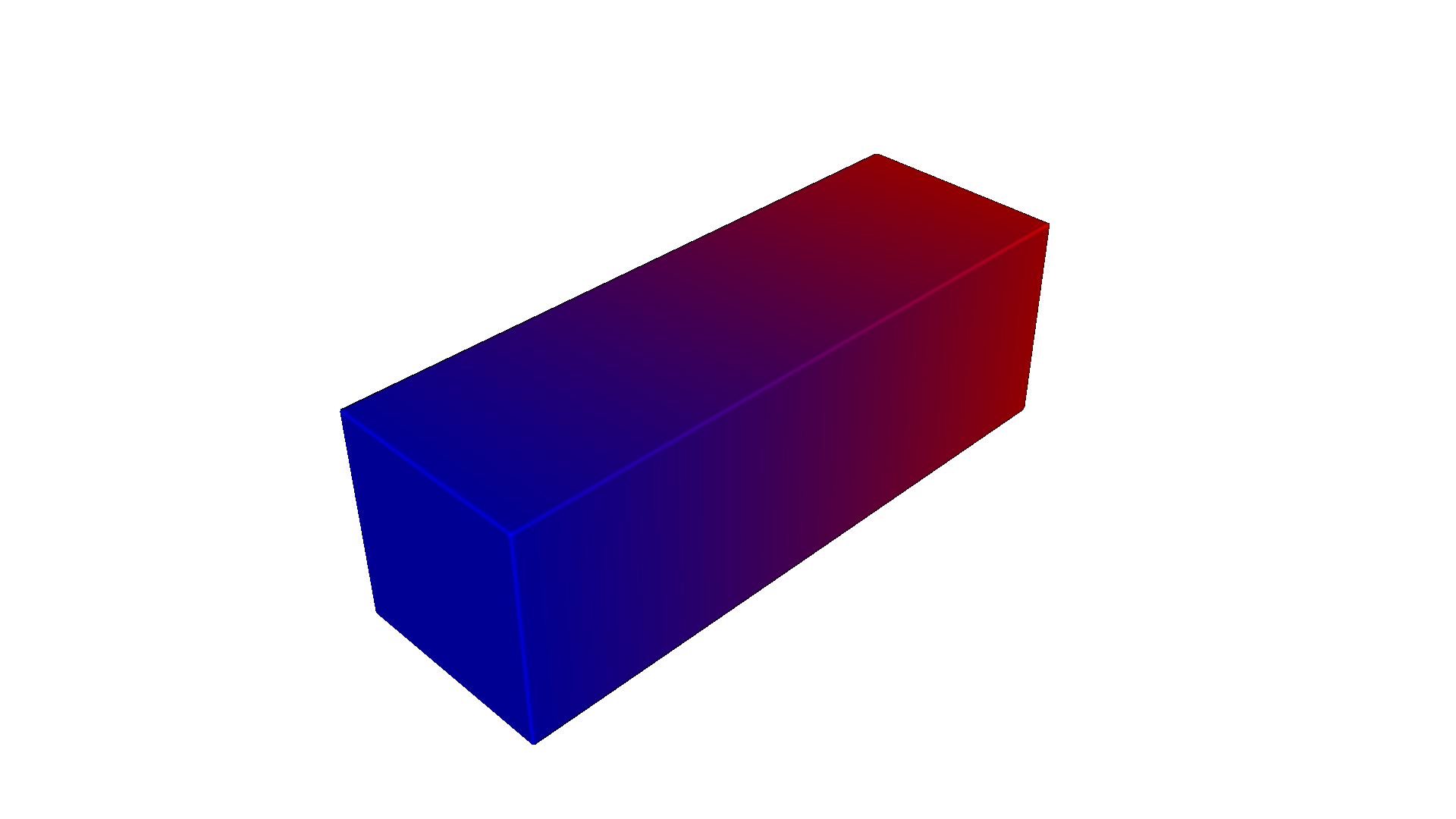

OpenVCAD preview — volume_fractions

High-resolution tet export in ParaView

The high-resolution tetrahedral export makes the stochastic material_id field look like a well-mixed gradient because there are enough elements to interdigitate the two materials. The raw volume_fraction_* fields stay smooth because they store the sampled continuous field directly. In this example the suffixes 1 and 3 come from the material ids assigned by pv.default_materials.

High-resolution ParaView — material_id

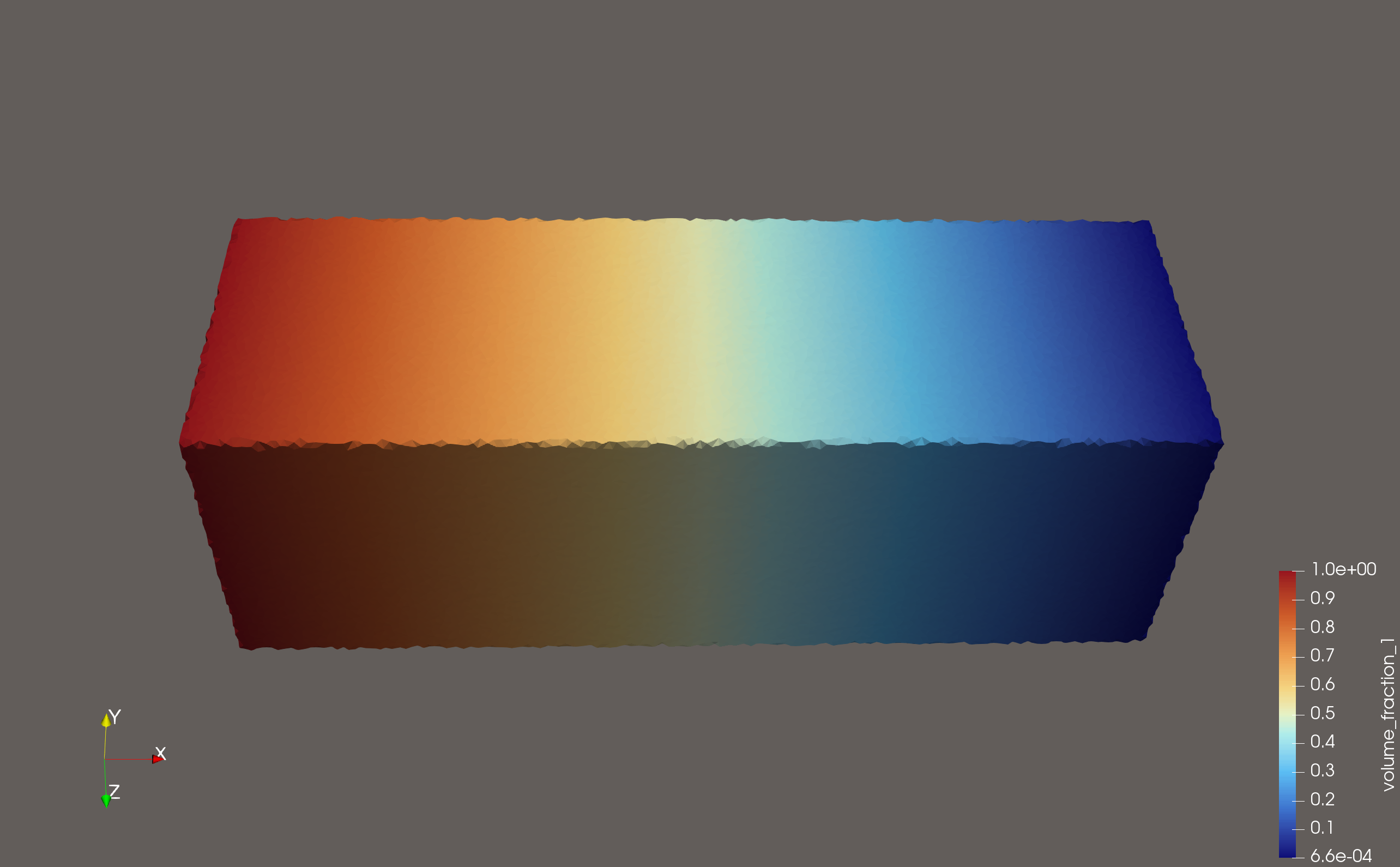

High-resolution ParaView — volume_fraction_1

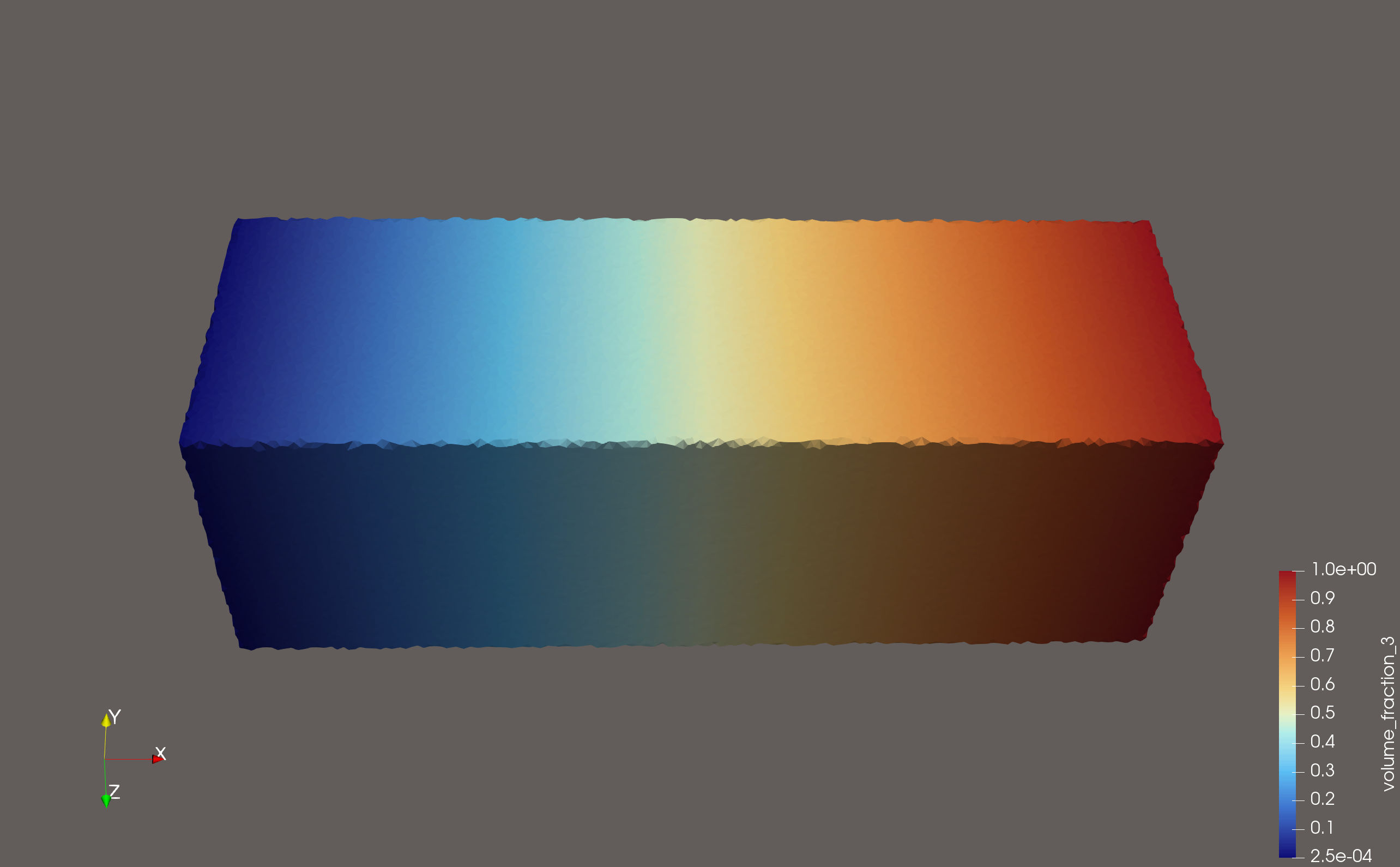

High-resolution ParaView — volume_fraction_3

Low-resolution tet export in ParaView

The low-resolution export uses the same underlying gradient, but the stochastic material_id field is much harder to read as a smooth transition because there are fewer elements available to represent the mixing pattern. The raw volume_fraction_1 field still shows the same continuous ramp.

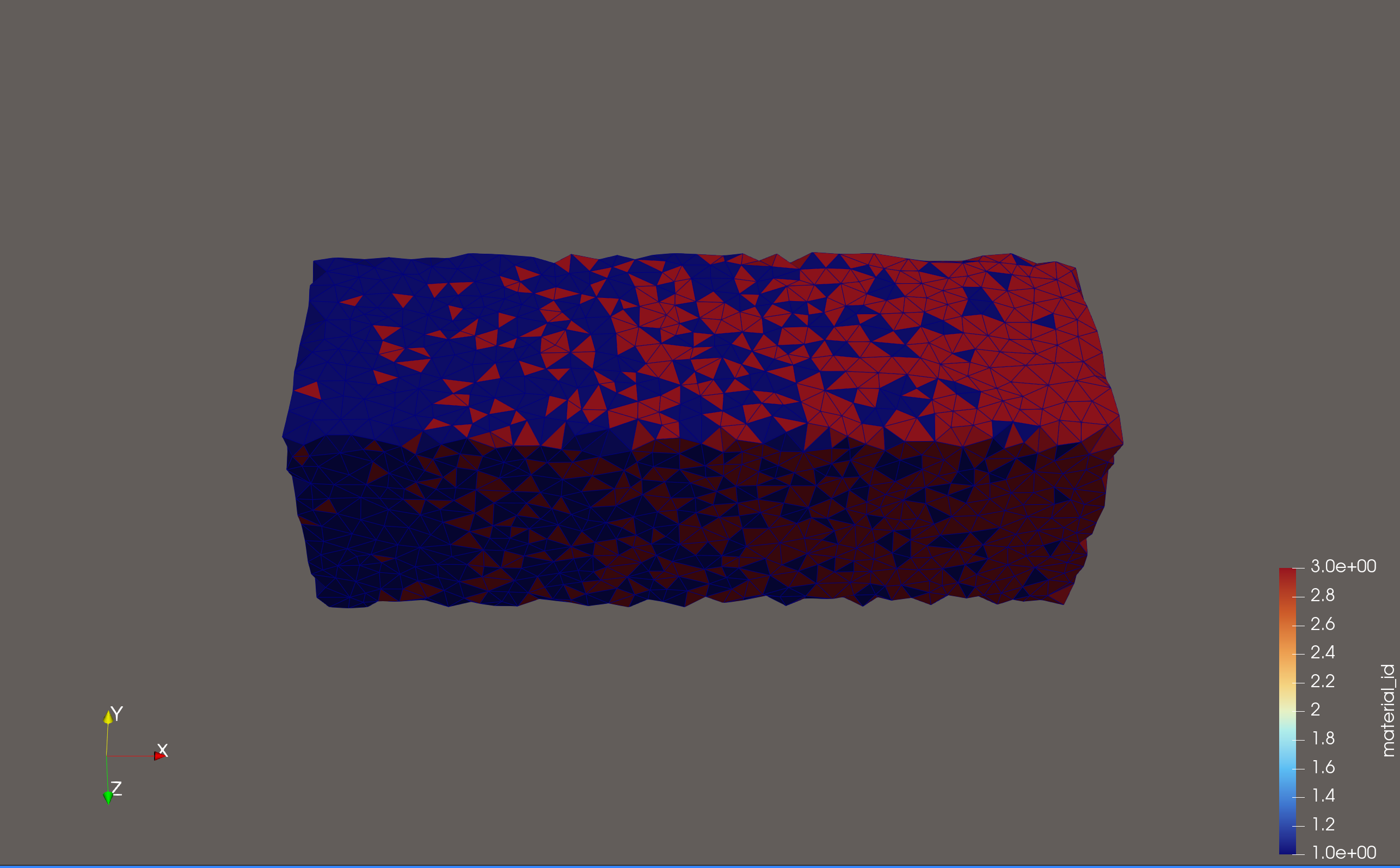

Low-resolution ParaView — material_id

Low-resolution ParaView — volume_fraction_1

The practical takeaway is simple:

• if your downstream solver only has a discrete material assignment path, you may need a finer mesh so the stochastic material_id pattern captures the intended mixture behavior

• if your downstream code can use the raw volume_fraction_* arrays directly, the exporter already saves them for you

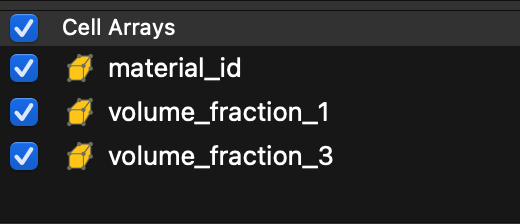

ParaView exposes the available cell datasets directly in the attribute selector:

ParaView attribute list — volume fractions export

Lesson 2: Direct mechanical property export

The script examples/compilers/simulation/02_direct_mechanical_properties_export.py shows the direct scalar path. Here the bar carries:

• modulus graded along x

• poissons_ratio graded along z

This lesson is intentionally export-only. It uses a different beam than Lesson 3: here poissons_ratio varies through the beam height, while Lesson 3 uses a separate cantilever beam where both elastic fields vary along the beam length. Density is omitted so the walkthrough stays focused on the two scalar fields that are carried directly into the simulation mesh.

import os
import shutil

import pyvcad as pv
import pyvcad_compilers as pvc
import pyvcad_rendering as viz

bar = pv.RectPrism(pv.Vec3(0, 0, 0), pv.Vec3(40.0, 12.0, 12.0))
bar.set_attribute(
    pv.DefaultAttributes.MODULUS,
    pv.FloatAttribute("1200 + 800 * clamp((x + 20.0) / 40.0, 0, 1)")
)
bar.set_attribute(
    pv.DefaultAttributes.POISSONS_RATIO,
    pv.FloatAttribute("0.20 + 0.15 * clamp((z + 6.0) / 12.0, 0, 1)")
)
root = bar

output_dir = "output"

direct_attributes = [
    pv.DefaultAttributes.MODULUS,
    pv.DefaultAttributes.POISSONS_RATIO,
]

fenics_settings = pvc.SimulationCompilerSettings()
fenics_settings.output_directory = output_dir
fenics_settings.file_prefix = "mechanical_tet"
fenics_settings.backend = pvc.SimulationBackend.FENICSX_XDMF
fenics_settings.mesh_kind = pvc.SimulationMeshKind.TET
fenics_settings.random_seed = 7
fenics_settings.direct_attributes = direct_attributes

tet_settings = pvc.SimulationTetFixedMeshSettings()
tet_settings.facet_size = 0.75
tet_settings.facet_distance = 0.75
tet_settings.cell_size = 0.75
fenics_settings.tet_fixed_settings = tet_settings

pvc.SimulationCompiler(root, fenics_settings).compile()
viz.Render(root)

Run the export with the fenicsx conda environment active:

conda activate fenicsx
python examples/compilers/simulation/02_direct_mechanical_properties_export.py

The key setting here is direct_attributes. It tells the compiler which non-volume-fraction fields to carry into the output mesh as direct cell data. Unlike the volume_fractions workflow, these attributes are not converted into a stochastic material assignment. Each element simply stores its sampled scalar value.

That means:

• the exported fields remain smooth as long as the underlying field varies smoothly

• mesh resolution still matters for how accurately the gradient is sampled

• but resolution is no longer about representing a stochastic mixing pattern

OpenVCAD previews

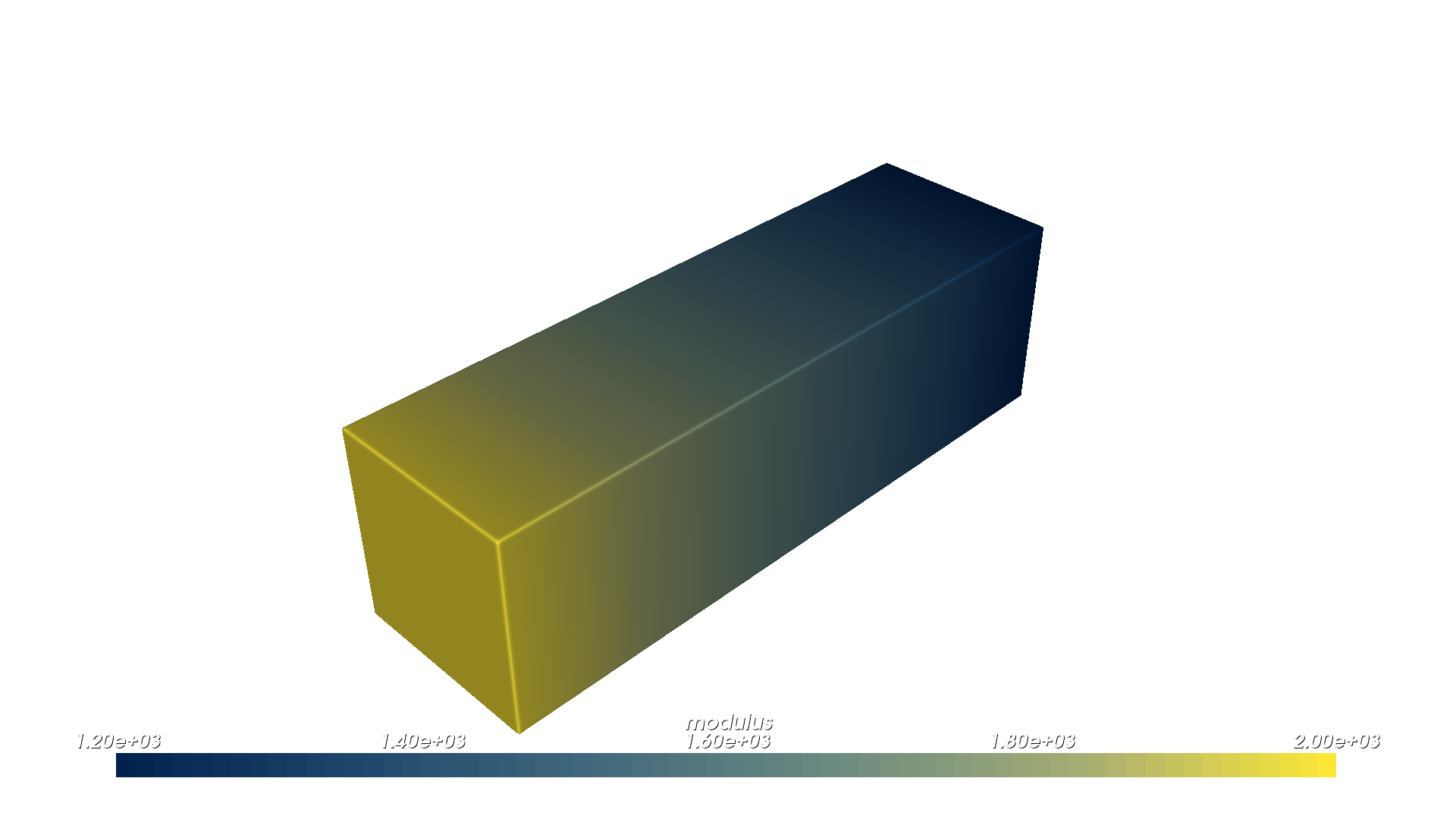

OpenVCAD preview — modulus

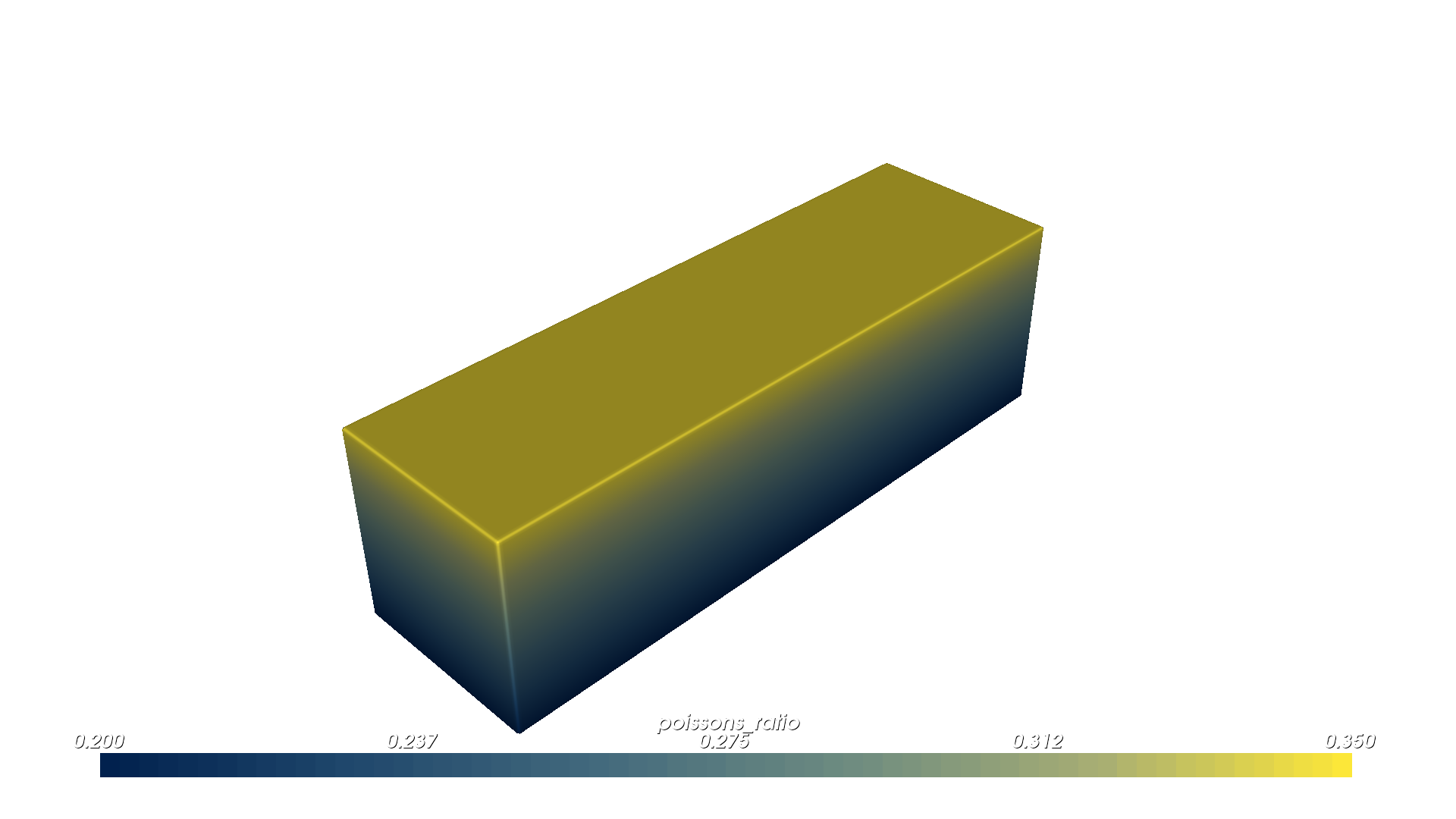

OpenVCAD preview — poissons_ratio

ParaView views of the exported cell fields

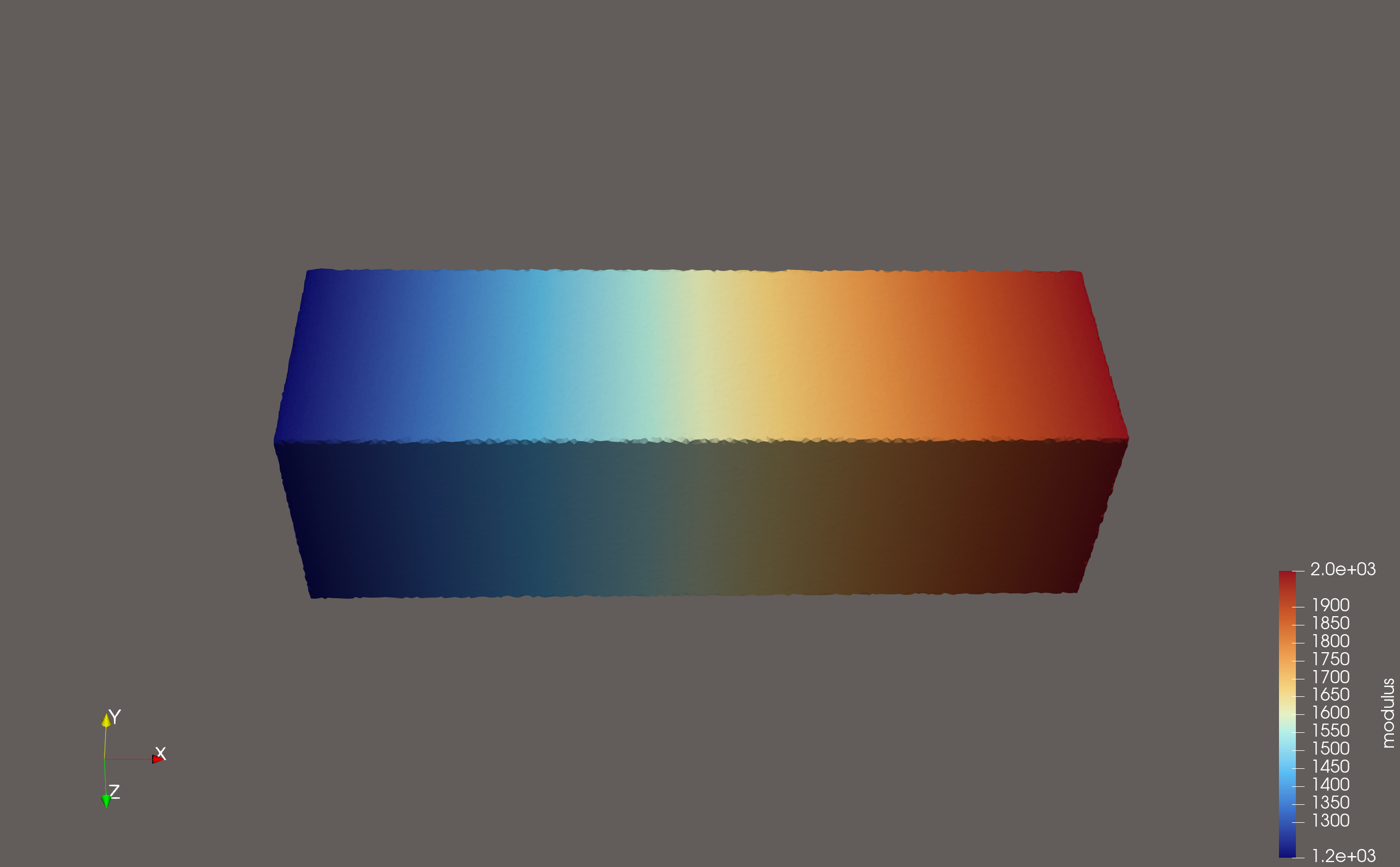

ParaView — modulus

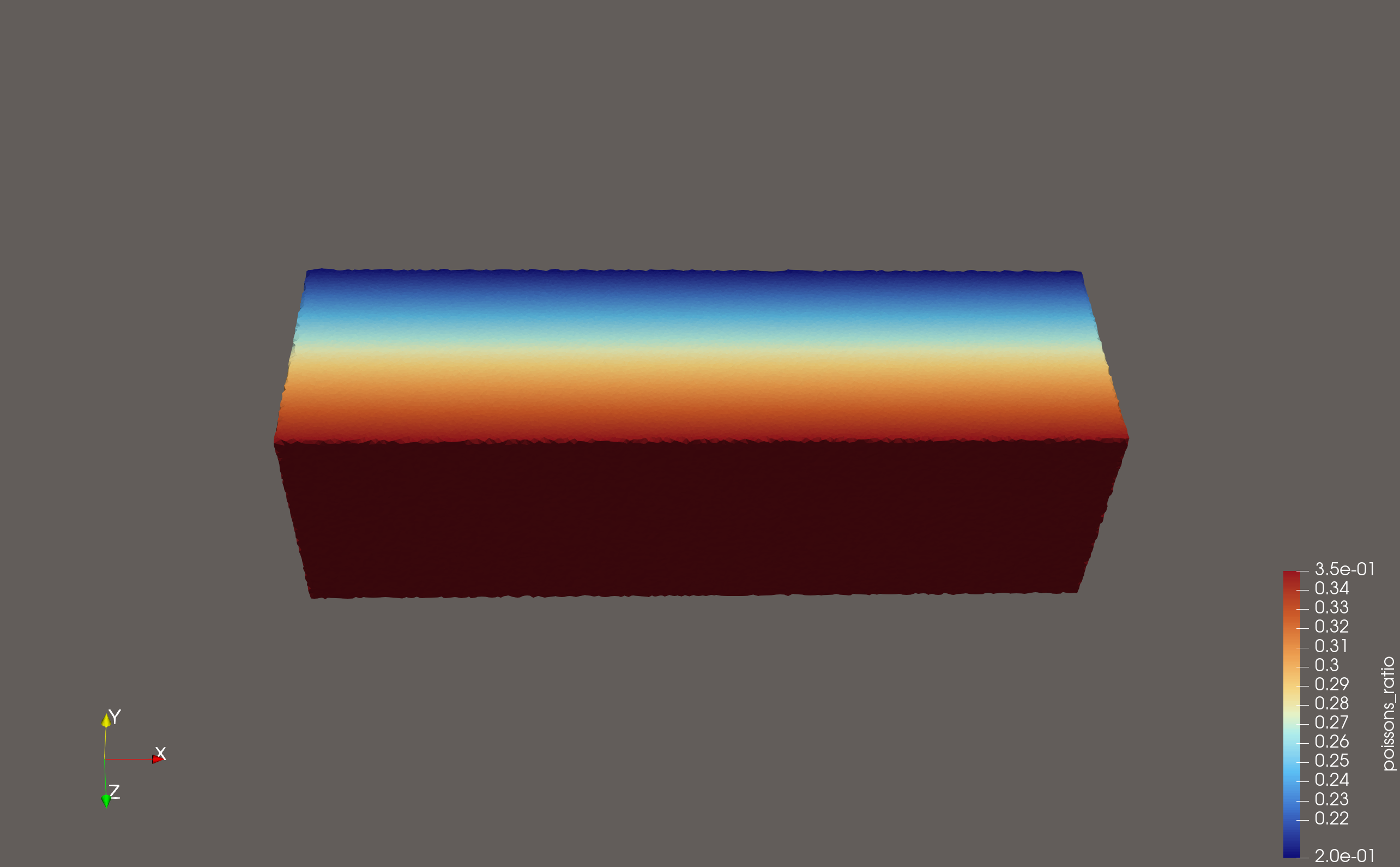

ParaView — poissons_ratio

Abaqus export from the same Lesson 2 beam

The same Lesson 2 design can be exported to Abaqus by switching the backend and choosing a hexahedral mesh:

hex_settings = pvc.SimulationHexMeshSettings()
hex_settings.voxel_size = pv.Vec3(1.5, 1.5, 1.5)

abaqus_settings = pvc.SimulationCompilerSettings()
abaqus_settings.output_directory = "output"
abaqus_settings.file_prefix = "mechanical_hex"
abaqus_settings.backend = pvc.SimulationBackend.ABAQUS_INP
abaqus_settings.mesh_kind = pvc.SimulationMeshKind.HEX
abaqus_settings.random_seed = 7
abaqus_settings.direct_attributes = [
    pv.DefaultAttributes.MODULUS,
    pv.DefaultAttributes.POISSONS_RATIO,
]
abaqus_settings.hex_settings = hex_settings

pvc.SimulationCompiler(root, abaqus_settings).compile()

Think of the Abaqus path as the same mesh-and-attributes export idea written into .inp form instead of an XDMF/H5 bundle.

Lesson 3: Solving the exported beam in FEniCSx

The script examples/compilers/simulation/03_fenicsx_load_exported_design.py is the full one-shot workflow. It builds a second graded beam inside the same script, exports the FEniCSx XDMF/H5 bundle, reloads the exported cell-wise material fields inside DOLFINx, and solves a small-strain static cantilever problem.

Lesson 3 intentionally uses a different beam than Lesson 2. In this solved cantilever example, both modulus and poissons_ratio ramp along the beam length so the constitutive variation follows the loading direction.

Install notes:

conda create -n fenicsx -c conda-forge fenics-dolfinx mpi4py h5py numpy
conda activate fenicsx

If you already have a working DOLFINx environment, h5py and numpy can also be installed with pip inside that environment.

OpenVCAD previews for the Lesson 3 beam

The simulation script builds its own beam before exporting it to FEniCSx. These previews show the exact OpenVCAD fields used by the solve:

OpenVCAD preview — Lesson 3 modulus

OpenVCAD preview — Lesson 3 poissons_ratio

The lesson-3 beam definition is intentionally small and direct:

def build_design():
    beam = pv.RectPrism(pv.Vec3(0, 0, 0), pv.Vec3(40.0, 12.0, 12.0))
    beam.set_attribute(
        pv.DefaultAttributes.MODULUS,
        pv.FloatAttribute("1200 + 800 * clamp((x + 20.0) / 40.0, 0, 1)")
    )
    beam.set_attribute(
        pv.DefaultAttributes.POISSONS_RATIO,
        pv.FloatAttribute("0.20 + 0.15 * clamp((x + 20.0) / 40.0, 0, 1)")
    )
    return beam

Governing equations

The solve is the standard 3D isotropic linear-elastic form with a spatially varying modulus E(x) and Poisson ratio nu(x):

\[ \varepsilon(u) = \mathrm{sym}(\nabla u) \]

\[ \sigma(u) = 2\mu(x)\varepsilon(u) + \lambda(x)\,\mathrm{tr}(\varepsilon(u)) I \]

with Lame parameters reconstructed from the exported OpenVCAD fields:

\[ \mu(x) = \frac{E(x)}{2(1 + \nu(x))} \qquad \lambda(x) = \frac{E(x)\nu(x)}{(1 + \nu(x))(1 - 2\nu(x))} \]

The weak form is:

\[ \int_{\Omega} \sigma(u) : \varepsilon(v)\,dx = \int_{\Gamma_{\mathrm{load}}} t \cdot v\,ds \]

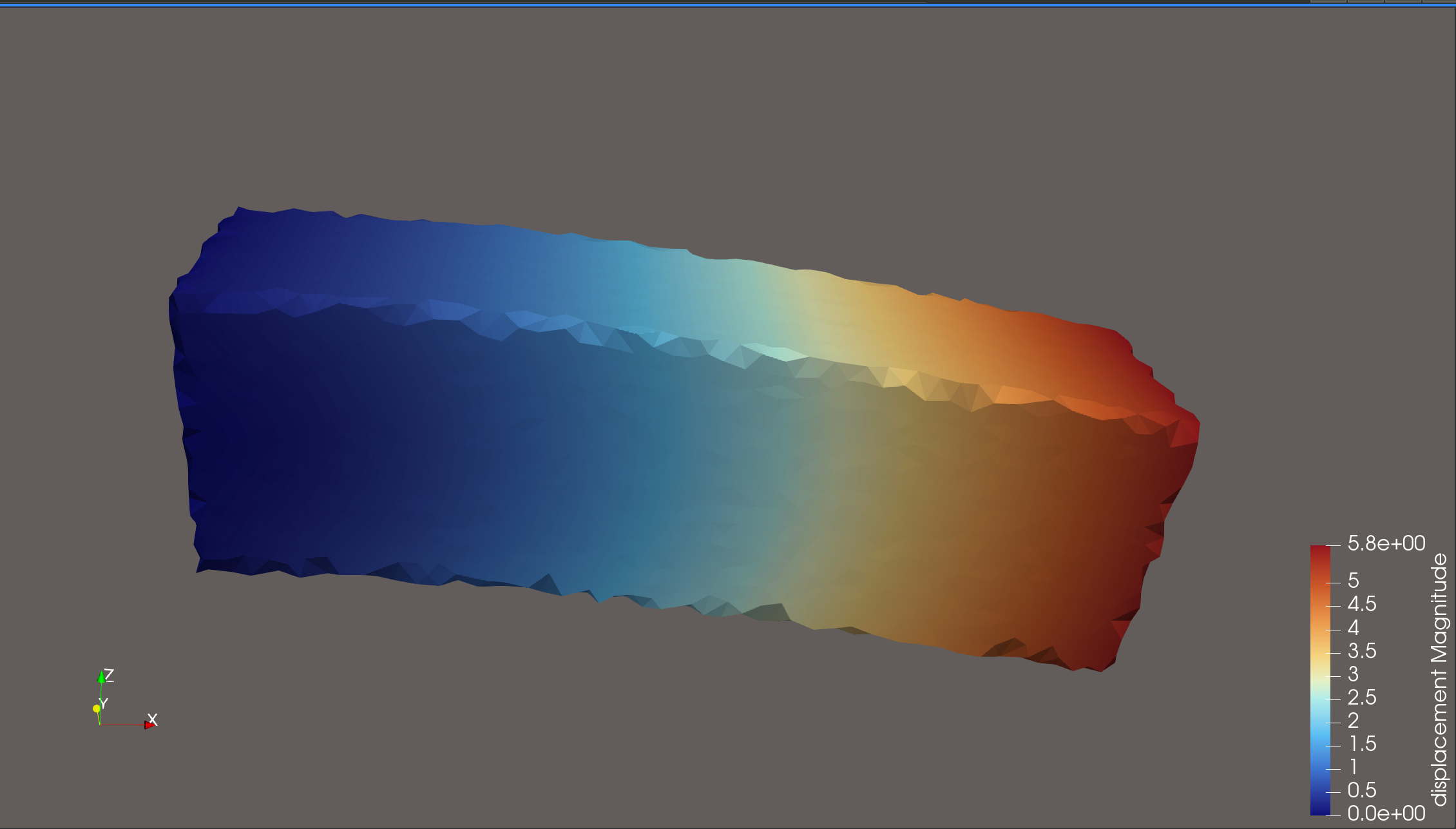

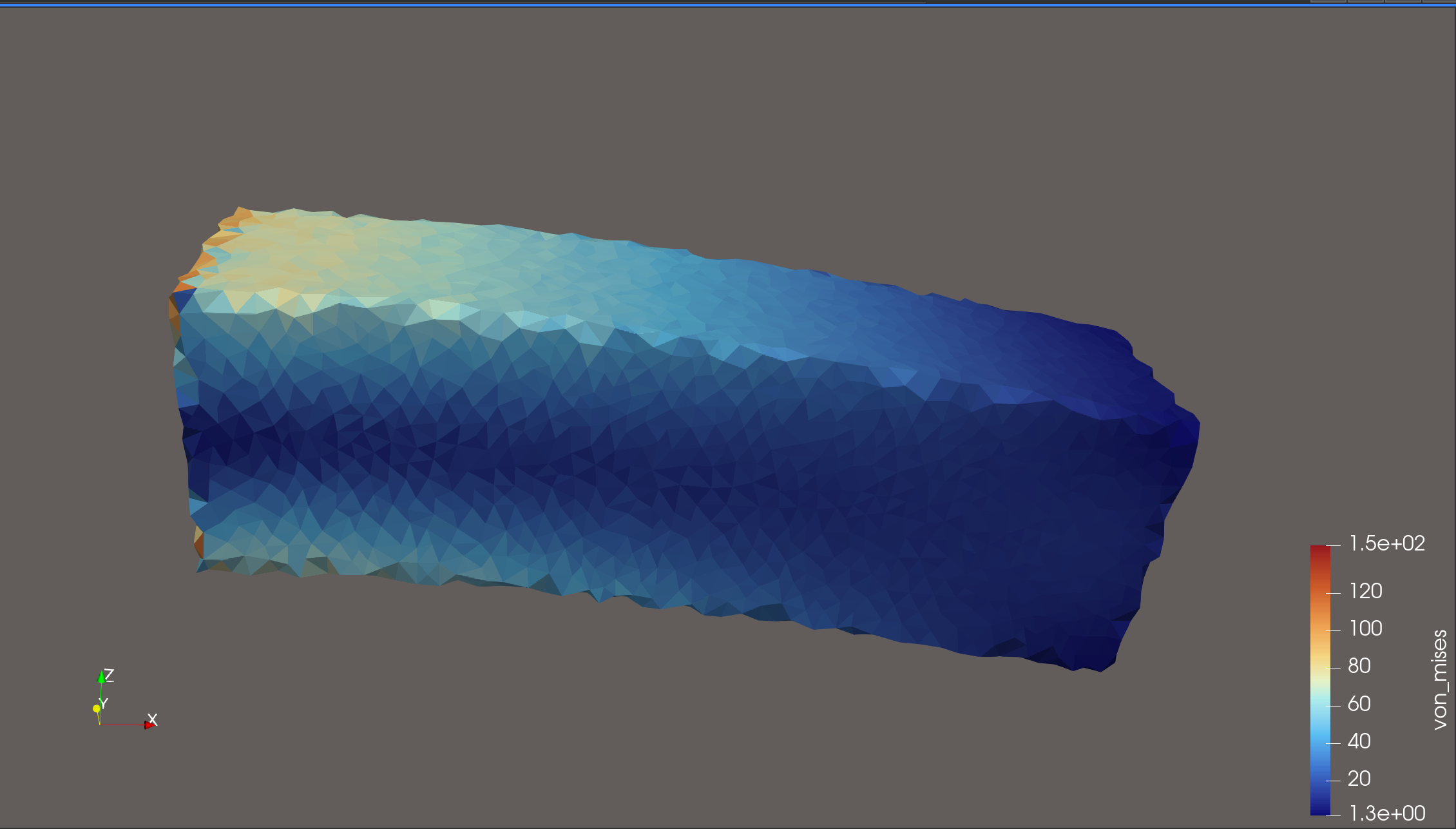

with the left beam face fixed (u = 0) and a uniform end traction t = (0, 0, -5) applied on the right beam face.

Because the exported tetrahedral surface is slightly perturbed from the exact analytic box, the script locates the left and right beam faces using a small 0.05 mm threshold around the mesh bounding box instead of relying on exact x == min/max comparisons.

Key implementation snippets

The full script lives at examples/compilers/simulation/03_fenicsx_load_exported_design.py. The snippets below show the important stages without reproducing the whole file.

1. Export once on rank 0

export_error = None
if comm.rank == 0:
    try:
        root = build_design()
        fenics_settings = pvc.SimulationCompilerSettings()
        fenics_settings.output_directory = output_dir
        fenics_settings.file_prefix = "simulation_results"
        fenics_settings.backend = pvc.SimulationBackend.FENICSX_XDMF
        fenics_settings.mesh_kind = pvc.SimulationMeshKind.TET
        fenics_settings.direct_attributes = [
            pv.DefaultAttributes.MODULUS,
            pv.DefaultAttributes.POISSONS_RATIO,
        ]
        pvc.SimulationCompiler(root, fenics_settings).compile()
    except Exception as exc:
        export_error = str(exc)

export_error = comm.bcast(export_error, root=0)
if export_error is not None:
    raise RuntimeError(f"OpenVCAD export failed on MPI rank 0: {export_error}")

2. Reload the exported cell fields with MPI-safe cell indexing

The example uses beam_mesh.topology.original_cell_index so each MPI rank pulls the correct subset of the exported cell arrays back into its local DG0 storage.

with XDMFFile(comm, xdmf_path, "r") as xdmf:
    beam_mesh = xdmf.read_mesh(name="OpenVCADMesh")

cell_space = fem.functionspace(beam_mesh, ("DG", 0))
modulus = fem.Function(cell_space, name="modulus")
poissons_ratio = fem.Function(cell_space, name="poissons_ratio")

with h5py.File(h5_path, "r") as h5:
    modulus_data = np.asarray(h5["/CellData/modulus"])
    poissons_ratio_data = np.asarray(h5["/CellData/poissons_ratio"])

original_cell_index = np.asarray(beam_mesh.topology.original_cell_index, dtype=np.int64)
modulus.x.array[:] = modulus_data[original_cell_index]
poissons_ratio.x.array[:] = poissons_ratio_data[original_cell_index]

modulus.x.scatter_forward()
poissons_ratio.x.scatter_forward()

3. Solve and patch the exported file in place

After reloading the DG0 fields, the script reconstructs the Lam’e parameters, solves the cantilever problem, evaluates DG0 von Mises stress, gathers the result arrays to rank 0, and updates the original OpenVCAD export in place. That means simulation_results.xdmf keeps the same mesh but gains two new fields:

• displacement as a node-centered vector field

• von_mises as a cell-centered scalar field

Run the full one-shot workflow with the fenicsx environment active:

conda activate fenicsx
python examples/compilers/simulation/03_fenicsx_load_exported_design.py

ParaView inspection workflow

1. Open simulation_results.xdmf

2. Click Apply

3. Switch the coloring dropdown between modulus, poissons_ratio, displacement, and von_mises

4. Use Warp By Vector with displacement if you want a deformed beam view

ParaView — displacement magnitude result

ParaView — von Mises stress result

Practical settings reference

Setting	Meaning
output_directory	Folder where the compiler writes the exported files.
file_prefix	Prefix used for the written files.
backend	Output family such as FENICSX_XDMF or ABAQUS_INP.
mesh_kind	Element family: HEX or TET.
hex_settings.voxel_size	Regular hexahedral cell size in millimeters.
tet_fixed_settings.facet_size	Surface triangle size target for fixed tet meshing.
tet_fixed_settings.facet_distance	Surface approximation tolerance for fixed tet meshing.
tet_fixed_settings.cell_size	Interior tetrahedral size target.
random_seed	Seed used for deterministic stochastic material assignment.
material_defs	Base material definitions used when exporting volume_fractions.
direct_attributes	List of scalar attributes to export directly as cell data.

Further examples

• examples/compilers/simulation/01_volume_fractions_export.py — stochastic material assignment plus raw volume-fraction datasets

• examples/compilers/simulation/02_direct_mechanical_properties_export.py — export-only direct scalar mechanical fields with poissons_ratio varying through z

• examples/compilers/simulation/03_fenicsx_load_exported_design.py — self-contained DOLFINx/FEniCSx cantilever solve with both elastic fields varying along x
