Attribute Modifier and Resolver Guide

This guide shows how to use pv.AttributeModifier and pyvcad_attribute_resolver to convert one attribute field into another. The core idea is that OpenVCAD designs often begin with a design-intent attribute such as DENSITY or SHORE_HARDNESS, while downstream compiler workflows may need a different attribute such as TEMPERATURE or FLOW_RATE.

AttributeModifier is the direct tool for that job. The resolver sits one level above it and automates the same wrapping pattern when a conversion chain is already registered. It assumes you already know how to create OpenVCAD geometry, attach attributes, and build gradients from the Getting Started and Functional grading guides.

All runnable scripts for this guide live in examples/3_attribute_resolver/.

Lesson 1: Manual Conversion with AttributeModifier

pv.AttributeModifier is the core OpenVCAD tool for attribute-to-attribute conversion. It wraps a child node and uses a converter to produce one or more new attributes from the attributes already present on that child.

This exists because many workflows need a second attribute that is derived from the first one rather than modeled directly. A design might carry the field you want to reason about physically, while the next stage in the workflow needs a different field that is easier to render, simulate, or compile.

For example:

• a measured or designed DENSITY field may need to become TEMPERATURE

• a TEMPERATURE field may need to become FLOW_RATE

This is the right tool when:

• you already know the exact conversion you want

• you have one local conversion step to apply (you can chain them if you want to have multiple computed attributes)

• you want to inspect or prototype a lookup table directly

In practice, using an AttributeModifier means:

1. attach one or more input attributes to a design

2. build a converter such as LookupTableConverter or ExpressionConverter

3. wrap the design in pv.AttributeModifier(converter, child)

The example below uses the foaming PLA flow-compensation data directly. A temperature gradient is attached to a bar, then a LookupTableConverter turns that temperature into FLOW_RATE.

import pyvcad as pv
import pyvcad_rendering as viz

# Manual LW-PLA flow compensation using a single AttributeModifier.
bar_length = 180.0
bar_width = 12.0
bar_height = 12.0
temperature_expr = "max(min((x/3 + 236), 256), 220)"

foaming_pla_flow_compensation = [
    (220, 1.42),
    (224, 1.23),
    (228, 1.08),
    (232, 0.98),
    (236, 0.86),
    (240, 0.76),
    (244, 0.72),
    (248, 0.69),
    (252, 0.67),
    (256, 0.66),
]

flow_entries = [pv.LookupTableEntry(kv[0], kv[0], kv[1])
                for kv in foaming_pla_flow_compensation]
flow_converter = pv.LookupTableConverter(
    input_attributes=[pv.DefaultAttributes.TEMPERATURE],
    output_attributes=[pv.DefaultAttributes.FLOW_RATE],
    entries=flow_entries,
    mode=pv.InterpolationMode.LINEAR,
)

bar = pv.RectPrism(pv.Vec3(0, 0, 0), pv.Vec3(bar_length, bar_width, bar_height))
bar.set_attribute(pv.DefaultAttributes.TEMPERATURE,
                  pv.FloatAttribute(temperature_expr))

root = pv.AttributeModifier(flow_converter, bar)
viz.Render(root)

Run it with:

python examples/3_attribute_resolver/01_attribute_modifier_flow_rate.py

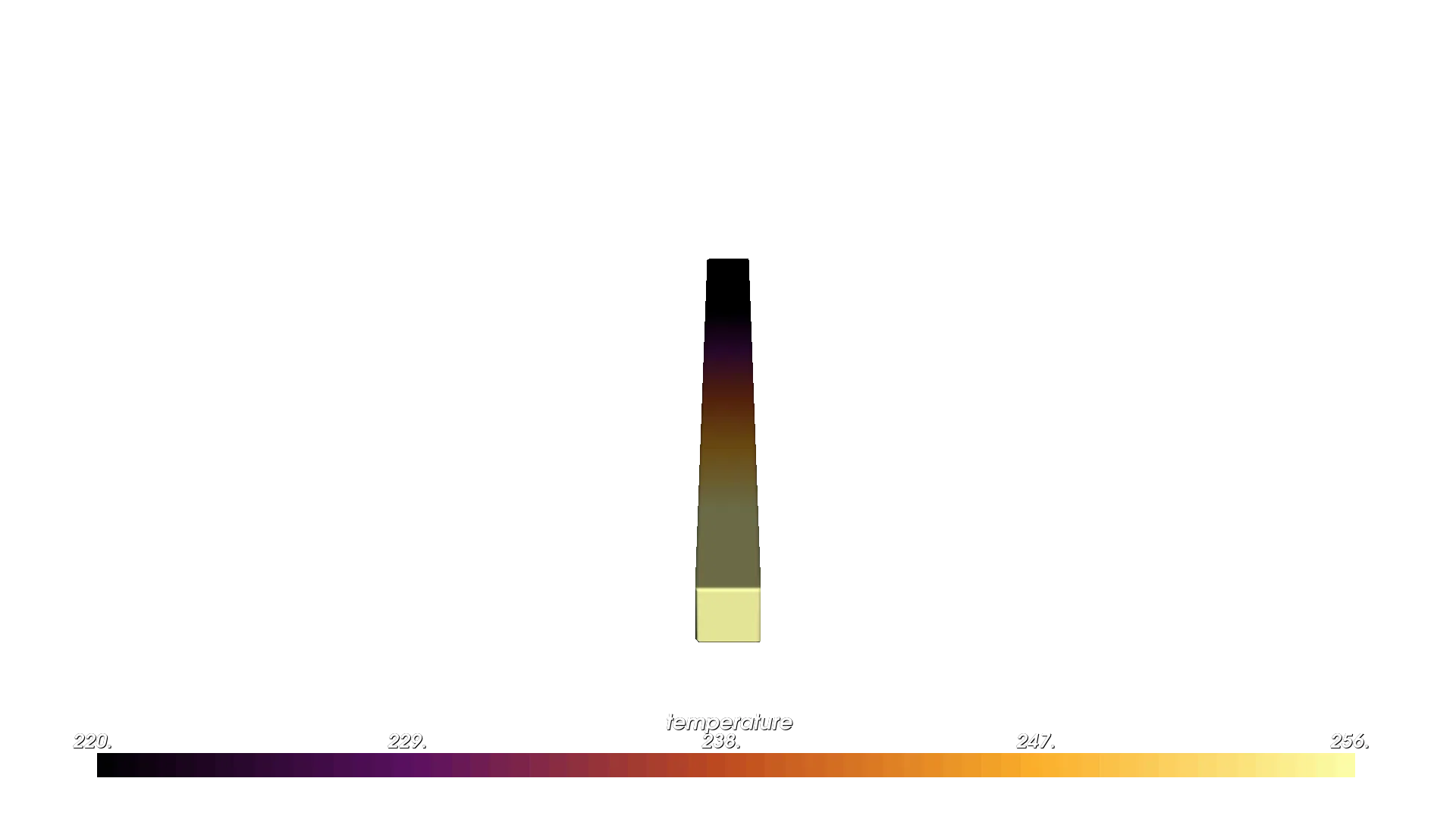

Temperature field

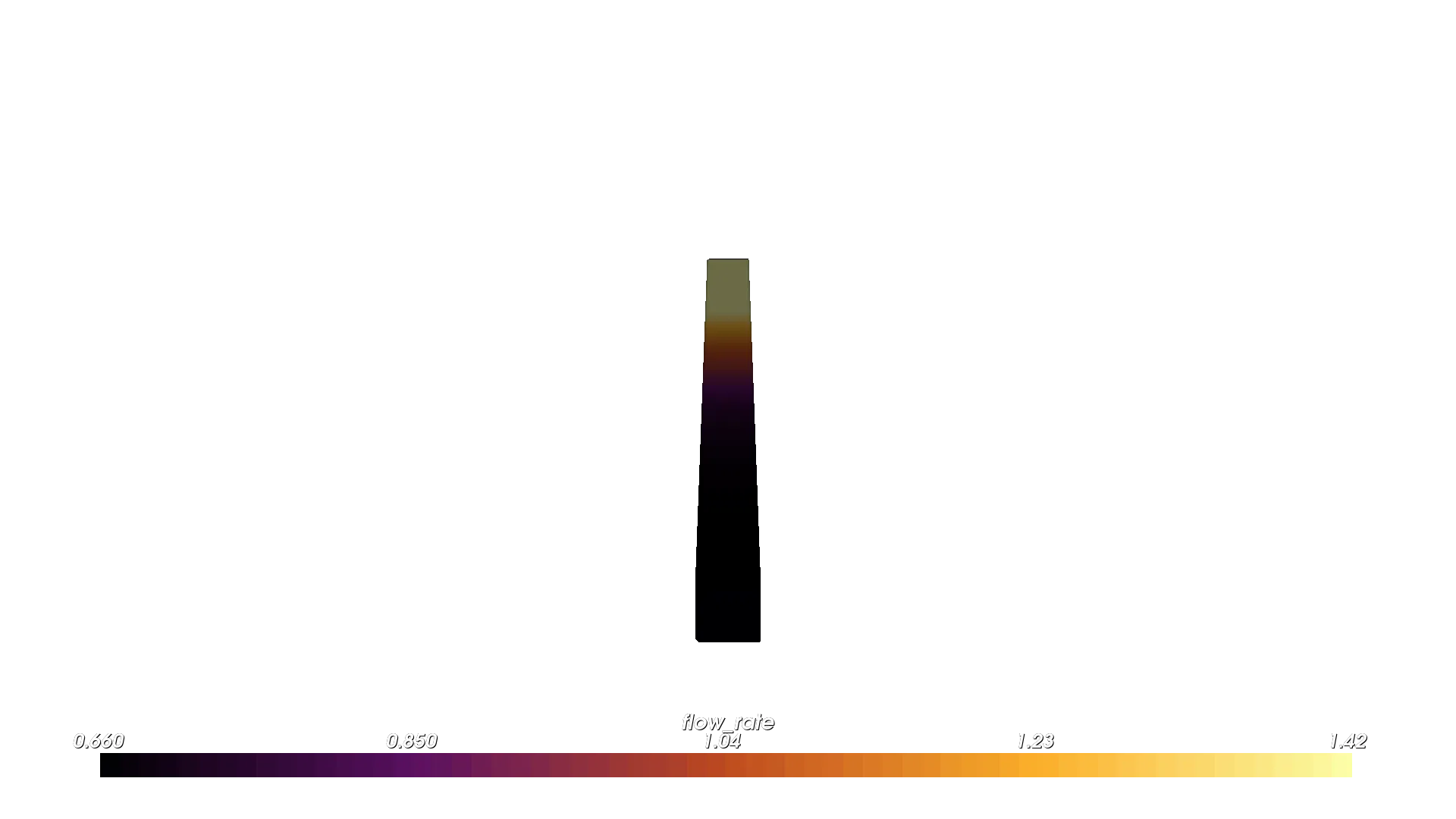

Flow-rate field

This manual pattern works well, but it has an obvious downside: the user has to know the conversion data, build the converter, and explicitly wrap the tree in the right order.

The important thing to notice is that the original TEMPERATURE field still defines the design intent, while the new FLOW_RATE field is derived from it. That separation is exactly why AttributeModifier is useful: it lets you keep the input field that is meaningful for modeling, while layering on the output field required by the next workflow.

Why Add the Resolver

The resolver removes the repetitive parts of that manual workflow.

Without it, each design has to answer these questions up front:

1. Which conversion data applies to this material?

2. What order should the conversions run in?

3. Which AttributeModifier nodes need to be wrapped around the design?

pyvcad_attribute_resolver keeps a graph of registered conversions and solves for the shortest valid path to the attributes you ask for. In practice, that means you can keep modeling with design-intent attributes like DENSITY or SHORE_HARDNESS, then ask for downstream attributes such as TEMPERATURE and FLOW_RATE only when you need them.

The examples in this guide are simplified versions of the foaming-filament compensation workflow shown in examples/applications/foaming_filaments/compensation_demo/compensation_pla_demo.py.

How adapt() Works

At the Python-user level, resolver.adapt(...) does four things:

1. It looks at the attributes already present on your design.

2. It searches the registered conversion graph for a valid path to each requested target.

3. It builds the required converters from the selected module data.

4. It wraps your tree in the needed pv.AttributeModifier nodes for you.

That last point is the key connection to Lesson 1. The resolver does not replace AttributeModifier with a different mechanism. It automates the same wrapping pattern you would otherwise write by hand, which is why this is really a guide about both tools together.

For example, when you write:

root = resolver.adapt(bar, ["temperature", "flow_rate"], tags=["foaming_pla"])

the foaming PLA workflow behaves as if you had manually built:

1. one AttributeModifier that converts density -> temperature

2. a second AttributeModifier that converts temperature -> flow_rate

The advantage is that your design script only states the attribute you have and the attributes you want.

Lesson 2: Let the Resolver Handle a Known Path

If your design already contains TEMPERATURE, the foaming PLA module can provide the TEMPERATURE -> FLOW_RATE step for you. Compared with Lesson 1, the lookup table and AttributeModifier are gone from the script.

import pyvcad as pv
import pyvcad_rendering as viz
import pyvcad_attribute_resolver as resolver

# The resolver replaces the manual lookup-table wiring from Lesson 1.
resolver.clear_conversions()
resolver.register_pla_conversions()

bar_length = 180.0
bar_width = 12.0
bar_height = 12.0
temperature_expr = "max(min((x/3 + 236), 256), 220)"

bar = pv.RectPrism(pv.Vec3(0, 0, 0), pv.Vec3(bar_length, bar_width, bar_height))
bar.set_attribute(pv.DefaultAttributes.TEMPERATURE,
                  pv.FloatAttribute(temperature_expr))

root = resolver.adapt(bar, ["flow_rate"], tags=["foaming_pla"])
viz.Render(root)

Run it with:

python examples/3_attribute_resolver/02_resolver_temperature_to_flow_rate.py

Flow-rate field

The important line is:

root = resolver.adapt(bar, ["flow_rate"], tags=["foaming_pla"])

It says:

• use the current design tree as the starting point

• make sure flow_rate exists on the result

• only consider foaming PLA conversions while solving (we also have a temperature -> flow_rate path that is for foaming TPU, so we need to distinguish)

Lesson 3: Start from Design Intent

The resolver becomes more useful when your model starts with a design-intent field instead of a machine-facing one. In the next example, the bar only defines DENSITY. The resolver then derives both TEMPERATURE and FLOW_RATE using the built-in LW-PLA conversion chain.

TEMPERATURE and FLOW_RATE are both required by the SlicerProjectCompiler to print with foaming PLA or TPU. After compilation and slicing, the resulting g-code that is sent to the printer grades temperature and flow rates to ensure the right foaming rate and extrusion properties.

import pyvcad as pv
import pyvcad_rendering as viz
import pyvcad_attribute_resolver as resolver

# Start from design intent (density) and let the resolver derive the
# machine-facing attributes needed by the foaming PLA workflow.
resolver.register_pla_conversions()

bar_length = 180.0
bar_width = 12.0
bar_height = 12.0
density_min = 0.50
density_max = 1.00
density_slope = (density_min - density_max) / bar_length
density_offset = (density_min + density_max) / 2.0
density_expr = (
    f"max(min({density_slope:.8f} * x + {density_offset:.8f}, "
    f"{density_max:.8f}), {density_min:.8f})"
)

bar = pv.RectPrism(pv.Vec3(0, 0, 0), pv.Vec3(bar_length, bar_width, bar_height))
bar.set_attribute(pv.DefaultAttributes.DENSITY, pv.FloatAttribute(density_expr))

root = resolver.adapt(bar, ["temperature", "flow_rate"], tags=["foaming_pla"])
viz.Render(root)

Run it with:

python examples/3_attribute_resolver/03_resolver_density_to_flow_rate.py

The built-in LW-PLA module carries two datasets:

• density -> temperature

• temperature -> flow_rate

This data is provided in under resolver/src/pyvcad_attribute_resolver/modules/foaming/data.py in the repo.

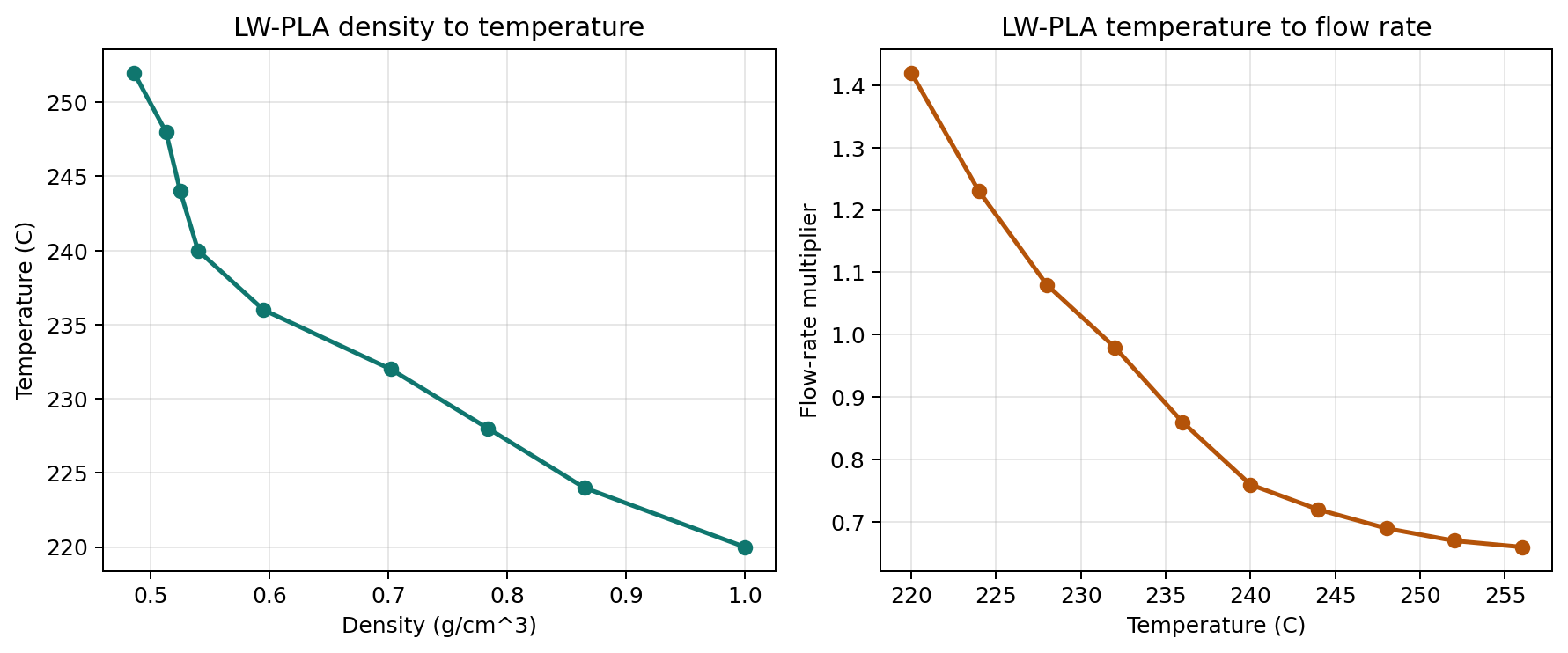

Built-in LW-PLA conversion curves

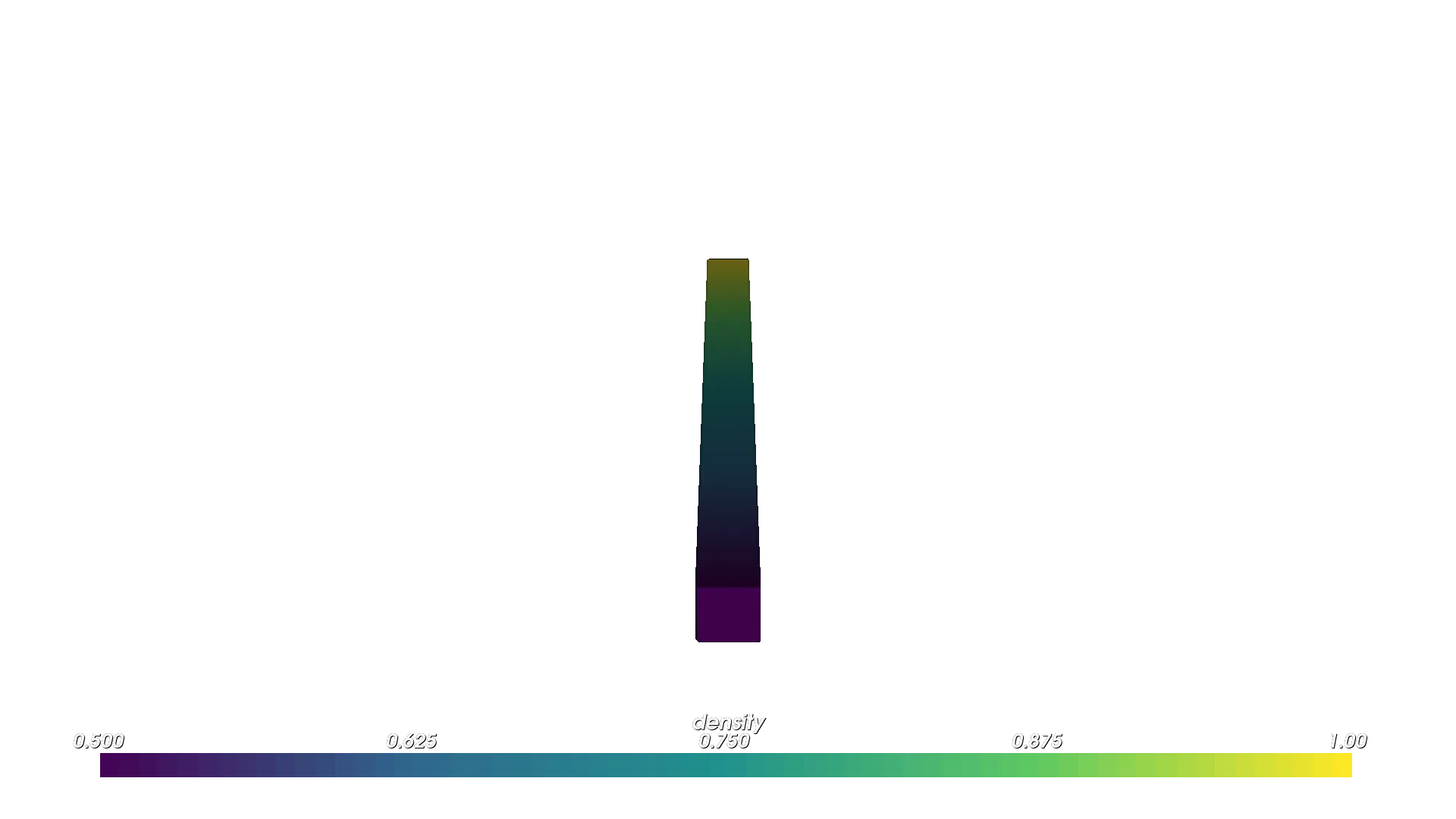

Design intent (density)

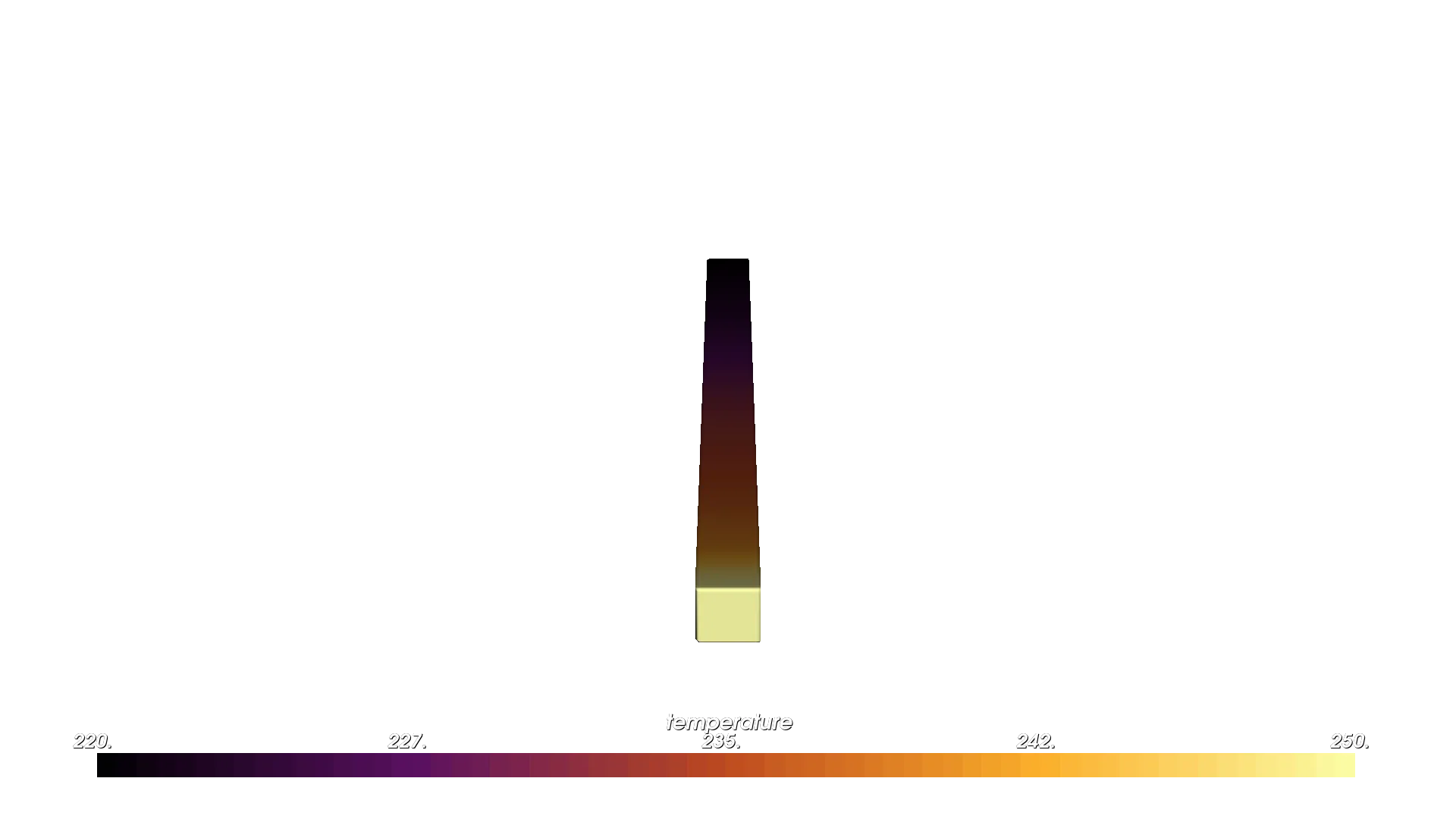

Resolved temperature

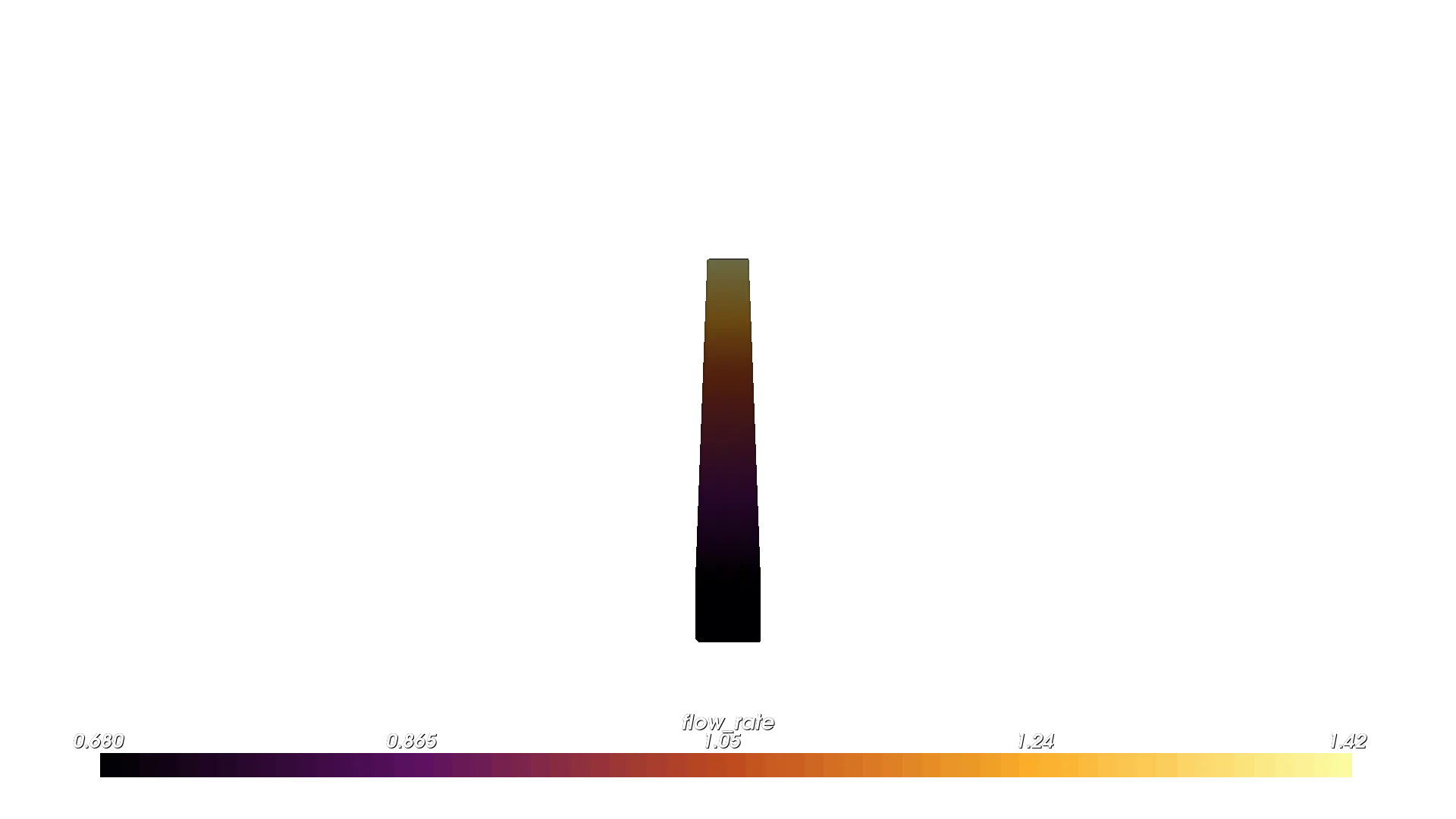

Resolved flow rate

This is the main reason to use the resolver: the design can stay focused on the attribute you actually want to control, while the machine-facing attributes are derived later from registered material knowledge.

Built-in Modules and Tags

The resolver package exposes a small set of registration helpers:

Function	What it registers
resolver.register_foaming_conversions()	All built-in foaming conversions
resolver.register_pla_conversions()	LW-PLA conversions only
resolver.register_tpu_conversions()	VarioShore TPU conversions only
resolver.register_j750_shore_hardness_conversions()	J750 shore-hardness to volume-fractions conversions
resolver.register_j750_modulus_toughness_conversions()	J750 modulus+toughness to volume-fractions inverse-design conversion
resolver.list_modules()	Names of installed resolver modules

For the built-in foaming module, the key tags are:

Tag	Conversion chain
foaming_pla	density -> temperature -> flow_rate
foaming_tpu	shore_hardness -> temperature -> flow_rate and density -> temperature -> flow_rate
j750_shore_hardness	shore_hardness -> volume_fractions
j750_modulus_toughness	modulus + toughness -> volume_fractions

Tags matter because multiple modules can define the same target attribute. If you register more than one material family and the resolver sees multiple equally valid shortest paths, it raises AmbiguousPathError instead of guessing.

For example:

resolver.clear_conversions()
resolver.register_foaming_conversions()
root = resolver.adapt(design, ["temperature", "flow_rate"], tags=["foaming_tpu"])

J750 Modulus and Toughness Inverse Design

The j750_modulus_toughness module is different from the one-input examples above because it resolves a printer-ready volume_fractions field from two design-intent attributes at once:

• MODULUS in MPa

• TOUGHNESS in MJ/m^3

Internally, the bundled module uses a lookup table generated from a more complex fitting model for J750 material trio:

• Agilus30

• Vero

• Model Cleanser

The shipped table uses:

• table_size=128

• max_liquid_volume=0.30

• FAIL_THRESHOLD=0.05

You can regenerate the table with a different cleanser cap or a different grid resolution:

import pyvcad_attribute_resolver as resolver

resolver.generate_j750_modulus_toughness_lookup_table(
    output_path="j750_modulus_toughness_custom.json",
    table_size=192,
    max_liquid_volume=0.25,
    fail_threshold=0.05,
)

Then register that table for runtime use:

resolver.register_j750_modulus_toughness_conversions(
    lookup_table_path="j750_modulus_toughness_custom.json",
)

The target domain is sampled on a rectangular grid in log10(modulus [MPa]) in [-1.0, 3.5] and toughness [MJ/m^3] in [0.0, 6.5], but not every point in that rectangle is physically reachable. The generator stores a separate validity mask for those cells, and the runtime converter raises immediately if a requested modulus/toughness pair falls on an invalid point or would require interpolation across an invalid cell.

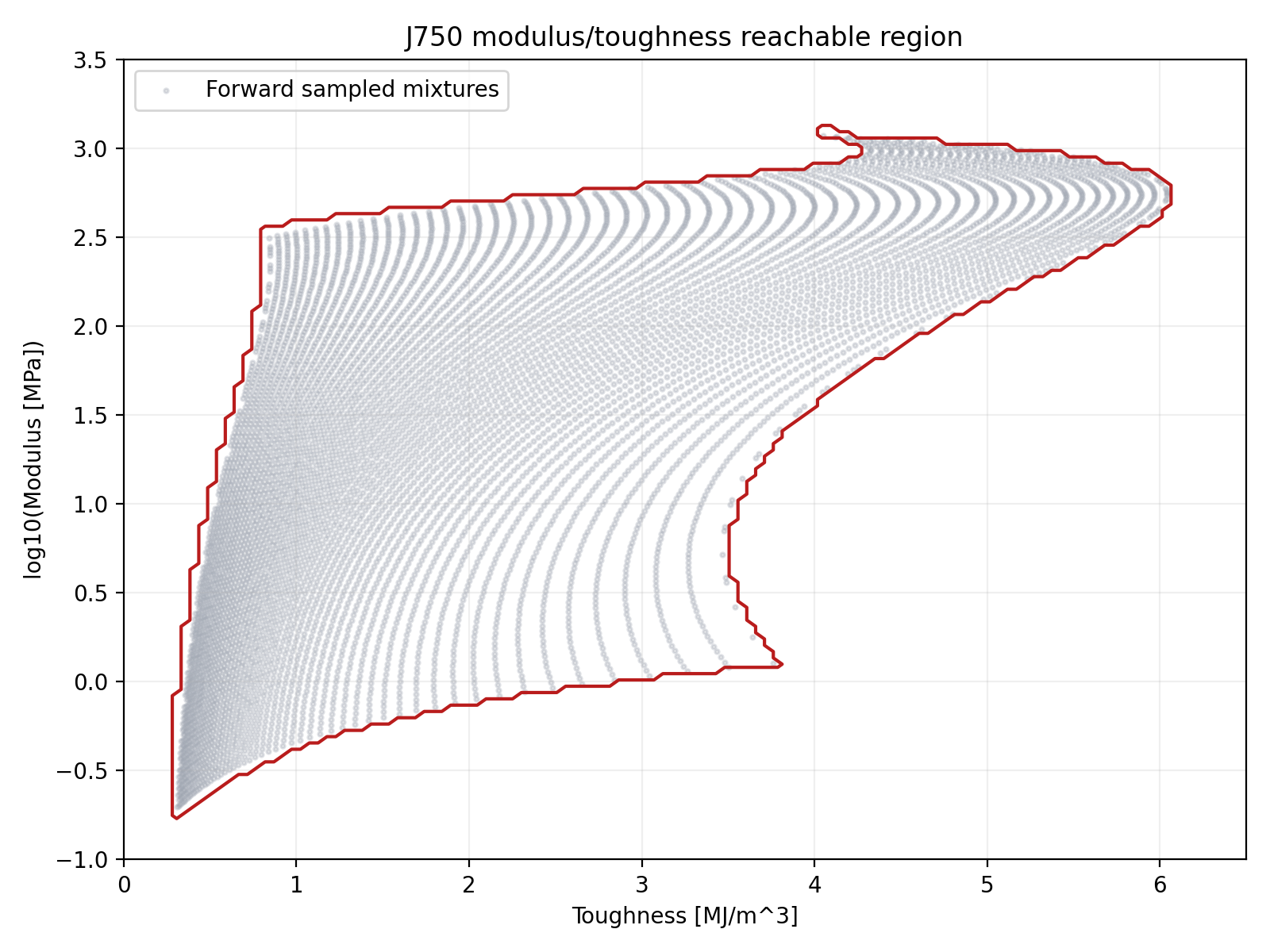

J750 modulus/toughness reachable region

Practical Notes

• adapt() only adds targets that are missing. If your design already has temperature, asking for ["temperature", "flow_rate"] leaves the existing temperature field in place and only resolves flow_rate.

• Ask for all downstream attributes you need in one call. For example, ["temperature", "flow_rate"] lets the resolved temperature become available immediately for flow_rate.

• If no path exists, the resolver raises NoPathError.

• If multiple equal paths remain after filtering, the resolver raises AmbiguousPathError.

• For custom module authoring and lower-level registration details, see resolver/README.md in the source tree.

Cross-compilation

Traditional cross-compilers take one source program and retarget it for multiple machines. The attribute resolver supports the same way of thinking: your OpenVCAD model can carry one design-intent field, then different resolver modules can compile that field into the machine-facing attributes required by different fabrication backends.

In this guide, the shared source language is shore_hardness.

• The foaming TPU workflow targets SlicerProjectCompiler, which needs temperature and flow_rate.

• The J750 workflow targets MaterialInkjetCompiler, which needs volume_fractions.

This is where model bounds matter. The two registered target models do not cover the same domain:

• Foaming TPU: 61.5A -> 92.5A

• J750: 30A -> 100A

To keep the same design valid for both targets without clamping, the example below uses a shared 62A -> 92A shore-hardness gradient. That range sits safely inside both models, so both compilations are genuinely using their learned conversions instead of flattening at the ends.

The full runnable demo lives in:

python examples/3_attribute_resolver/04_cross_compilation_shore_hardness.py

It writes:

• examples/3_attribute_resolver/output/cross_compilation_shore_hardness_tpu.3mf

• examples/3_attribute_resolver/output/cross_compilation_shore_hardness_j750_slices/

import os
import shutil

import pyvcad as pv
import pyvcad_attribute_resolver as resolver
import pyvcad_compilers as pvc
import pyvcad_rendering as viz

materials = pv.j750_materials

bar_length = 100.0
bar_width = 30.0
bar_height = 10.0

# Use the overlap between the two target models so the same design-intent field
# can be compiled without clamping on either backend.
shore_min = 62.0
shore_max = 92.0
shore_span = shore_max - shore_min
shore_expr = (
    f"max(min(({shore_span:.8f} * (x + {bar_length / 2.0:.8f}) / {bar_length:.8f}) + "
    f"{shore_min:.8f}, {shore_max:.8f}), {shore_min:.8f})"
)


def make_shore_hardness_bar():
    bar = pv.RectPrism(pv.Vec3(0.0, 0.0, 0.0), pv.Vec3(bar_length, bar_width, bar_height))
    bar.set_attribute(
        pv.DefaultAttributes.SHORE_HARDNESS,
        pv.FloatAttribute(shore_expr),
    )
    return bar


# Target 1: foaming TPU on filament hardware -> temperature + flow_rate
resolver.clear_conversions()
resolver.register_tpu_conversions()
slicer_root = resolver.adapt(
    make_shore_hardness_bar(),
    ["temperature", "flow_rate"],
    tags=["foaming_tpu"],
)

# Target 2: J750 inkjet hardware -> volume fractions
resolver.clear_conversions()
resolver.register_j750_shore_hardness_conversions(
    material_defs=materials,
    agilus_material="Agilus30Mgn",
    vero_material="VeroYellow",
)
inkjet_root = resolver.adapt(
    make_shore_hardness_bar(),
    ["volume_fractions"],
    tags=["j750_shore_hardness"],
)

root = slicer_root
viz.Render(root)

_here = os.path.dirname(os.path.abspath(__file__))
output_dir = os.path.join(_here, "output")
os.makedirs(output_dir, exist_ok=True)

profiles_dir = os.path.normpath(
    os.path.join(_here, "..", "applications", "foaming_filaments", "profiles")
)
printer_profile_path = os.path.join(profiles_dir, "prusa_mk4s_profile.ini")
filament_profile_path = os.path.join(profiles_dir, "ColorFabb_VarioShore_TPU.ini")

slicer_output_path = os.path.join(output_dir, "cross_compilation_shore_hardness_tpu.3mf")
slicer_compiler = pvc.SlicerProjectCompiler(
    slicer_root,
    pv.Vec3(0.25, 0.25, 0.25),
    slicer_output_path,
    10,
    printer_profile_path,
    filament_profile_path,
)
slicer_compiler.compile()

inkjet_output_dir = os.path.join(output_dir, "cross_compilation_shore_hardness_j750_slices")
if os.path.isdir(inkjet_output_dir):
    shutil.rmtree(inkjet_output_dir)
os.makedirs(inkjet_output_dir, exist_ok=True)

inkjet_compiler = pvc.MaterialInkjetCompiler(
    inkjet_root,
    pv.Vec3(0.15, 0.15, 0.15),
    inkjet_output_dir,
    "slice_",
    materials,
    0.0,
)
inkjet_compiler.compile()

The important idea is that the design-intent field stays the same, while the requested target attributes change with the backend:

• shore_hardness -> temperature -> flow_rate for foaming TPU filament printing

• shore_hardness -> volume_fractions for J750 inkjet slicing

That is the same source model being cross-compiled to two different target machines.

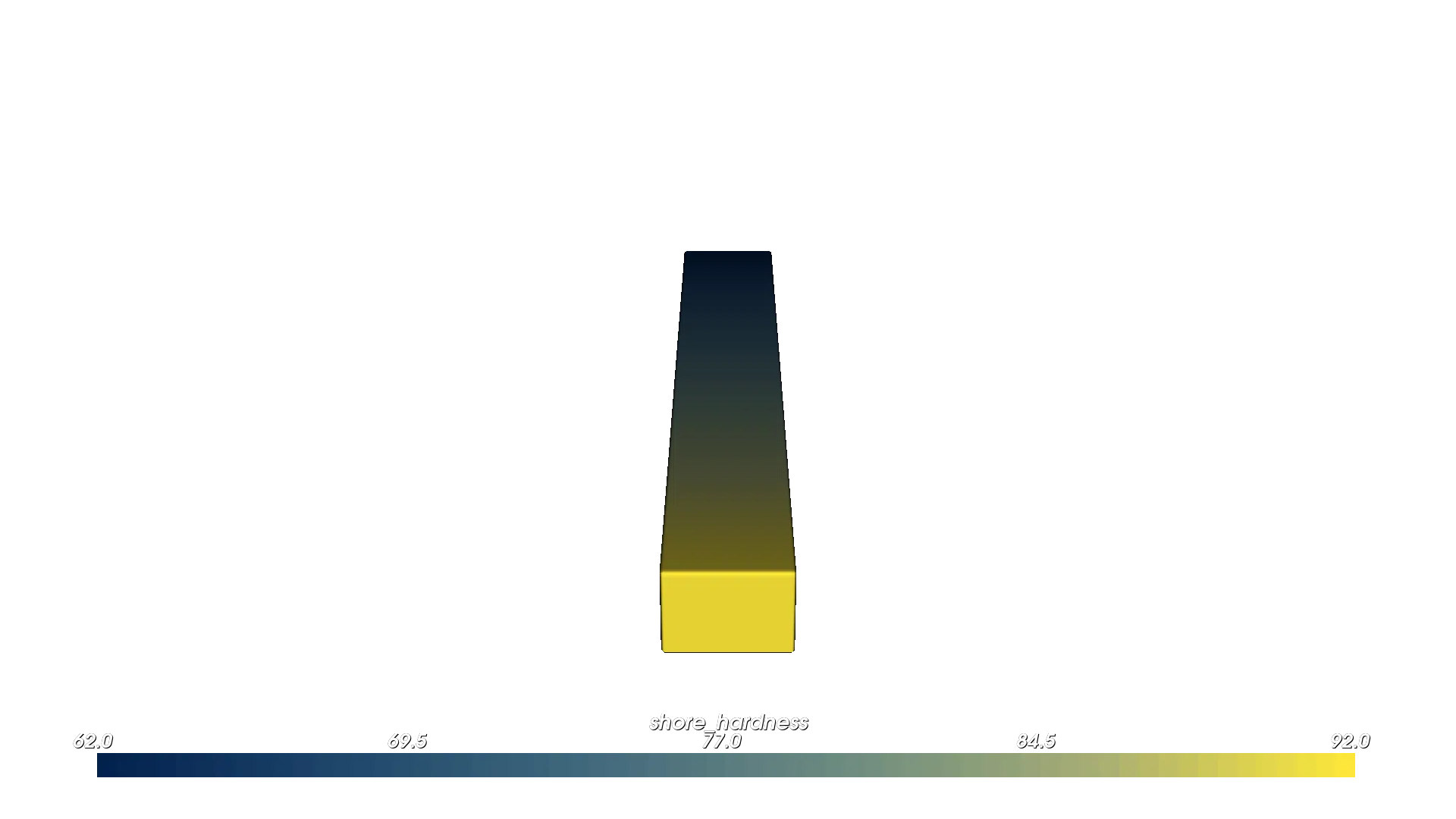

Shared source field: shore hardness

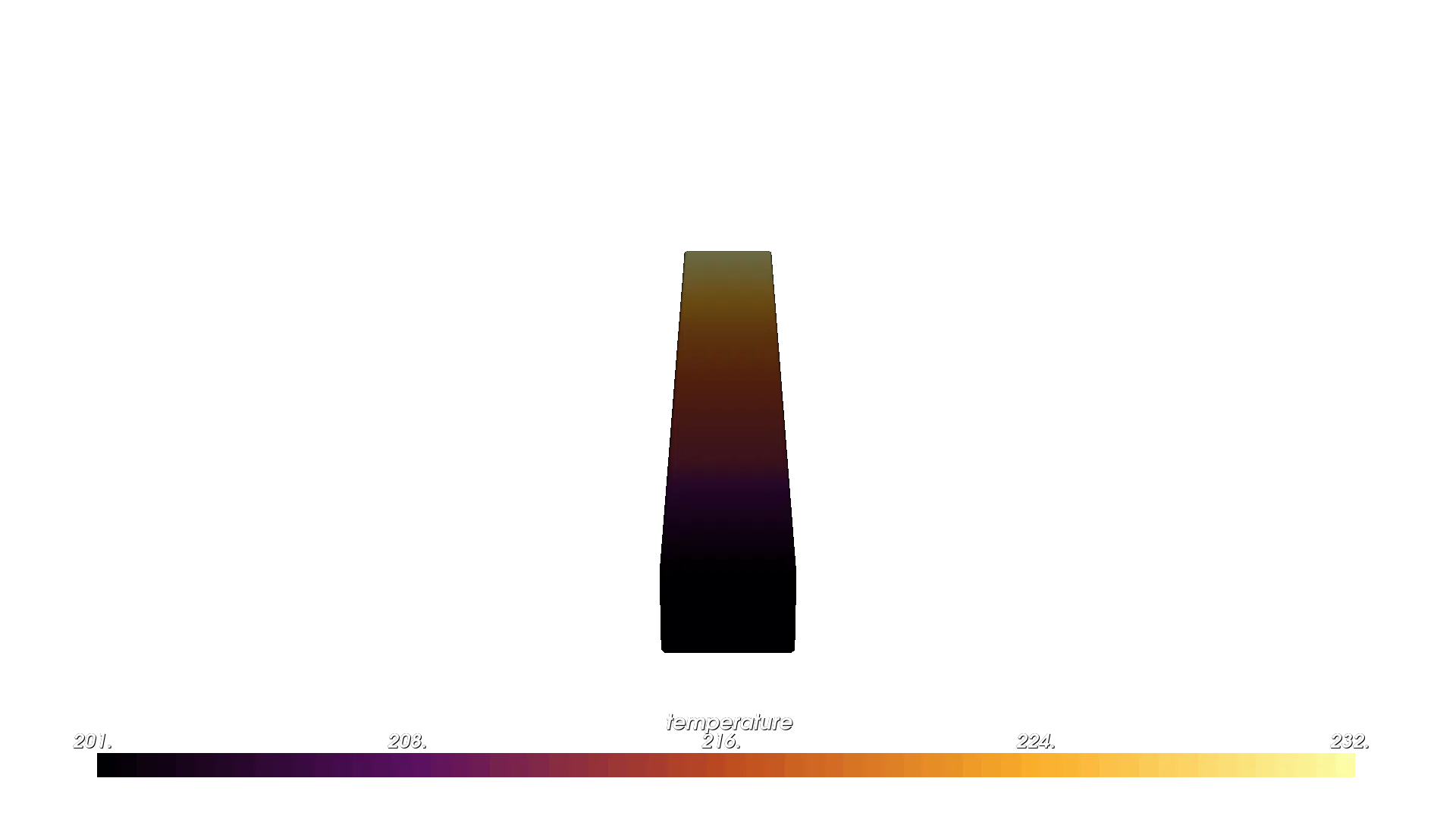

Foaming TPU target: temperature

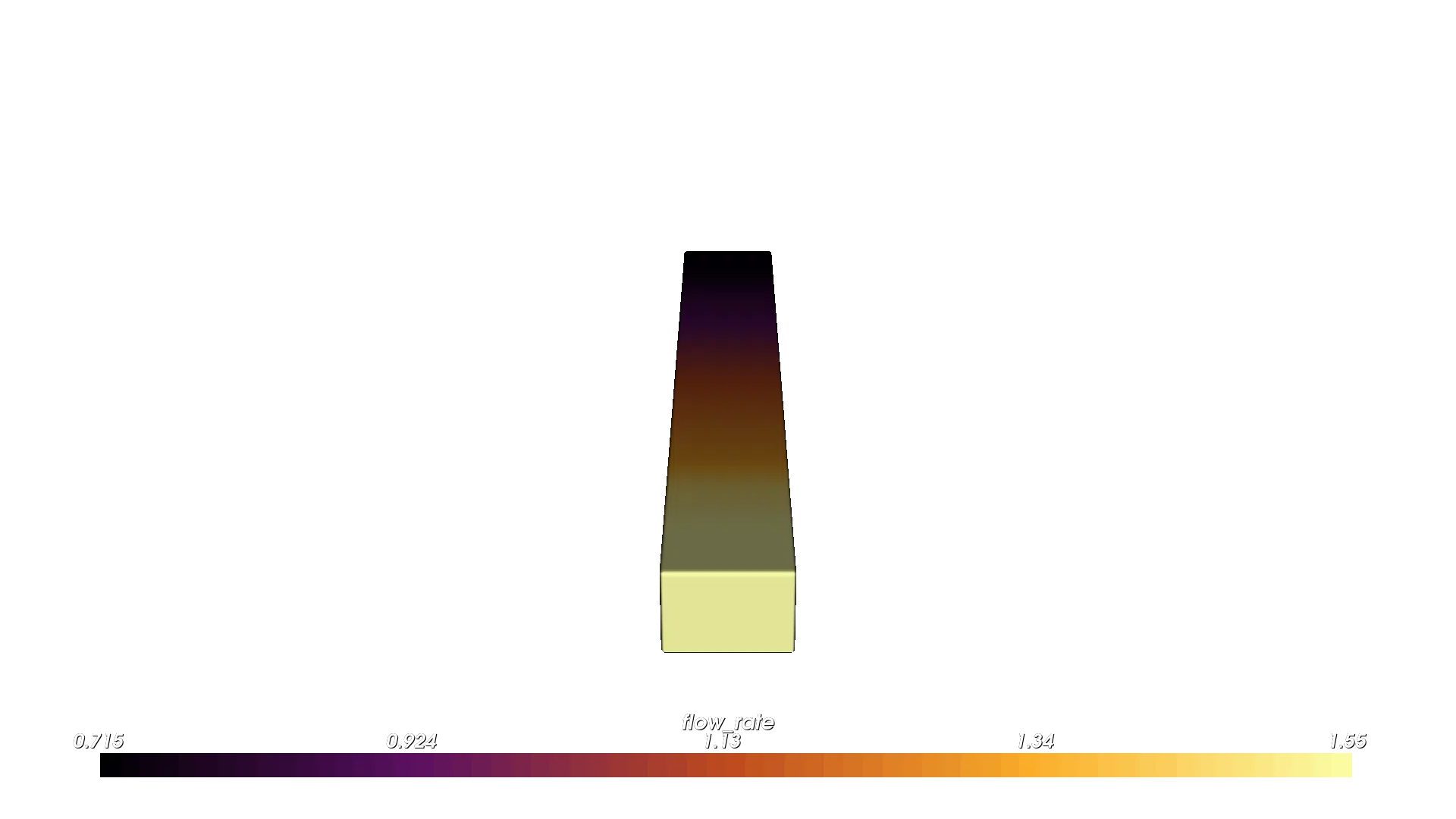

Foaming TPU target: flow rate

J750 target: volume fractions

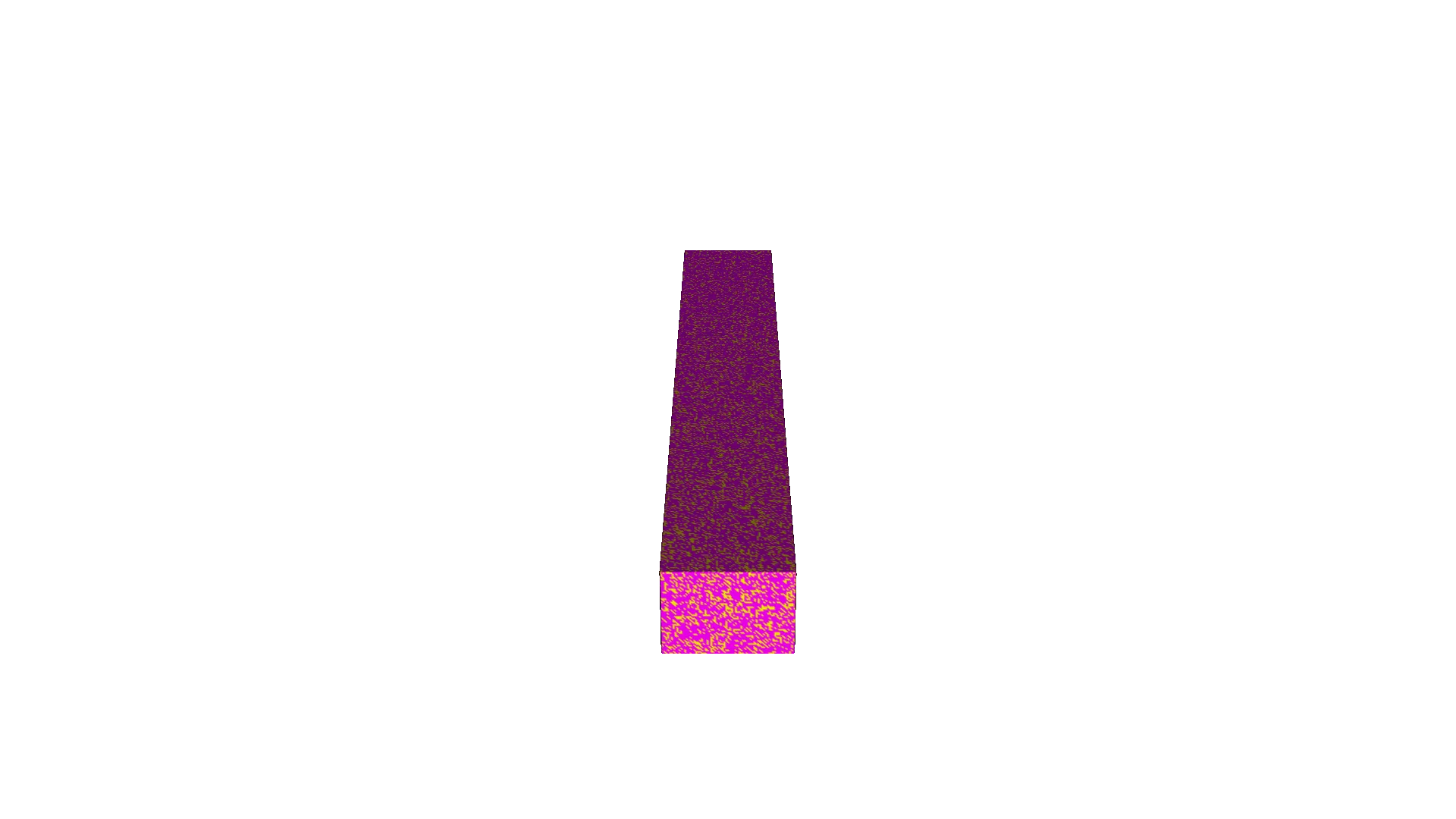

For that J750 volume-fractions render, we disable blending to see the actual voxels of material. The underlying compiled attribute is still continuous, but turning blending off makes the representative Agilus/Vero color shift easier to see. The relative distribution of yellow and magenta is changing based on the shore hardness.

If you widened that same source gradient beyond the shared overlap, the two target backends would stop agreeing on the active design space. The foaming TPU path would start clamping first, while the J750 path would keep producing new material mixes. Thinking in terms of compiler targets makes that tradeoff easier to reason about: one source language, multiple backends, different valid target ranges.
