Multi-material VAT

The MultiMaterialVatCompiler turns an OpenVCAD design with VOLUME_FRACTIONS into synchronized grayscale PNG stacks for a printer that can expose one layer in multiple resin vats. At every pixel, the compiler uses the local fractions as stochastic weights, selects at most one material, and activates only that material’s vat image.

This is different from encoding a mixture as grayscale. Volume fractions choose the vat. An optional scalar intensity channel controls the grayscale exposure after a vat has been selected.

The current folder and filename dialect follows the format supplied for MAAS, while the compiler’s design is useful for other synchronized multi-vat systems that accept the same image contract.

Output contract

Setting	Value
Image size	1280 × 800 pixels
Physical XY area	55.01 × 34.38 mm
Maximum Z height	150 mm
Layer thickness	0.05 mm by default; minimum 0.01 mm
Image encoding	8-bit grayscale PNG
Pixel meaning	0 is no exposure; 255 is full exposure
Placement	Centered in X/Y; the model’s bottom becomes layer 0000
Image mapping	No rotation or axis flip
Layer order	Bottom to top

Dual-vat output contains vat_a and vat_b. Quad-vat output also contains vat_c and vat_d. Every directory contains the same numbered layer range, including entirely black images when a vat is unused for a layer.

output/
├── vat_a/
│   ├── vata_layer_0000.png
│   └── vata_layer_0001.png
└── vat_b/
    ├── vatb_layer_0000.png
    └── vatb_layer_0001.png

Material assignment and intensity

Pass material names in vat order. In a dual system, ['red', 'blue'] maps red to Vat A and blue to Vat B. A quad system accepts one to four configured materials and emits black images for any remaining vats.

At each inside sample, the compiler:

1. reads VOLUME_FRACTIONS;

2. makes a seeded weighted choice among the configured materials and explicit void, when present;

3. reads the selected material’s optional <material_name>_intensity scalar;

4. writes that intensity to the selected vat and black to every other vat.

Intensity defaults to 1.0 and is clamped to [0, 1] before conversion with round(intensity * 255). For example, red_intensity controls only pixels assigned to the material named red. It does not change the probability that red is selected.

The random_seed makes the stochastic pattern reproducible. Repeating the same design and compiler settings with the same seed produces the same pixel assignments. Change the seed when you intentionally want another statistically equivalent distribution.

Examples

1. Basic two-material gradient

The first example builds a 20 × 10 × 4 mm red-blue prism. Its fractions grade from red on the left to blue on the right. Neither material defines an intensity channel, so every selected pixel uses full exposure.

"""
Multi-material VAT — basic two-material gradient
=================================================

Builds a rectangular prism with a red-to-blue material gradient, resolves its
volume fractions into synchronized Vat A and Vat B exposure masks, and opens
the interactive material preview. Both materials use full exposure because no
intensity attributes are assigned.
"""
import os
import shutil

import pyvcad as pv
import pyvcad_compilers as pvc
import pyvcad_rendering as viz

materials = pv.default_materials
red_id = materials.id("red")
blue_id = materials.id("blue")

root = pv.RectPrism.FromMinAndMax(
    pv.Vec3(-10.0, -5.0, 0.0),
    pv.Vec3(10.0, 5.0, 4.0),
)

# The fractions choose which vat owns each addressable pixel. They do not set
# exposure brightness directly.
root.set_attribute(
    pv.DefaultAttributes.VOLUME_FRACTIONS,
    pv.VolumeFractionsAttribute(
        [
            ("0.5 - x / 20", red_id),
            ("0.5 + x / 20", blue_id),
        ]
    ),
)

output_dir = os.path.join(os.path.dirname(__file__), "basic_output")
output_zip = output_dir + ".zip"
if os.path.isdir(output_dir):
    shutil.rmtree(output_dir)
if os.path.isfile(output_zip):
    os.remove(output_zip)

compiler = pvc.MultiMaterialVatCompiler(
    root,
    output_dir,
    materials,
    ["red", "blue"],
    layer_thickness=0.1,
    system=pvc.MultiMaterialVatSystem.DUAL,
    output_mode=pvc.MultiMaterialVatOutputMode.ZIP
)


def on_progress(progress):
    print("compile progress: {:.1f}%".format(100.0 * progress))


compiler.set_progress_callback(on_progress)
compiler.compile()
print("resolution (x, y, layers):", compiler.resolution())
print("directory:", output_dir)

viz.Render(root, materials)

Install OpenVCAD, save the companion scripts, and run any of them with Python:

python -m pip install openvcad
python 01_basic_png_stack.py
python 02_two_material_intensity.py
python 03_four_material_gradient.py

The basic example retains a directory containing synchronized Vat A and Vat B stacks and opens an interactive volume-fraction preview.

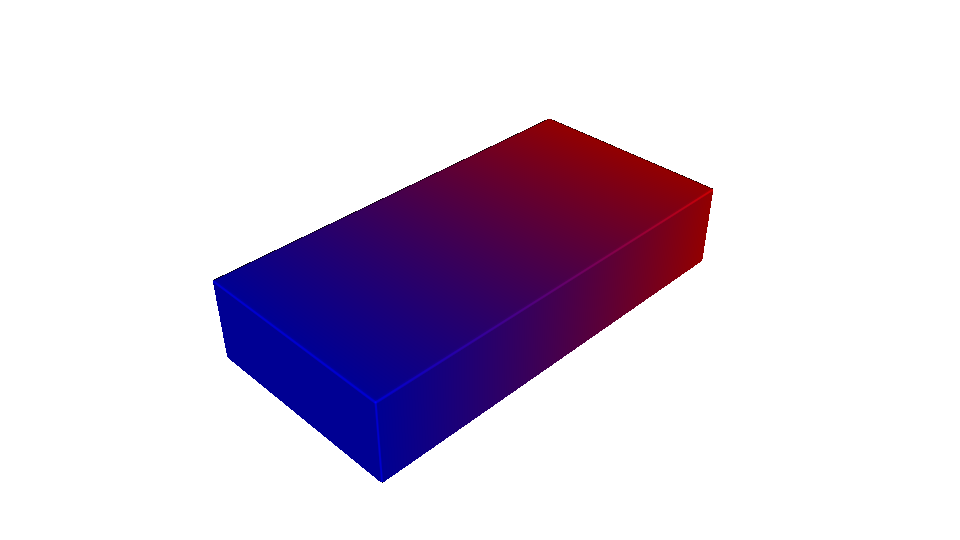

Continuous volume-fraction design

2. Independent intensity for two materials

The next example uses a 20 × 10 × 4 mm prism and assigns both red_intensity and blue_intensity. Red brightens toward positive Y while blue dims, demonstrating that each vat can carry its own spatial exposure field without changing the material probabilities. It retains both the directory stacks and a ZIP archive.

"""
Multi-material VAT — independent two-material intensity
========================================================

Builds a red-to-blue rectangular prism and independently controls the exposure
intensity of both materials. Red brightens toward positive Y while blue dims
in the same direction. The volume fractions still determine which vat owns
each pixel; the intensity attributes only control selected-pixel brightness.
"""
import os
import shutil

import pyvcad as pv
import pyvcad_compilers as pvc
import pyvcad_rendering as viz

materials = pv.default_materials
red_id = materials.id("red")
blue_id = materials.id("blue")

root = pv.RectPrism.FromMinAndMax(
    pv.Vec3(-10.0, -5.0, 0.0),
    pv.Vec3(10.0, 5.0, 4.0),
)
root.set_attribute(
    pv.DefaultAttributes.VOLUME_FRACTIONS,
    pv.VolumeFractionsAttribute(
        [
            ("0.5 - x / 20", red_id),
            ("0.5 + x / 20", blue_id),
        ]
    ),
)

# These named channels are sampled only after their material wins the
# stochastic volume-fraction selection at a pixel.
root.set_attribute("red_intensity", pv.FloatAttribute("0.2 + 0.8 * (y + 5) / 10"))
root.set_attribute("blue_intensity", pv.FloatAttribute("1.0 - 0.8 * (y + 5) / 10"))

output_dir = os.path.join(os.path.dirname(__file__), "intensity_output")
output_zip = output_dir + ".zip"
if os.path.isdir(output_dir):
    shutil.rmtree(output_dir)
if os.path.isfile(output_zip):
    os.remove(output_zip)

compiler = pvc.MultiMaterialVatCompiler(
    root,
    output_dir,
    materials,
    ["red", "blue"],
    layer_thickness=0.1,
    system=pvc.MultiMaterialVatSystem.DUAL,
    output_mode=pvc.MultiMaterialVatOutputMode.DIRECTORY_AND_ZIP,
    random_seed=84,
)


def on_progress(progress):
    print("compile progress: {:.1f}%".format(100.0 * progress))


compiler.set_progress_callback(on_progress)
compiler.compile()
print("resolution (x, y, layers):", compiler.resolution())
print("directory:", output_dir)
print("archive:", compiler.archive_path())

viz.Render(root, materials)

These are the synchronized layer-0000 exposure masks. Their nonblack pixels are mutually exclusive, while their opposing grayscale gradients come from the two independent intensity attributes.

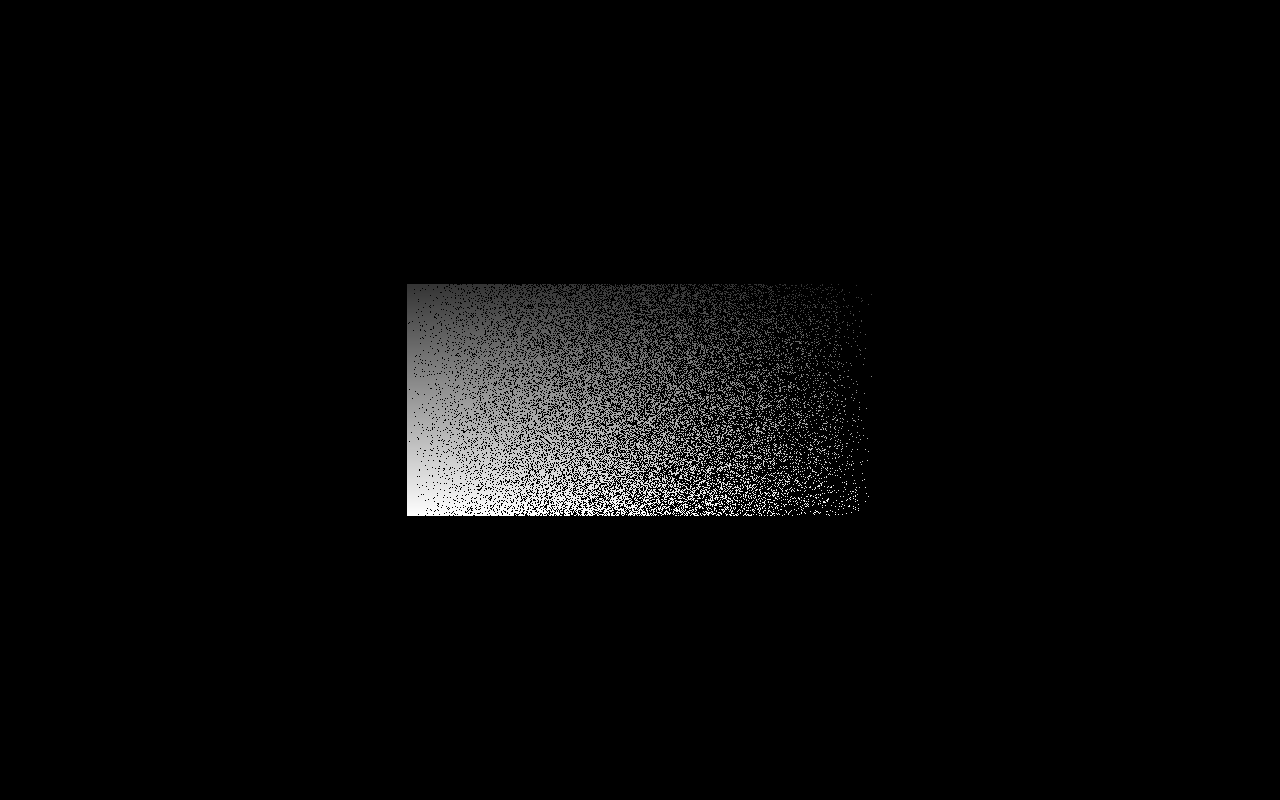

Vat A — red assignment, brightening toward positive Y

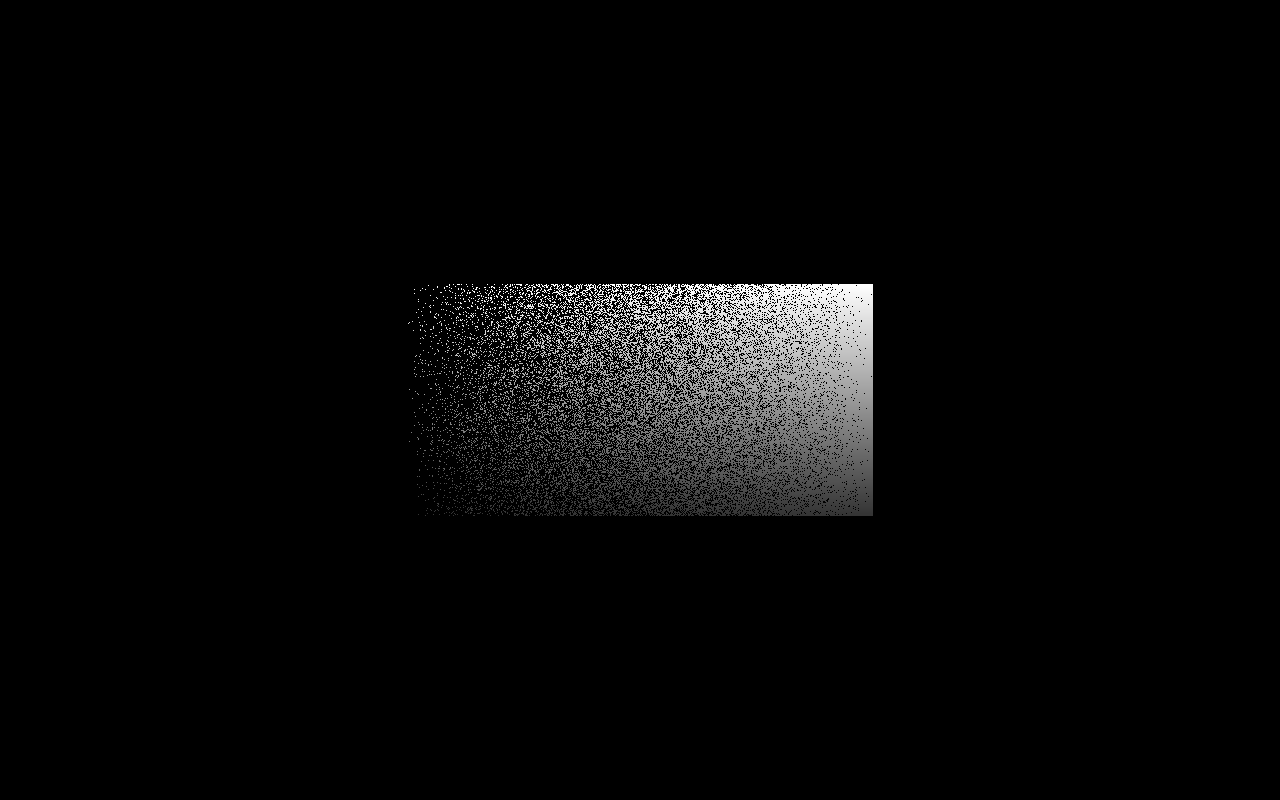

Vat B — blue assignment, dimming toward positive Y

3. Four-material gradient

The quad-vat example assigns red, green, blue, and yellow to the four XY corners of a 20 × 10 × 4 mm prism. Bilinear weights sum to one everywhere, producing smooth two- and four-way transitions. The compiler writes a ZIP containing synchronized Vat A through Vat D stacks.

"""
Multi-material VAT — four-material gradient
============================================

Builds a rectangular prism with red, green, blue, and yellow concentrated at
different XY corners. Bilinear volume-fraction weights create smooth mixtures
between all four corners, which a quad-vat compiler resolves into synchronized
Vat A through Vat D exposure masks.
"""
import os
import shutil

import pyvcad as pv
import pyvcad_compilers as pvc
import pyvcad_rendering as viz

materials = pv.default_materials
red_id = materials.id("red")
green_id = materials.id("green")
blue_id = materials.id("blue")
yellow_id = materials.id("yellow")

root = pv.RectPrism.FromMinAndMax(
    pv.Vec3(-10.0, -5.0, 0.0),
    pv.Vec3(10.0, 5.0, 4.0),
)

# Left/right and bottom/top weights each sum to one. Their products therefore
# form four nonnegative corner weights that also sum to one everywhere.
root.set_attribute(
    pv.DefaultAttributes.VOLUME_FRACTIONS,
    pv.VolumeFractionsAttribute(
        [
            ("((10 - x) / 20) * ((5 - y) / 10)", red_id),
            ("((10 + x) / 20) * ((5 - y) / 10)", green_id),
            ("((10 - x) / 20) * ((5 + y) / 10)", blue_id),
            ("((10 + x) / 20) * ((5 + y) / 10)", yellow_id),
        ]
    ),
)

output_dir = os.path.join(os.path.dirname(__file__), "four_material_output")
output_zip = output_dir + ".zip"
if os.path.isdir(output_dir):
    shutil.rmtree(output_dir)
if os.path.isfile(output_zip):
    os.remove(output_zip)

compiler = pvc.MultiMaterialVatCompiler(
    root,
    output_dir,
    materials,
    ["red", "green", "blue", "yellow"],
    layer_thickness=0.1,
    system=pvc.MultiMaterialVatSystem.QUAD,
    output_mode=pvc.MultiMaterialVatOutputMode.ZIP,
    random_seed=126,
)


def on_progress(progress):
    print("compile progress: {:.1f}%".format(100.0 * progress))


compiler.set_progress_callback(on_progress)
compiler.compile()
print("resolution (x, y, layers):", compiler.resolution())
print("archive:", compiler.archive_path())

viz.Render(root, materials)

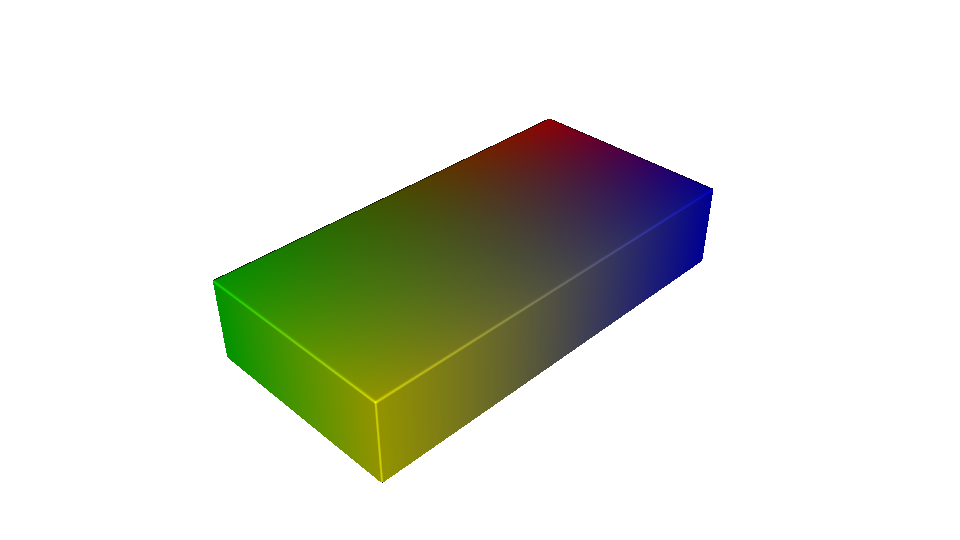

Continuous four-material design

Directory, ZIP, or both

Choose an output mode with MultiMaterialVatOutputMode:

• DIRECTORY retains the per-vat directory tree.

• ZIP creates <output_path>.zip and removes the generated vat directories after archiving.

• DIRECTORY_AND_ZIP retains both forms.

The ZIP contains the same vat_a/ through vat_d/ tree as directory output. Passing an output path ending in .zip is also accepted; the suffix is treated as the archive suffix rather than part of the directory name.

Placement and validation

The compiler samples each pixel at its physical center and each Z layer at its layer center. It centers the design’s bounding box in X and Y, places the bounding-box minimum at build Z zero, and leaves the OpenVCAD tree itself unchanged.

Compilation stops with an error when:

• the design exceeds 55.01 × 34.38 × 150 mm;

• the layer thickness is below 0.01 mm;

• a dual system receives more than two configured materials;

• a quad system receives more than four configured materials;

• an inside sample lacks VOLUME_FRACTIONS;

• a positive fraction references a material that is not assigned to a vat; or

• a fraction or selected intensity is non-finite.

Negative fractions are rejected. Explicit material ID 0 is treated as void and produces black in every vat.

API summary

pvc.MultiMaterialVatCompiler(
    root,
    output_path,
    material_defs,
    vat_material_names,
    layer_thickness=0.05,
    system=pvc.MultiMaterialVatSystem.DUAL,
    output_mode=pvc.MultiMaterialVatOutputMode.DIRECTORY,
    random_seed=0,
)

Use resolution() after compilation for (1280, 800, layer_count), printer_volume() for the build envelope, and archive_path() for the derived ZIP filename.

The compiler performs image generation only. Printer-specific exposure-time calibration, feature erosion or expansion, cleaning parameters, and support generation remain downstream process decisions.
