Importing 3MF beam lattices

OpenVCAD imports lattice geometry written in the 3MF Beam Lattice Extension. ThreeMFBeamLattice reads such a file and rebuilds it as an implicit tree, so the result is an ordinary OpenVCAD node: transform it, combine it with other geometry, hang attributes on it, and compile it like anything else.

Note

OpenVCAD currently imports beam lattice files. Writing them is not supported yet, so this is a one-way path into OpenVCAD rather than a round trip.

This guide assumes you have worked through Getting Started. It covers geometry import only — see Scope and limitations at the end.

Why the extension exists

Additive manufacturing can build lattices that no subtractive process could, and they are now routine in medical implants, lightweighting, energy absorption, and heat exchange. The bottleneck was never the printer — it was the file.

A triangle mesh describes only a surface, so a lattice has to be tessellated strut by strut. Every beam becomes a tube of triangles, every joint becomes a patch where tubes intersect, and the triangle count scales with the number of struts rather than with the complexity of the design. A lattice fine enough to matter mechanically produces a mesh too large to open, let alone edit. nTop cites a variable-thickness diamond lattice that exports as a 3.4 MB 3MF and would be over 3 GB as an STL.

The insight behind the extension is that a beam lattice is not really a surface — it is a graph. The design intent is a set of nodes, the beams connecting them, and a radius at each beam end. That is a few numbers per strut, and the surface can be regenerated from it whenever it is actually needed. So the extension stores exactly that: beams indexed into the mesh’s own vertex list, with optional per-end radii and cap modes, alongside whatever solid triangle geometry the object also carries. The spinal implant sample used later in this guide holds an 11,821-beam lattice and a solid cage body in 262 KB.

Because it rides on the 3MF core format, a beam lattice travels with units, build transforms, materials, and component structure intact — the things STL throws away.

Where these files come from

nTop is the tool most likely to have produced a beam lattice 3MF you are handed; it has exported them since Platform 2.14, writing the solid mesh and the lattice into one file. Materialise Magics, Netfabb, and other AM preparation tools read them. Note that the extension describes beams and balls only: face lattices and TPMS surfaces such as gyroids cannot travel through it, from nTop or from anywhere else. OpenVCAD models those natively — see Metamaterials — they just have no representation in this file format.

Bringing such a file into OpenVCAD converts that graph into signed-distance geometry, which is where it becomes editable again: intersect it with a body, grade a material through it, or feed it to any OpenVCAD compiler.

Import a file

import pyvcad as pv
import pyvcad_rendering as viz

root = pv.ThreeMFBeamLattice("examples/data/beam_lattice/pyramid.3mf")

viz.Render(root)

That is the whole import. Every build item in the file is resolved through its component graph, transforms are baked in, coordinates are converted to millimetres, and each object becomes part of one tree.

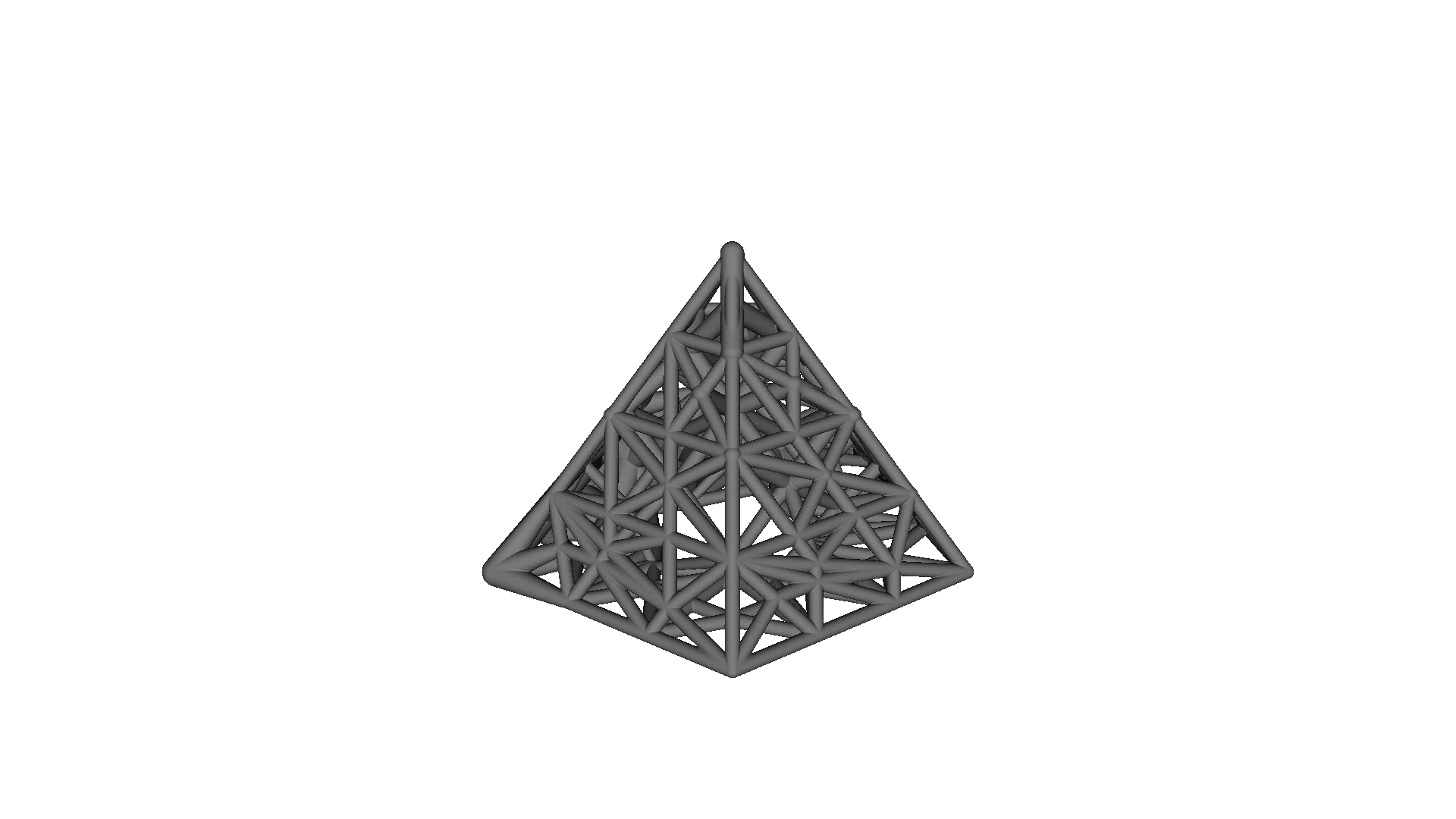

The pyramid sample: a lattice-only object of 391 beams, 156 of them tapered

The three official 3MF Consortium samples ship with OpenVCAD under examples/data/beam_lattice/, and between them they exercise most of the extension:

File	Beams	What it exercises
pyramid.3mf	391	A lattice-only object with no triangles, and beams that taper from one radius to another
variable_voronoi.3mf	1291	Clipping against a separate cube object, and beams that inherit the lattice radius
spinal_implant.3mf	11821	A solid mesh object and a lattice object built together as one part

Inspect what the file declared

Import does not hide the source data. Every object carries the settings it was read with, which is the quickest way to understand an unfamiliar file:

lattice = pv.ThreeMFBeamLattice("examples/data/beam_lattice/variable_voronoi.3mf")

imported = lattice.imported_objects[0]
print(imported.name)              # Thick_lattice
print(len(imported.beams))        # 1291
print(imported.radius)            # 0.5
print(imported.min_length)        # 0.005
print(imported.cap)               # CapMode.Sphere
print(imported.clip_mode)         # ClipMode.Inside

Use pv.read_3mf_beam_lattice(path) when you only want to look at a file without building geometry for it. It returns the same object records, and skips the cost of constructing the tree:

scene = pv.read_3mf_beam_lattice("examples/data/beam_lattice/spinal_implant.3mf")

for obj in scene.objects:
    kind = f"{len(obj.beams)} beams" if obj.has_lattice else f"{len(obj.triangles)} triangles"
    print(obj.object_id, obj.name, kind)

1 ALIF 5672 triangles
2 Thick_lattice 11821 beams

What a beam actually is

A beam is the conical frustum between two vertices, with an independent radius at each end, closed off by a cap mode. Strut is that shape:

beam = pv.Strut(
    pv.Vec3(0.0, 0.0, 0.0),   # start
    pv.Vec3(0.0, 0.0, 20.0),  # end
    2.0,                       # radius at the start
    5.0,                       # radius at the end
    pv.CapMode.HemiSphere,     # cap at the start
    pv.CapMode.HemiSphere,     # cap at the end
)

The single-radius constructor you already know, pv.Strut(start, end, radius), is the same shape with matching radii and sphere caps — an ordinary capsule. Nothing about existing lattice code changes.

Cap modes

The three cap modes decide what closes each end:

Mode	Geometry
CapMode.Butt	Flat, leaving a bare cone or cylinder
CapMode.Sphere	A full sphere of the end radius, which can bulge past a narrowing lateral surface
CapMode.HemiSphere	Only the outward half of that sphere, flush with the end

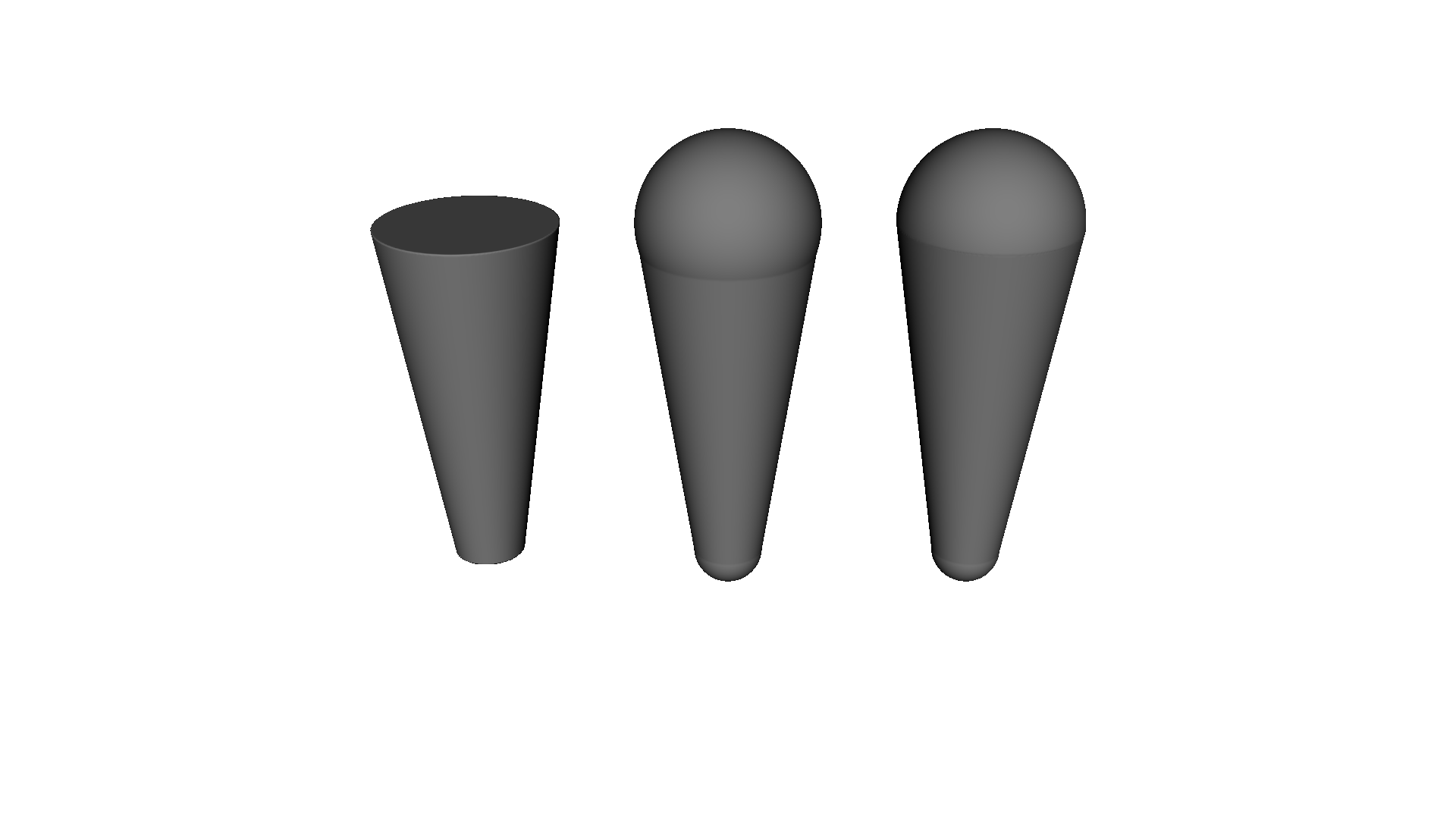

Left to right: Butt, Sphere, HemiSphere. Note the neck where the sphere cap bulges past the cone rim

On a cylinder, where both radii match, sphere and hemisphere describe the same solid — the specification says so, and OpenVCAD collapses the two so the distance field stays exact. The difference only appears at the wider end of a cone. A beam may combine two different modes, one per end.

Runnable version: examples/lattices/beam_lattice/1_beam_cap_modes.py.

Authoring a lattice directly

BeamLattice is the node the importer builds, and it is just as usable on its own. It takes a shared vertex list plus Beam entries that index into it, which is far more compact than one Strut per edge once a lattice has hundreds of members. Internally every beam and ball becomes a child of an accelerated union, so large lattices stay cheap to sample.

vertices = [pv.Vec3(0.0, 0.0, 0.0), pv.Vec3(10.0, 0.0, 0.0), pv.Vec3(0.0, 10.0, 0.0)]

beams = [
    pv.Beam(0, 1),                   # inherits the lattice radius
    pv.Beam(0, 2, r1=1.0, r2=2.0),   # tapers from 1 mm to 2 mm
]

lattice = pv.BeamLattice(
    vertices,
    beams,
    2.0,                             # default beam radius
    min_length=0.01,
    cap=pv.CapMode.Sphere,
    ball_mode=pv.BallMode.All,
    ball_radius=2.6,
)
lattice.prepare(pv.Vec3(0.25, 0.25, 0.25), 1.0)

Radius resolution

Anything a Beam leaves unset falls back to the lattice defaults, in the order the specification defines:

Given	Result
r1 and r2	A conical frustum between the two radii
r1 only	A cylinder of radius r1
Neither	A cylinder of the lattice radius

Cap modes resolve the same way: cap1 and cap2 override the lattice cap for that one end.

This matters when reading real files. 813 of the variable voronoi sample’s 1291 beams declare no radius at all and inherit the lattice default of 0.5 mm; the rest range up to 2.2 mm, which is what makes that lattice variable.

Balls and minimum length

Balls are spheres centred on vertices, and ball_mode decides where they go:

Mode	Behaviour
BallMode.None_	No balls
BallMode.Mixed	Balls only where an explicit pv.Ball(vertex, radius) entry exists
BallMode.All	A ball on every vertex that terminates a beam, using its explicit radius where one was given and ball_radius otherwise

A ball on a vertex that no beam terminates is ignored, as the specification requires. min_length drops beams shorter than the given length; check active_beam_count and active_ball_count to see what survived.

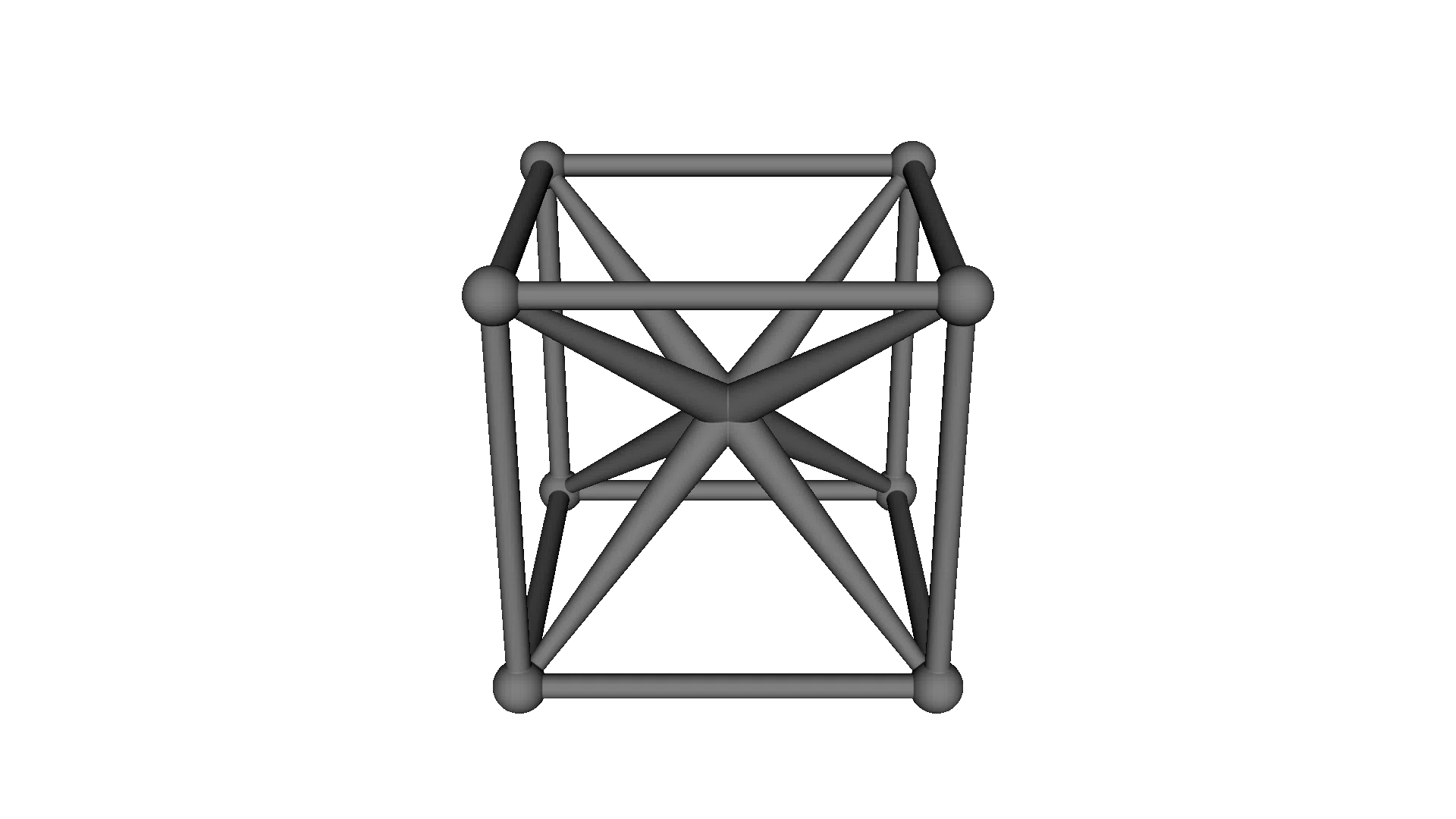

A hand-authored rod-and-ball lattice: uniform cube edges, body diagonals tapering from a thick hub, and BallMode.All

Runnable version: examples/lattices/beam_lattice/2_beam_lattice_by_hand.py.

Clipping

A lattice may declare a clipping mode and a separate mesh object to clip against. OpenVCAD realises those modes as ordinary implicit CSG — the clipping mesh is loaded as a Mesh node and intersected with, or subtracted from, the lattice:

Mode	OpenVCAD equivalent
ClipMode.None_	The lattice, untouched
ClipMode.Inside	pv.Intersection(lattice, clipping_mesh)
ClipMode.Outside	pv.Difference(lattice, clipping_mesh)

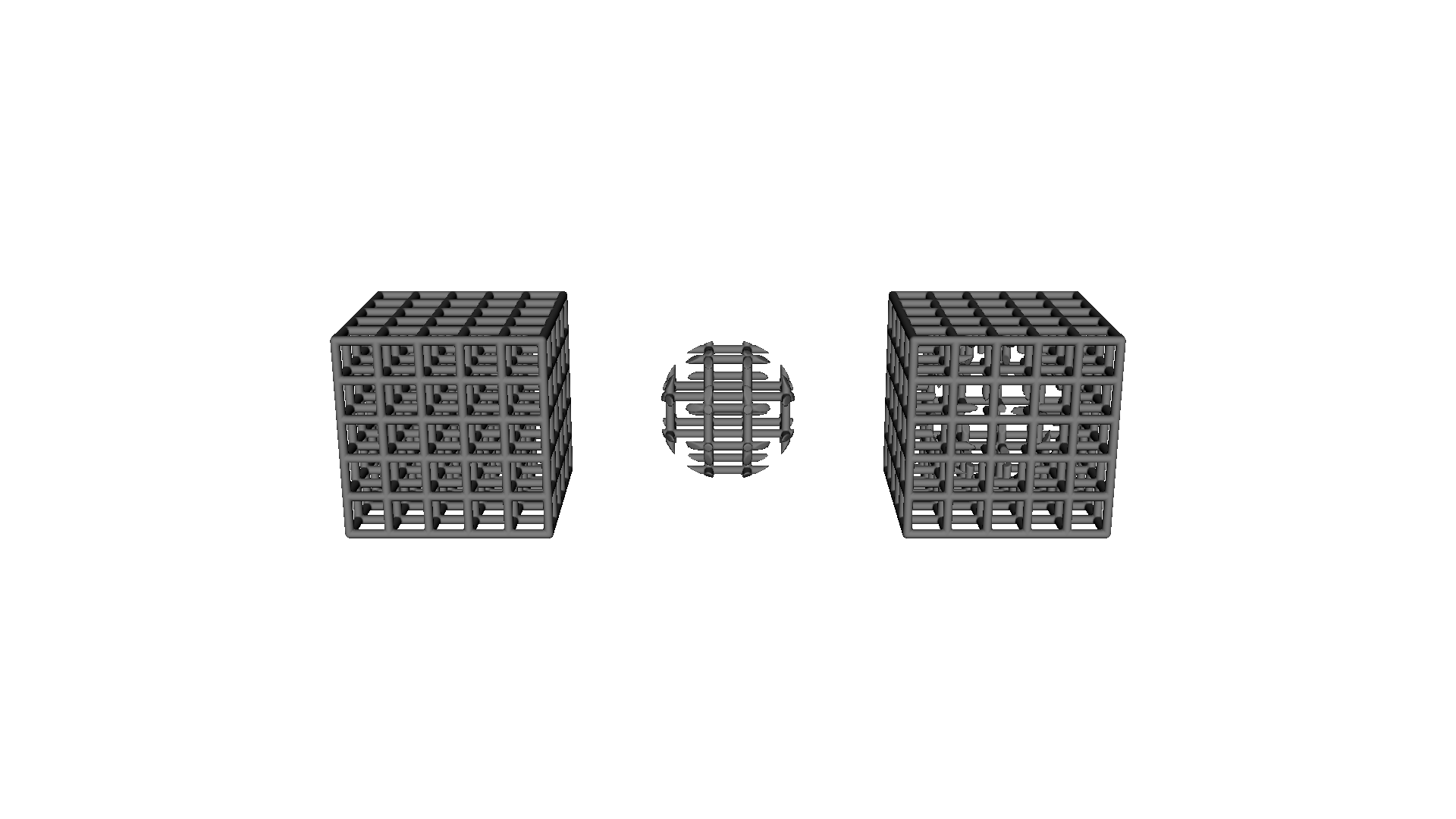

Left to right: None_, Inside, and Outside, all against the same sphere

Because the clip is CSG rather than a pre-trimmed mesh, the result stays editable: swap the clipping volume for any other OpenVCAD node, or animate it.

The importer applies whatever clip the file declares. The variable voronoi sample clips to the inside of its 100 mm cube. Beams that terminate on a cube face would otherwise bulge a full radius past it, and the clip trims that away. Pass apply_clipping=False to import the raw beams instead, which makes the difference easy to measure:

point = (-50.2, -34.50148, 56.55310)   # 0.2 mm outside the cube's -X face

clipped = pv.ThreeMFBeamLattice("examples/data/beam_lattice/variable_voronoi.3mf",
                                mesh_voxel_size=0.25)
raw = pv.ThreeMFBeamLattice("examples/data/beam_lattice/variable_voronoi.3mf",
                            apply_clipping=False, mesh_voxel_size=0.25)

clipped.prepare(pv.Vec3(0.25, 0.25, 0.25), 1.0)
raw.prepare(pv.Vec3(0.25, 0.25, 0.25), 1.0)

print(raw.evaluate(*point))       # -0.3: inside a beam's overhanging cap
print(clipped.evaluate(*point))   #  0.2: the clip removed it

mesh_voxel_size sets how finely the clipping mesh is voxelized into a signed distance field. Match it to the smallest feature the clip has to resolve; leaving it unset uses OpenVCAD’s usual heuristic for the mesh’s size.

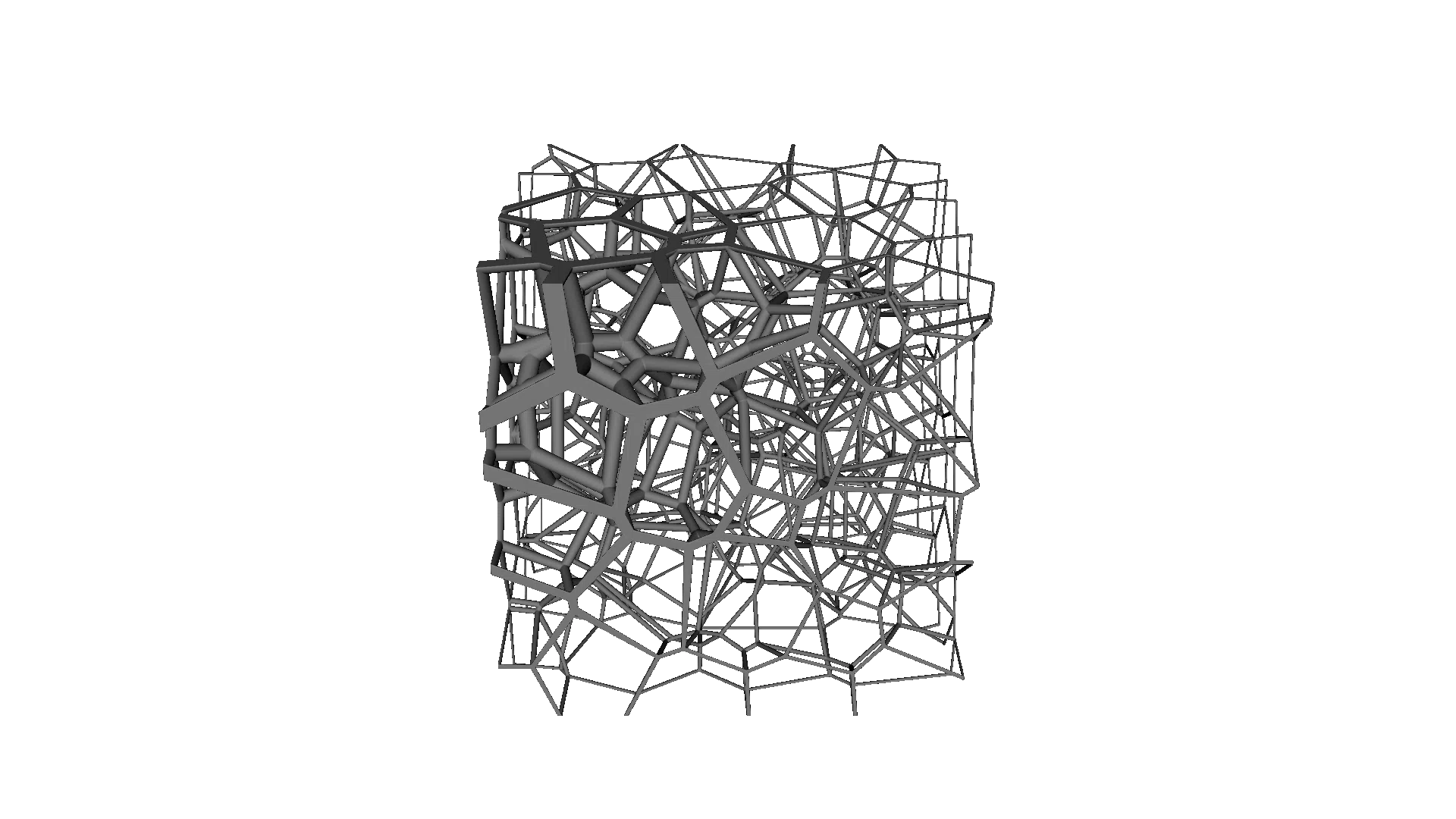

The variable voronoi sample, clipped to its cube on import

Runnable versions: examples/lattices/beam_lattice/4_import_3mf_clipped_voronoi.py and examples/lattices/beam_lattice/6_clipping_modes.py.

Builds that mix solids and lattices

The extension unifies a lattice with the triangle mesh of the same object, and a build may contain several objects. The spinal implant sample does both: object 1 is the solid ALIF cage body, object 2 is an 11,821-beam lattice filling its windows. Importing the file brings in the whole build:

part = pv.ThreeMFBeamLattice("examples/data/beam_lattice/spinal_implant.3mf",
                             mesh_voxel_size=0.2)

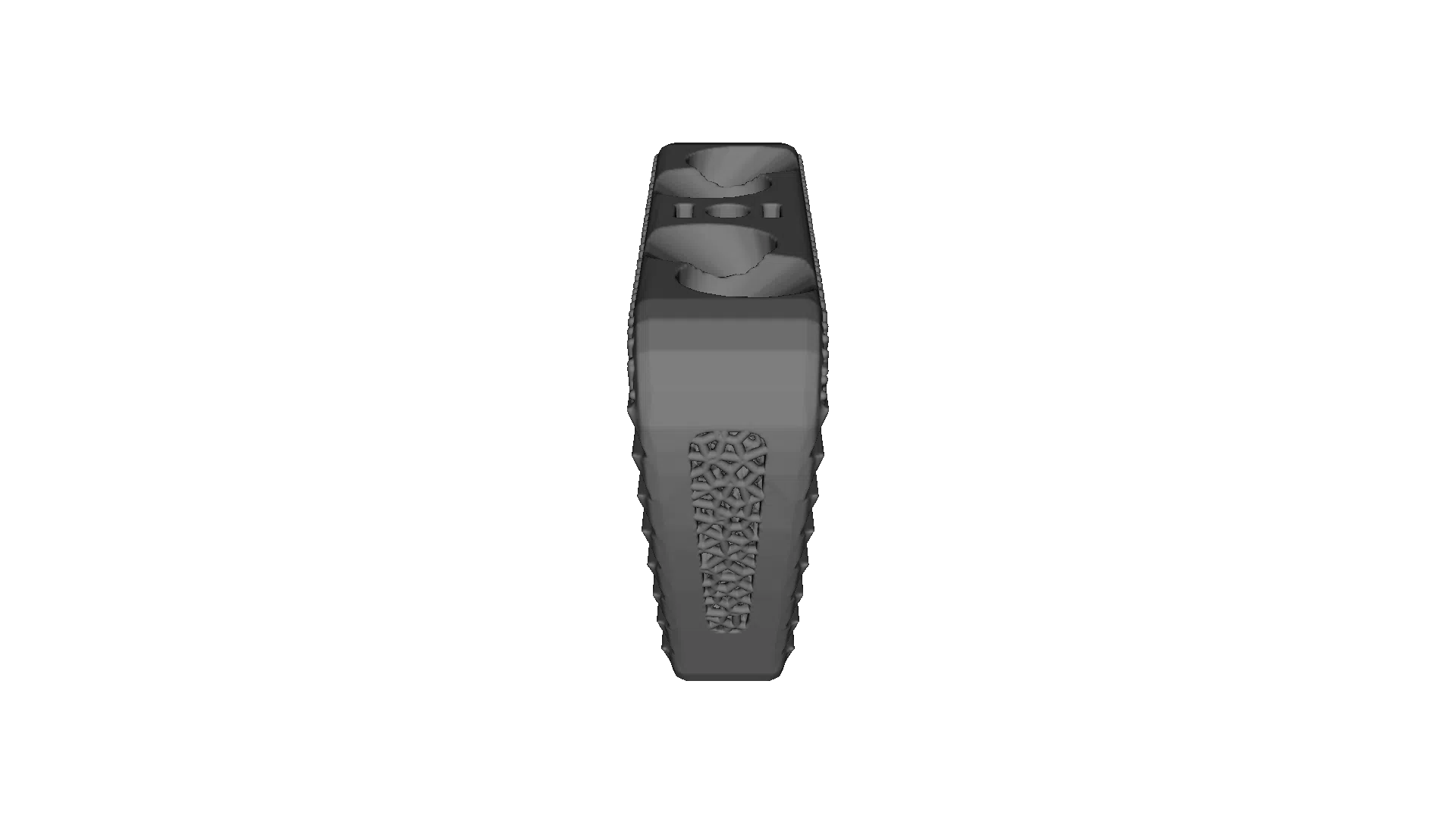

The spinal implant sample: a solid cage body unioned with an 11,821-beam lattice

Pass object_id to bring in one object on its own. That is how you give the lattice and the solid body different materials:

cage = pv.ThreeMFBeamLattice(path, object_id=1, mesh_voxel_size=0.2)
infill = pv.ThreeMFBeamLattice(path, object_id=2)

cage.set_attribute(pv.DefaultAttributes.COLOR_RGBA,
                   pv.Vec4Attribute("0.75", "0.75", "0.78", "1.0"))
infill.set_attribute(pv.DefaultAttributes.COLOR_RGBA,
                     pv.Vec4Attribute("0.20", "0.55", "0.85", "1.0"))

root = pv.Union(cage, infill)

Set include_triangle_mesh=False to import a lattice object without the triangle shell of the same object. Applying it to an object that is only a triangle mesh leaves nothing to build, and the import says so.

Runnable version: examples/lattices/beam_lattice/5_import_3mf_spinal_implant.py.

Python API

Name	Purpose
pv.Strut(start, end, radius)	A capsule, unchanged from earlier releases
pv.Strut(start, end, r1, r2, cap1, cap2)	A conical frustum with per-end radii and cap modes
pv.CapMode	Sphere, HemiSphere, Butt
pv.Beam(v1, v2, r1, r2, cap1, cap2)	One beam of a BeamLattice; unset fields inherit the lattice defaults
pv.Ball(vertex, radius)	One ball of a BeamLattice
pv.BallMode	None_, Mixed, All
pv.BeamLattice(vertices, beams, radius, ...)	A beam-and-ball lattice over a shared vertex list
pv.ClipMode	None_, Inside, Outside
pv.read_3mf_beam_lattice(path)	Reads a file’s contents without building geometry
pv.ThreeMFBeamLattice(path, ...)	Imports a beam lattice 3MF as an implicit tree

ThreeMFBeamLattice takes object_id, include_triangle_mesh, apply_clipping, use_representation_mesh, and mesh_voxel_size. Its bounding box is valid before prepare(), because it is derived from the imported data rather than from its child meshes.

Scope and limitations

• Geometry only. Per-beam and per-ball property references (pid, p1, p2) are not read, so imported lattices carry no material or colour from the file. Assign OpenVCAD attributes to the imported node instead.

• Beam sets are not imported. <beamset> elements group beams for an editing application’s own purposes and do not affect geometry, which the specification lets a consumer ignore.

• Representation meshes are not used by default. A representation mesh is a display stand-in that the specification forbids using to manufacture a part. use_representation_mesh=True substitutes it for the lattice when you want a cheap preview of a very large file; do not compile that result.

• Export is not supported. OpenVCAD reads beam lattice files but does not yet write them.

• Non-uniform build transforms scale radii approximately. A beam radius is a single number, so a transform that scales the axes differently is applied to radii as the equivalent uniform scale. Rigid and uniformly scaled transforms, which is what real files use, are exact.

Both the current clippingmode attribute and the older clipping spelling used by the published samples are read.
