Importing textured solids

TexturedMesh imports a 3MF or OBJ model as both printable geometry and an intrinsic COLOR_RGBA field. It extends each surface color inward by a configurable physical depth, then fills the remaining interior with an opaque core color. The result can be rendered, clipped, combined with other OpenVCAD nodes, or compiled as volumetric color.

Use this node when the source file already contains its intended appearance. Use the ordinary Mesh node when only the geometry matters.

Load a textured 3MF

3MF is the simplest interchange format for this workflow because its units, textures, colors, and component transforms are stored together:

import pyvcad as pv
import pyvcad_rendering as viz

root = pv.TexturedMesh(
    "examples/data/textured_models/3mf_consortium/sphere_logo.3mf",
    color_depth=1.5,
    core_color=pv.Vec3(1.0, 1.0, 1.0),
    center=True,
)

viz.Render(root)

Set the renderer’s visualized attribute to color_rgba to see the imported color. The packaged sphere uses a PNG texture inside its 3MF container.

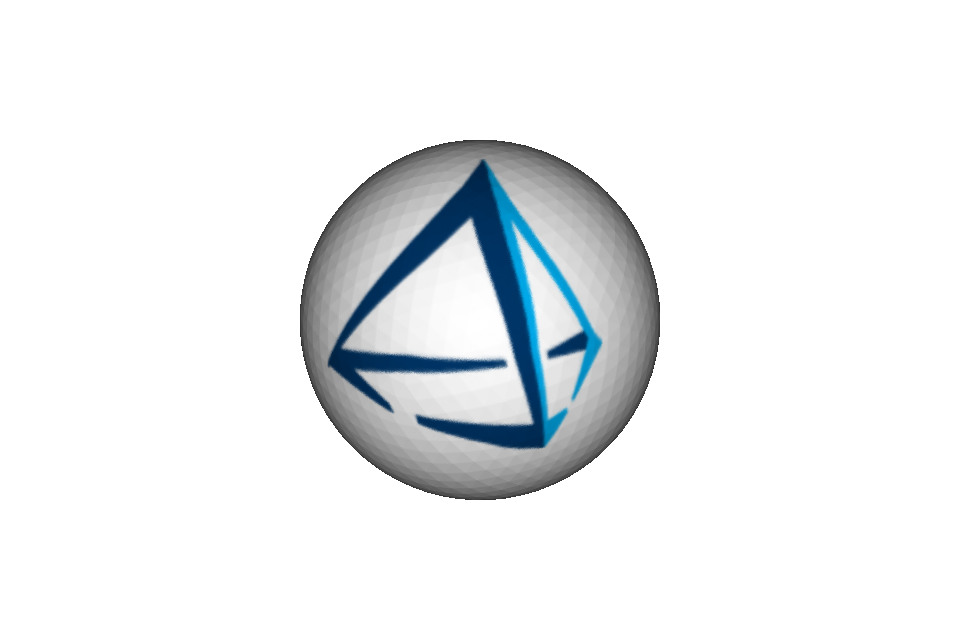

PNG-textured 3MF, rotated so the surface logo faces the camera

3MF model units are converted to millimetres automatically. TexturedMesh supports build items, component transforms, base-material colors, color groups, texture 2D groups, PNG and JPEG images, declared addressing modes, and nearest or filtered texture sampling. Composite and multi-properties are rejected instead of being silently reduced to a single color.

Load OBJ, MTL, and image files

OBJ has no standard physical unit, so set obj_unit_scale to the number of millimetres represented by one source coordinate unit. Keep the OBJ, MTL, and referenced image files together with their relative paths unchanged:

bison = pv.TexturedMesh(
    "examples/data/textured_models/bison_buffalo/Bison_buffalo.obj",
    color_depth=2.0,
    core_color=pv.Vec3(0.92, 0.84, 0.70),
    center=True,
    obj_unit_scale=0.35,
    override_voxel_size=0.3,
    disable_validation=True,
)

The OBJ importer applies scene transforms and combines UV textures, vertex colors, and diffuse material color when they are present. The bison takes its appearance from material_0.png; the dragon below has no texture coordinates and therefore takes its green color from the MTL diffuse material.

The two supplied scan/export meshes contain a very small number of non-manifold edges, so these examples explicitly use disable_validation=True. Leave validation enabled for normal inputs. Disabling it permits import but does not repair topology, and severely defective meshes can still produce an incorrect signed distance field.

Inspect the colored shell and core

color_depth is measured inward from the closest point on the original surface. A sample less than that distance below the surface receives the surface texture or material color. A deeper sample receives core_color. The default is a 1 mm colored shell over an opaque white core.

The headless renders below enable the renderer’s clipping plane at each animal’s anatomical midline. The plane is vertical in the animal’s standing direction: X=0 for the bison and Z=0 for the dragon. Each camera looks squarely at the resulting side section. This exposes the imported shell and contrasting core for inspection without adding a boolean operation or otherwise changing the model tree. Interactive rendering and exported compiler output remain the complete animal unless you explicitly change the geometry yourself.

Drag each slider to compare the complete exterior with the camera-matched midline section.

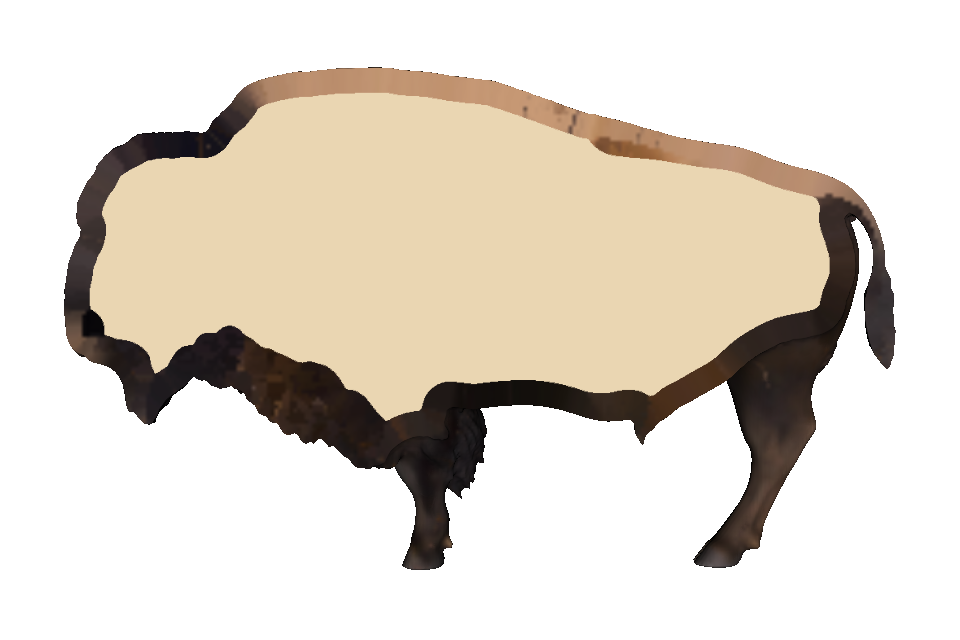

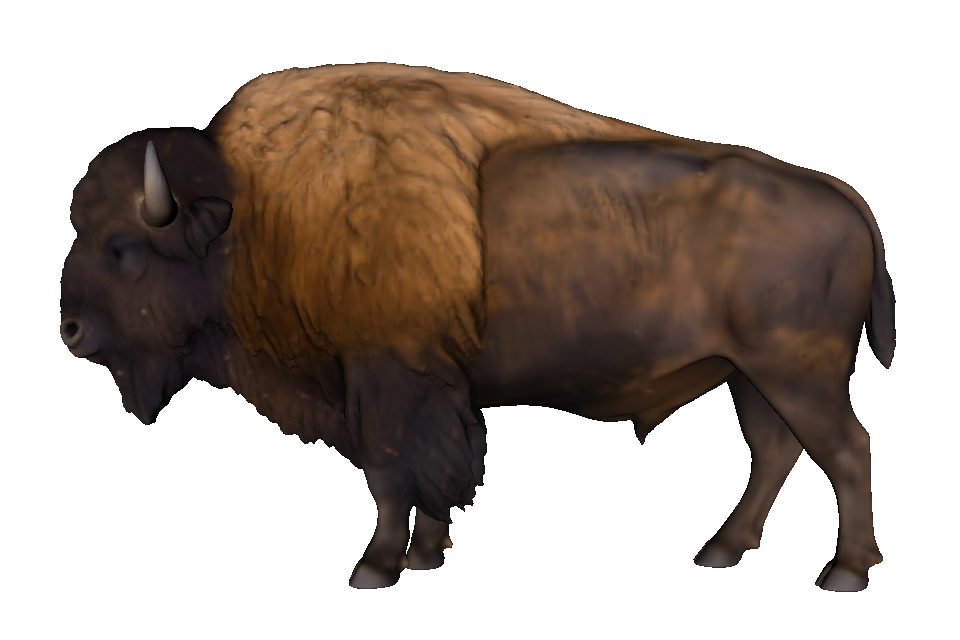

Bison texture and interior

Complete exterior Clipped interior

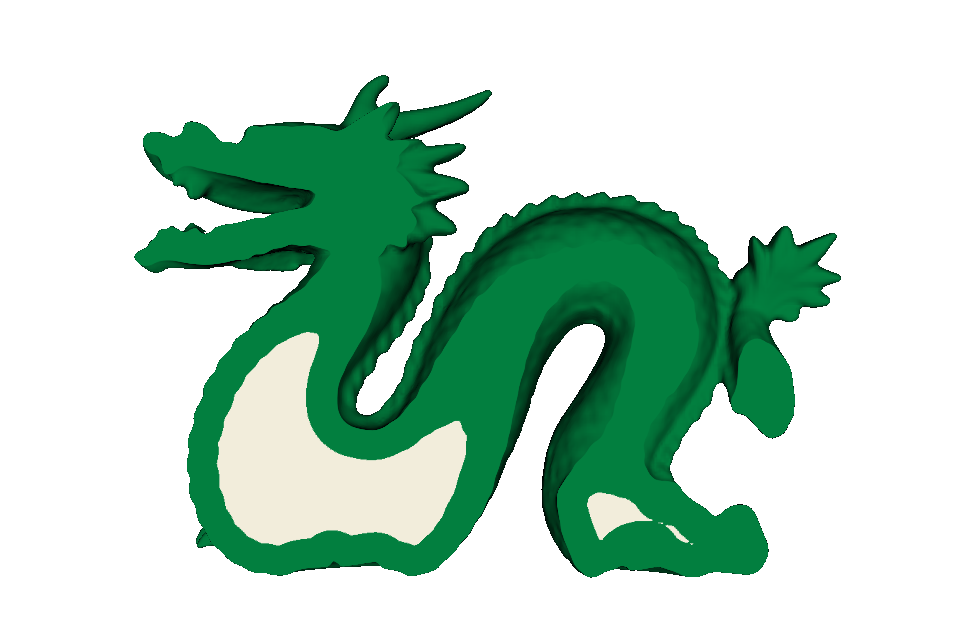

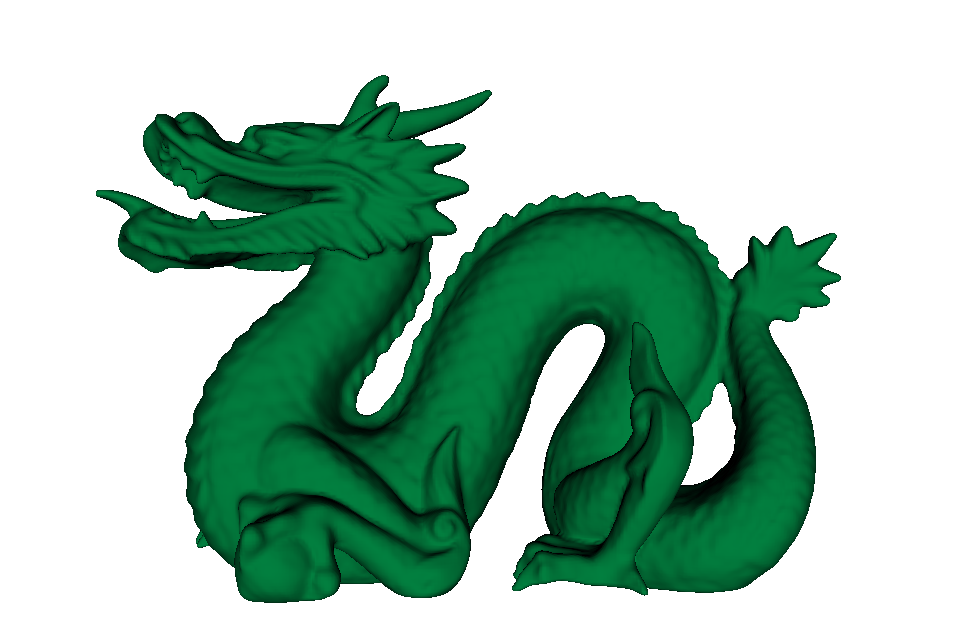

Dragon material color and interior

Complete exterior Clipped interior

Choose the colored depth from the print process rather than the source image resolution. A larger value puts more colored material below the surface, but also increases prepared memory. The source image is mipmapped during preparation so texture detail is filtered for the selected OpenVCAD voxel size.

Other supported color encodings

The same node also handles colors attached directly to mesh faces or vertices. No texture image is needed in either case.

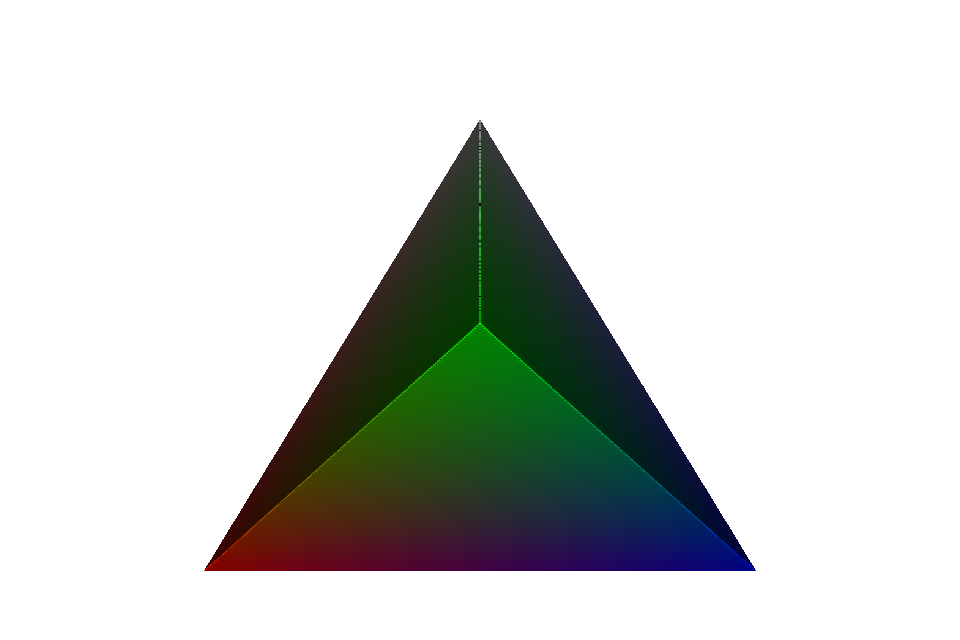

Interpolated 3MF vertex colors

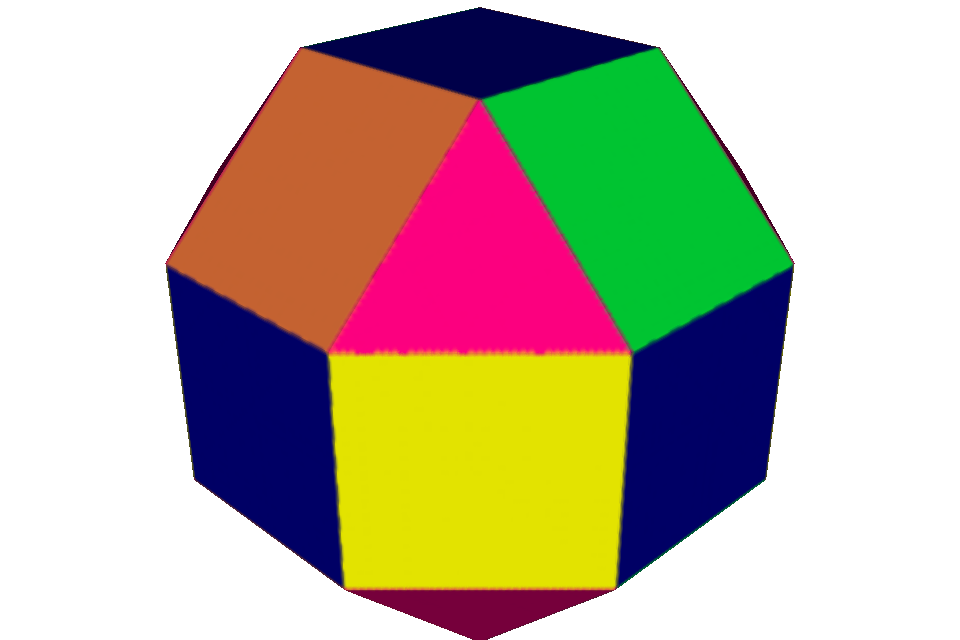

Discrete 3MF face colors

Constructor reference

pv.TexturedMesh(
    path,
    color_depth=1.0,
    core_color=pv.Vec3(1.0, 1.0, 1.0),
    fallback_color=None,
    center=False,
    obj_unit_scale=1.0,
    override_voxel_size=None,
    disable_validation=False,
)

Parameter	Meaning
path	A .3mf or .obj file
color_depth	Inward colored-shell depth in millimetres; must be positive
core_color	Opaque RGB color below the colored shell, with channels from 0 to 1
fallback_color	Optional RGB color for triangles with no imported appearance
center	Move the resolved model’s bounding-box centre to the origin
obj_unit_scale	Millimetres per OBJ coordinate unit; ignored for 3MF
override_voxel_size	Optional preparation resolution in millimetres
disable_validation	Skip closed-manifold validation for a known imperfect input; defaults to False

By default, geometry must be closed, manifold, and consistently oriented. Missing appearance is an error unless fallback_color is supplied. Texture alpha is deliberately ignored and the emitted COLOR_RGBA alpha is always 1; ordinary image alpha does not define a printable translucent material.

As with every OpenVCAD node, call prepare() before direct sample(), evaluate(), or bounding_box() calls. viz.Render and the compilers prepare the tree for their own resolution.

Compile the result for color inkjet printing

TexturedMesh produces the opaque sRGBA field expected by the Color Inkjet Compiler. That guide explains the printer profile, ICC conversion, export mode, and PNG slice-stack workflow. Each companion example also includes an EXPORT_INKJET_SLICES boolean toggle for trying the same node tree with ColorInkjetCompiler.

Packaged examples and inputs

The runnable examples are in examples/geometry/textured_mesh/:

• 01_3mf_texture.py loads a packaged PNG-textured 3MF.

• 02_bison_texture.py imports a complete OBJ/MTL/PNG textured solid.

• 03_dragon_material_color.py imports a complete solid with an MTL diffuse color.

• 04_3mf_vertex_colors.py loads interpolated 3MF vertex colors.

• 05_3mf_face_colors.py fixes preparation resolution for per-face 3MF colors.

The 3MF inputs come from the 3MF Consortium samples under the BSD 2-Clause License. The bison and dragon folders were supplied for these examples without separate provenance or license files; check redistribution rights before publishing them outside this repository. Exact included files and available notices are listed in examples/data/textured_models/README.md.
